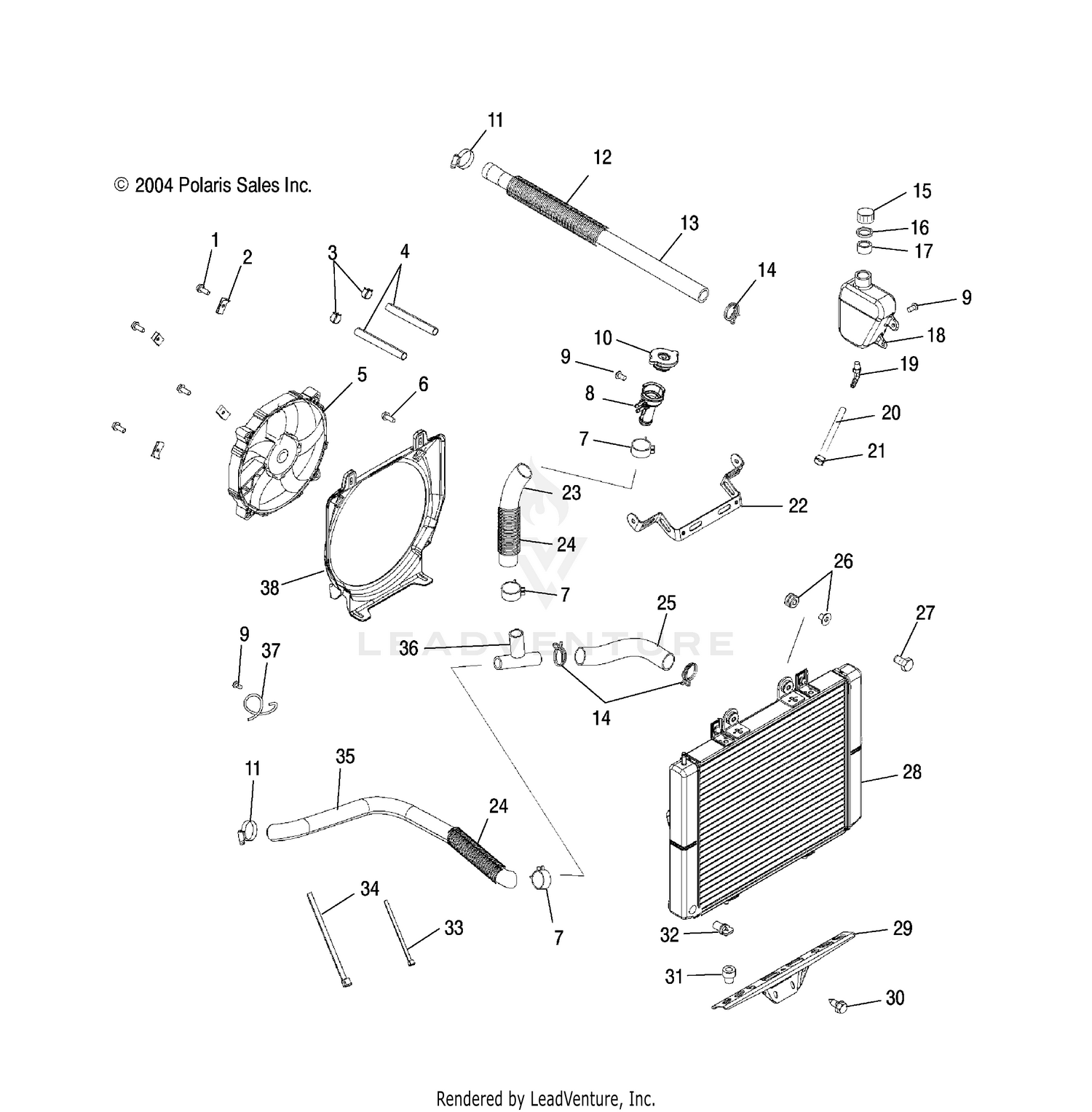

Cooling System - A05mh68ap (4999609960b01) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Bolt
7517975
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
U-Clip
7547197
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUEL LINE,1/4 ID(600 CM.)
8450040
Superseded by 8450040-600
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Asm., Fan
2410413
|
$314.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw w/Washer
7547220
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Clamp
7081047
|
|||
|
Unavailable |
|||
|
#8
Filler, Neck
5435196
|
$15.39 | ||
|
Unavailable |
|||
|
#9
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, PRESSURE
1240044
Superseded by 1240508
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Clamp, Hose
7081174
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Guard, Hose, 9 Inch
5521597
|
|||
|
Unavailable |
|||
|
#13
Hose, Engine, Upper
5412391
Superseded by 5413672
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Clamp
7080826
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TANK-SURGE
5431673
Superseded by 5436936
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Fitting, 90 Degree
7052065
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Line, Fuel
8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Bracket, Radiator Mount, Upper
5246656
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Hose
5412311
Superseded by 5413671
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Guard, Hose, 6.75 Inch
5521644
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Hose, Lower Radiator
5412392
Superseded by 5413673
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Asm., Grommet and Insert
5411975
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
ASM., RADIATOR
1240190
Superseded by 1240521
|
$539.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Bracket, Radiator, Lower, Black
5245773-067
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Valve, Drain
7052296
|
|||
|
Unavailable |
|||
|
#33
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Hose, Engine, Lower
5412585
Superseded by 5413674
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
T-Connector
7052342
Superseded by 7052397
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Retainer, Hose
7042089
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#38
Shroud, Fan
5434853
Superseded by 5437845
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
