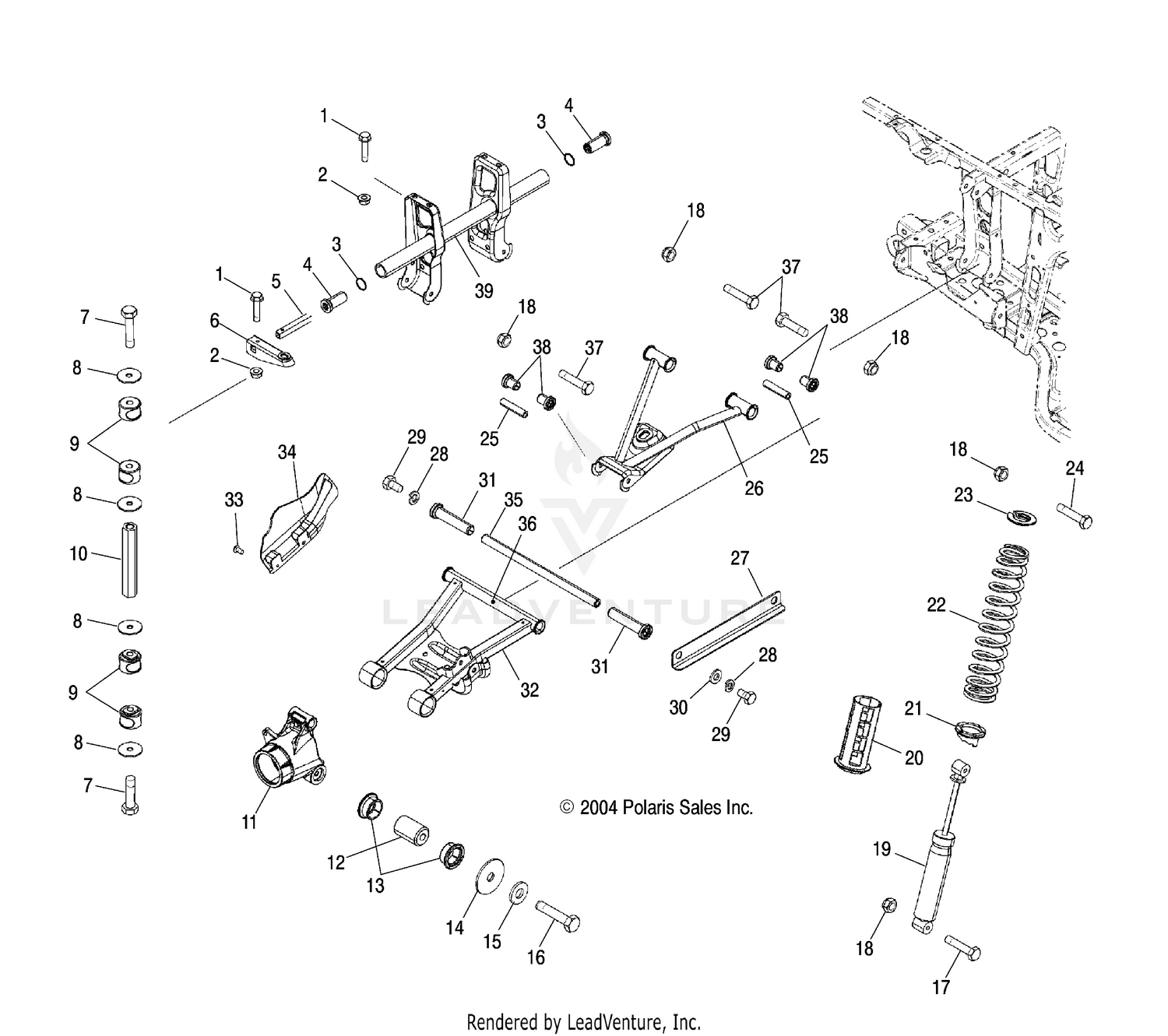

Suspension, Rear - A05mh68ap (4999609960c13) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Bolt, Flange
7518341
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Washer
7555939
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSHING, STABILIZER TUBE, BLACK
5434549
Superseded by 5438901
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAR, STABILIZER TUBE, BLACK
5334114-067
Superseded by 5334114-329
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM, STABILIZER BAR, BLACK
1580107-067
Superseded by 1543119-067
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Screw
7517231
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Washer
7555761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bushing, Stabilizer, Link
5432598
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bushing, Stabilizer, Link
5435772
|
|||
|
Unavailable |
|||
|
#10
Rod, Linkage, Stabilizer
5020827
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Carrier, Wheel Bearing
5134206
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Bushing, Bearing Carrier
5631142
Superseded by 5632291
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSHING, CONTROL, LOWER, BLACK
5434550
Superseded by 5438902
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Washer, Flat
7555740
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Washer, Lock
7552614
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bolt
7517873
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Screw
7515415
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Nut, Nylok
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Shock, Rear
7043055
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Sleeve, Shock Protector
5433551
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Cam, Adjusting, Spring
5631014
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Spring, Compression, Black
7041880-067
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RETAINER-SPRING,STEEL
5630885
Superseded by 5251753
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Screw
7515433
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Shaft, A-Arm, Short
5020826
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Arm, Control, Upper, Black, LH
1014320-067
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Arm, Control, Upper, Black, RH
1014321-067
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Arm, Control, Upper, Black, LH
1014868-067
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Arm, Control, Upper, Black, RH
1014869-067
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Strap, Black
5245140-067
|
|||
|
Unavailable |
|||
|
#28
Washer, Spring Lock
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Screw
7512492
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Washer, .105
7555832
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Bushing, A-Arm, Long
5434551
Superseded by 5436973
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
Control, Lower, Black, LH
1015117-067
Superseded by 1015888-067
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Control, Lower, Black, RH
1015118-067
Superseded by 1015889-067
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Shield, CV, Rear, LH
5434890-1038
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Shield, CV, Rear, RH
5434891-1038
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Shaft, A-Arm
5133806
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Fitting, Lub
7080433
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
Bolt
7515472
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BUSHING, A-ARM., SHORT, BLACK
5434548
Superseded by 5439270
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Support, Stabilizer, Black
1541801-067
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
