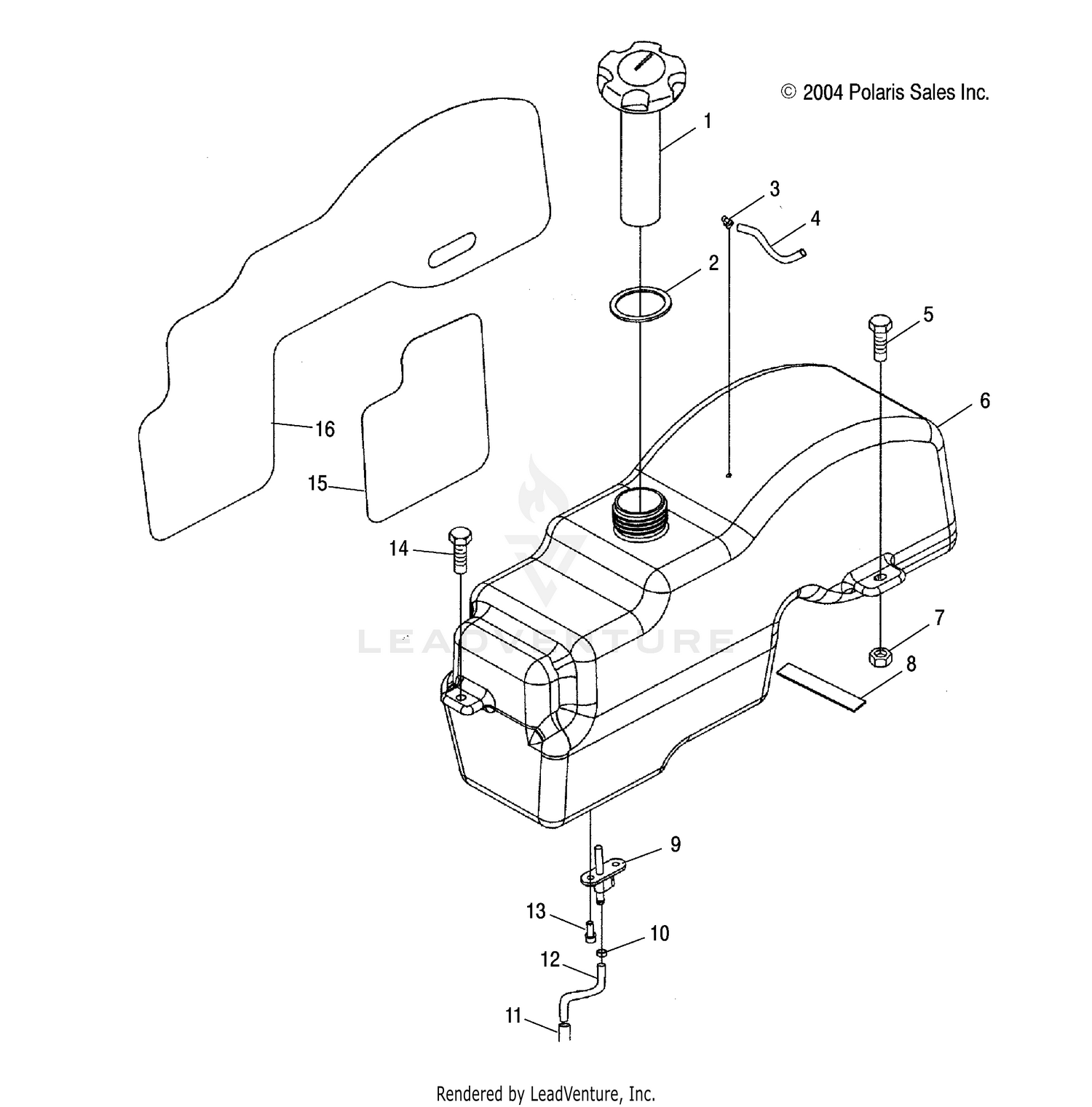

Fuel Tank, Reserve - A05mh68ap (4999609960a13) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL GAUGE CAP
2873626
Superseded by 2871442
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Gasket
5812123
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Vent, Tank
5431053
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Line, Oil
8450061-600
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Screw
7515307
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Asm., Reserve Fuel Tank
2520458
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PAD-BATTERY
5810290
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Fitting, Fuel, Single Outlet
7052363
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Conduit
8360031-145
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Hose, Fuel
8450103
Superseded by 8450117-250
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
7515136
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Screw
7517230
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Foil, Gas Tank, Reserve
5812515
|
|||
|
Unavailable |
|||
|
#16
Foil, Gas Tank, Reserve
5812750
|
|||
|
Unavailable |
|||
