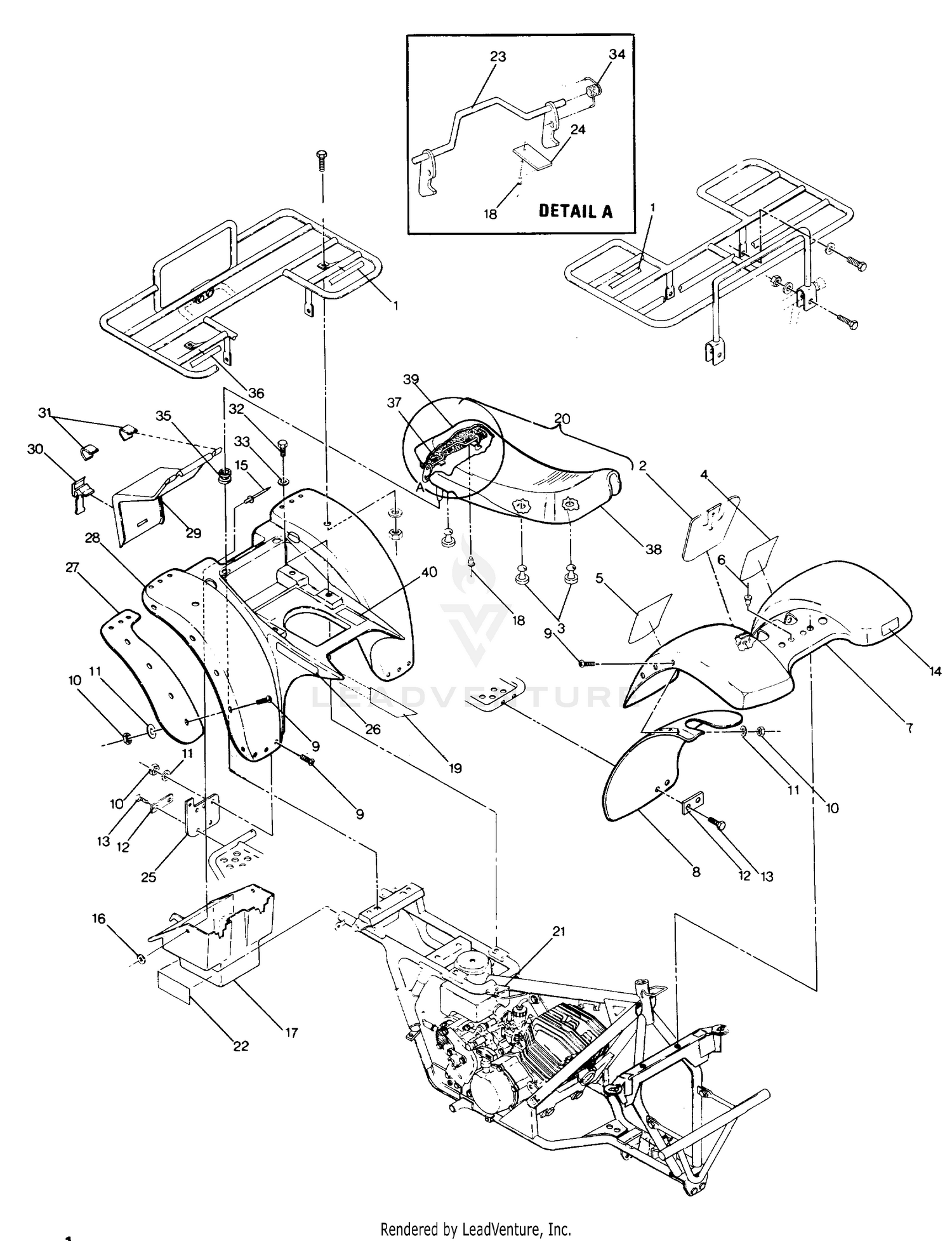

Body Assembly (4914761476001a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DECAL,WRN.HVY LOAD [No Longer Available]
7072605
|
|||
|
Unavailable |
|||
|
#2
FLAP,SPLASH GUARD EXT.
5850080
|
|||
|
Unavailable |
|||
|
#3
BUMPER, RUBBER
5410414
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DECAL,WARN.(FRENCH) [No Longer Available]
7072553
|
|||
|
Unavailable |
|||
|
#5
DECAL,OPER.WARN,ENG.
7072554
|
|||
|
Unavailable |
|||
|
#6
RIVET(50)
7621457
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAB, FRONT Substituted by 5431248-119
5430897
|
|||
|
Unavailable |
|||
|
#8
MUDFLAP,FRONT,LH
5850071
|
|||
|
Unavailable |
|||
|
#8
MUDFLAP,FRONT,RH
5850072
|
|||
|
Unavailable |
|||
|
#9
BOLT, BLACK(10)
7512282
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER(10)
7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET,MUD FLAP Substituted by 5211020-067
5211020
|
|||
|
Unavailable |
|||
|
#13
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
LABEL, 'U.S.A.' [No Longer Available]
7073025
|
|||
|
Unavailable |
|||
|
#15
RIVET(50)
7621462
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER,13/64X1/2X18GA,FL-Y
7558212
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOX,TOOL COMP.
5430882
|
|||
|
Unavailable |
|||
|
#18
BLIND RIVET(50)
7621403
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
TAPE, FOIL
5810349
|
|||
|
Unavailable |
|||
|
#20
SEAT ASM (4WD) Substituted by 2681362
2681358
|
|||
|
Unavailable |
|||
|
#21
STRAP, BLK
7080272
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
TAPE, FOIL
5810310
|
|||
|
Unavailable |
|||
|
#23
LATCH,SEAT
1011558
|
|||
|
Unavailable |
|||
|
#24
BRACKET,LEVER RETAINER
5211033
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
FLAP,MUD,LH REAR
5850062
|
|||
|
Unavailable |
|||
|
#25
FLAP,MUD,RH REAR
5850066
|
|||
|
Unavailable |
|||
|
#26
DECAL,'4X4' [No Longer Available]
7072516
|
|||
|
Unavailable |
|||
|
#27
FLAP,MUD,LH REAR
5850060
|
|||
|
Unavailable |
|||
|
#27
FLAP,MUD,RH REAR
5850061
|
|||
|
Unavailable |
|||
|
#28
CAB, REAR Substituted by 5430991-119
5430896
|
|||
|
Unavailable |
|||
|
#29
LID, TOOL BOX
5430899
|
|||
|
Unavailable |
|||
|
#30
STRAP,TOOL COMPARTMENT
5410425
|
$9.29 | ||
|
Unavailable |
|||
|
#31
CLIP, LID HINGE(10)
7670050
|
|||
|
Unavailable |
|||
|
#32
BOLT(10)
7512111
Superseded by 7512240
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
LOCK WASHER(10)
7552801
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING, LATCH
7041158
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
GROMMET
5410413
|
|||
|
Unavailable |
|||
|
#36
DECAL,REAR RACK [No Longer Available]
7072604
|
|||
|
Unavailable |
|||
|
#37
BASE, SEAT Substituted by 2681288
5430773
|
|||
|
Unavailable |
|||
|
#38
COVER,SEAT,(ATV) Substituted by 2681241
2681359
|
|||
|
Unavailable |
|||
|
#39
FOAM BUN, SEAT [No Longer Available]
5430803
|
|||
|
Unavailable |
|||
|
#40
DECAL,FILTER ELEMENT [No Longer Available]
7072403
|
|||
|
Unavailable |
|||
