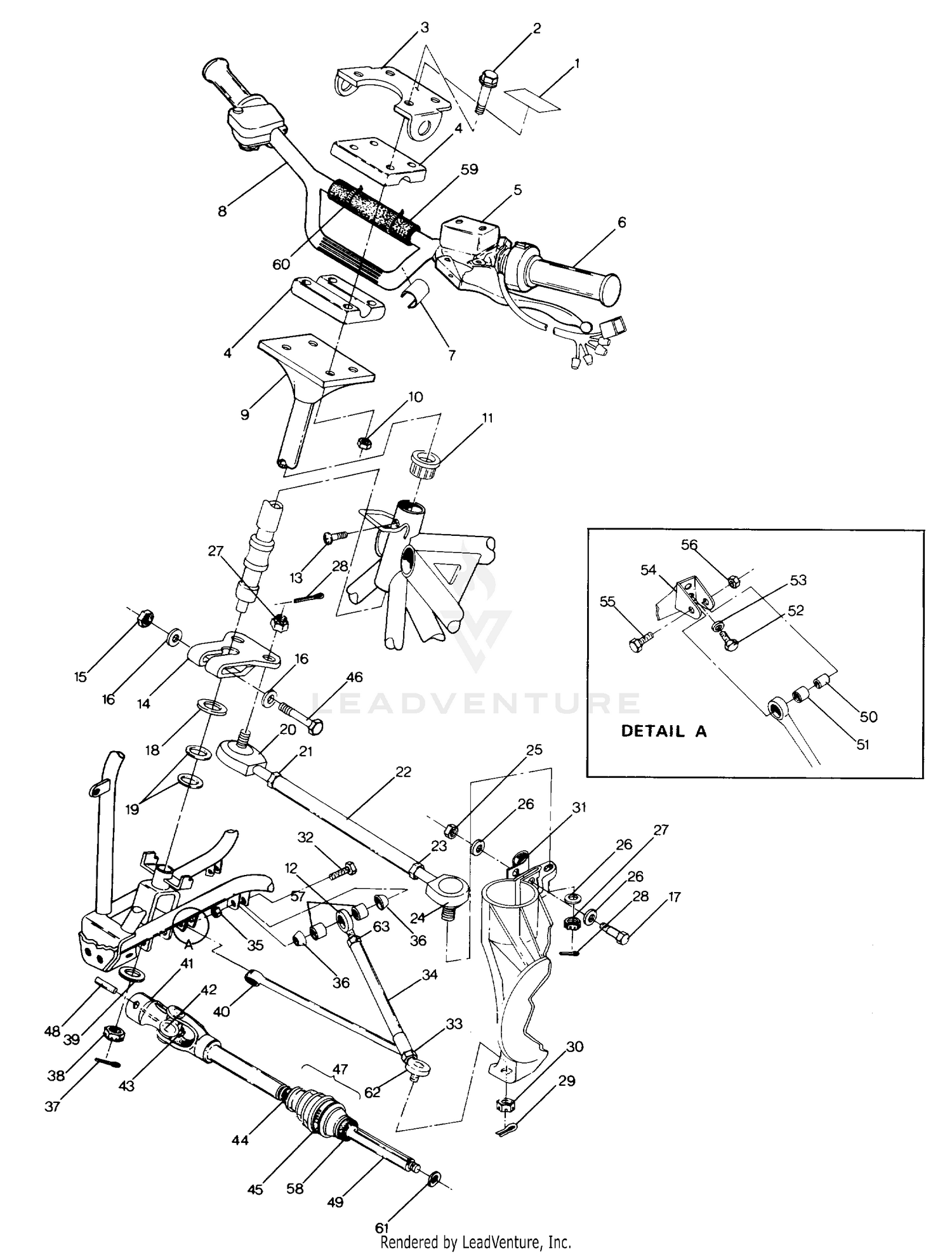

Steering Assembly (4914761476011a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DECAL,OIL/PARK [No Longer Available]
7072376
|
|||
|
Unavailable |
|||
|
#2
BOLT(10)
7512272
|
|||
|
Unavailable |
|||
|
#3
BRACKET,H/L MT.
5220484
|
|||
|
Unavailable |
|||
|
#4
BLOCK,HANDLEBAR
5630187
Superseded by 5630187-067
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
MASTER CYLINDER
1930622
Superseded by 2050073
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Grip, Handlebar
5431030
Superseded by 5433834-070
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DECAL,O'RIDE SWITCH Substituted by 7076274
7072390
|
|||
|
Unavailable |
|||
|
#8
TUBE,HANDLEBAR,BLK
1823131
Superseded by 5242988-067
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
POST, STEERING Substituted by 1843020-067
1843020
|
|||
|
Unavailable |
|||
|
#10
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSHING,STEERING
5430856
|
|||
|
Unavailable |
|||
|
#12
ROD END
7060127
|
$87.99 | ||
|
Unavailable |
|||
|
#13
SCREW
7510503
|
|||
|
Unavailable |
|||
|
#14
FROG,STEERING
5220546
|
|||
|
Unavailable |
|||
|
#15
NUT LOCK(10)
7542411
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER(10)
7555720
Superseded by 7555806
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT(10)
7515438
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER(10)
7555726
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
5410483
|
|||
|
Unavailable |
|||
|
#20
ROD END
7060144
Superseded by 7060147
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, LH, 10 MM.(10)
7546902
|
$3.29 | ||
|
Unavailable |
|||
|
#22
ROD, TIE
5020501
|
|||
|
Unavailable |
|||
|
#23
NUT, RH, 10 MM.(10)
7546901
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
ROD,END,RH,10 MM.
7060145
Superseded by 7060172
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT LOCK(10)
7542403
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER(10) Substituted by 7555806
7555803
|
|||
|
Unavailable |
|||
|
#27
NUT, CASTLE(10)
7546904
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN COTTER(10)
7661203
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN-COTTER(10)
7661205
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT-3/8-24 HX CA GR5-Y
7542438
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLAMP,RUBBER-COATED,.562(10)
7080347
Superseded by 7080573
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT(10) [No Longer Available]
7512668
|
|||
|
Unavailable |
|||
|
#33
NUT,JAM, THIN
7542722
|
|||
|
Unavailable |
|||
|
#34
STRUT,TRAILING
1580025
|
|||
|
Unavailable |
|||
|
#35
NUT FLEX,(10)
7542703
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOOT
5410477
|
|||
|
Unavailable |
|||
|
#37
PIN, COTTER
7661207
|
|||
|
Unavailable |
|||
|
#38
NUT, LOCK(10)
7542717
|
|||
|
Unavailable |
|||
|
#39
WASHER(10)
7555721
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
STRUT,LH SUPPORT Substituted by 1580023-067
1580023
|
|||
|
Unavailable |
|||
|
#40
STRUT, RH SUPPORT Substituted by 1580024-067
1580024
|
|||
|
Unavailable |
|||
|
#41
YOKE, FRONT GEARCASE
3260101
Superseded by 3260133
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
KIT,CROSS&BEARING
3260104
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
FITTING, LUBE
7080359
|
|||
|
Unavailable |
|||
|
#44
CLAMP, BAND
3260105
Superseded by 3260123
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP, LARGE
3260107
|
|||
|
Unavailable |
|||
|
#46
Bolt
7512410
Superseded by 7515540
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLEANER,CU JOINT [No Longer Available]
2870770
|
|||
|
Unavailable |
|||
|
#47
KIT-CV BOOT REPLACEMENT
3260108
Superseded by 2202629
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
TUBE,GREASE(CV JOINT)
3260110
|
|||
|
Unavailable |
|||
|
#48
PIN-SPRING,5/16 X 1 5/8-Y
7661913
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
SHAFT,DRIVE,ASM.
1380017
|
|||
|
Unavailable |
|||
|
#50
SPACER
5332896
|
|||
|
Unavailable |
|||
|
#51
PIVOT-TRAILING ARM
5410382
|
|||
|
Unavailable |
|||
|
#52
BOLT(10)
7515483
|
|||
|
Unavailable |
|||
|
#53
WASHER, SPRING LOCK
7553001
Superseded by 7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
BRKT,SPARE LINK
5220855
|
|||
|
Unavailable |
|||
|
#55
BOLT(10)
7515334
|
|||
|
Unavailable |
|||
|
#56
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
COLLAR
5220883
|
|||
|
Unavailable |
|||
|
#59
PAD, HANDLEBAR
5521181
|
|||
|
Unavailable |
|||
|
#60
TIE, CABLE(10)
7080356
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
WASHER(10)
5211101
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
ROD END,LH BALL SOC.
7060148
|
|||
|
Unavailable |
|||
|
#63
NUT-JAM(10)
7542711
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
