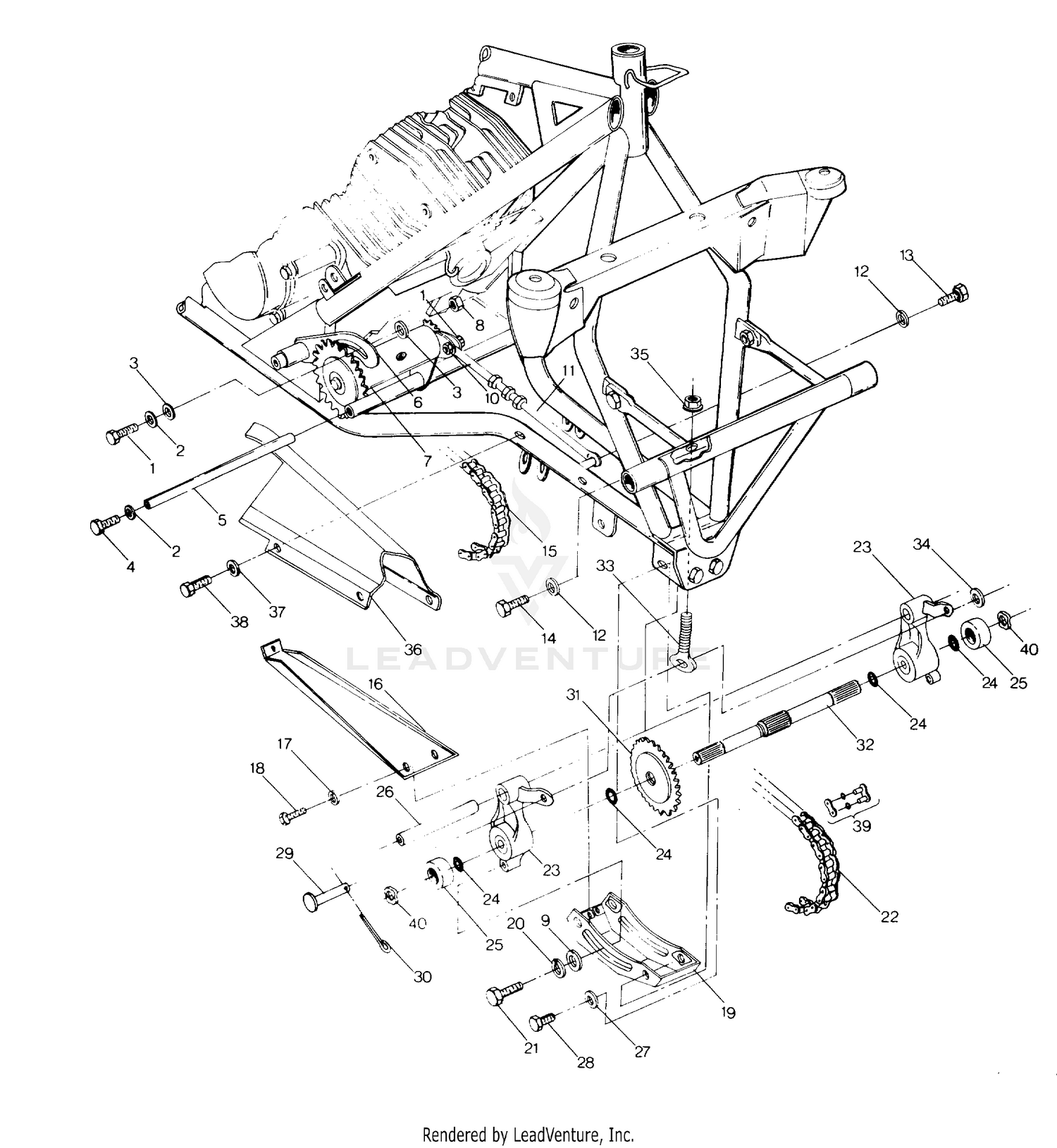

Front Drive Assembly 1988 4 X 4 Update - 4/14/88 (4914761476031a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT(10) Substituted by 7512457
7512491
|
|||
|
Unavailable |
|||
|
#2
WASHER(10)
7555801
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,EXT.LOC.
7571616
|
|||
|
Unavailable |
|||
|
#4
SCREW(10)
7512492
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, PIVOT CTR. [No Longer Available]
5010230
|
|||
|
Unavailable |
|||
|
#6
PLATE,CTR.TIGHT.ADJ.
5220785
|
|||
|
Unavailable |
|||
|
#7
TIGHTENER ASM,CTR. [No Longer Available]
1380001
|
|||
|
Unavailable |
|||
|
#8
NUT(10)
7542425
|
|||
|
Unavailable |
|||
|
#9
WASHER, LOCK
7571617
|
|||
|
Unavailable |
|||
|
#10
NUT-LOCK(10)
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
ADJUSTER ASM,CTR. [No Longer Available]
1380002
|
|||
|
Unavailable |
|||
|
#12
WASHER, SPRING LOCK
7553001
Superseded by 7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT(10)
7515483
|
|||
|
Unavailable |
|||
|
#15
CHAIN,DRIVE,W/CON.
3224039
|
|||
|
Unavailable |
|||
|
#16
GUARD, CHAIN
5220803
|
|||
|
Unavailable |
|||
|
#17
Washer, Flat
7555776
Superseded by 7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW(10)
7512252
|
|||
|
Unavailable |
|||
|
#19
COVER,TIGHTENER WELD.
1040141
|
|||
|
Unavailable |
|||
|
#20
WASHER LOCK(10)
7553101
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT(10)
7512539
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CHAIN-520 ORD4,O-RING,64 PITCH
3224041
Superseded by 3221193-064
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
TIGHTENER ASM,LH FR. [No Longer Available]
1380004
|
|||
|
Unavailable |
|||
|
#23
TIGHTENER ASM,RH FR. [No Longer Available]
1380005
|
|||
|
Unavailable |
|||
|
#24
O RING
5410463
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPACER,FR.TIGHTENER
5020474
|
|||
|
Unavailable |
|||
|
#26
SHAFT,PIVOT,TIGHTENER [No Longer Available]
5020483
|
|||
|
Unavailable |
|||
|
#27
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT(10)
7515321
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, CLEVIS
7662020
|
|||
|
Unavailable |
|||
|
#30
PIN COTTER(10)
7661203
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPROCKET, 22 TOOTH
3222045
|
|||
|
Unavailable |
|||
|
#32
SHAFT,OUTPUT
5020463
|
|||
|
Unavailable |
|||
|
#33
BOLT, ADJUSTER
7080293
|
|||
|
Unavailable |
|||
|
#34
WASHER(10) Substituted by 7555806
7555803
|
|||
|
Unavailable |
|||
|
#35
NUT LOCK(10)
7542321
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
GUARD,CHAIN,FR.
5430902
|
|||
|
Unavailable |
|||
|
#39
CONNECTOR LINK
3225024
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, SPRING
7555777
Superseded by 7571605
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
