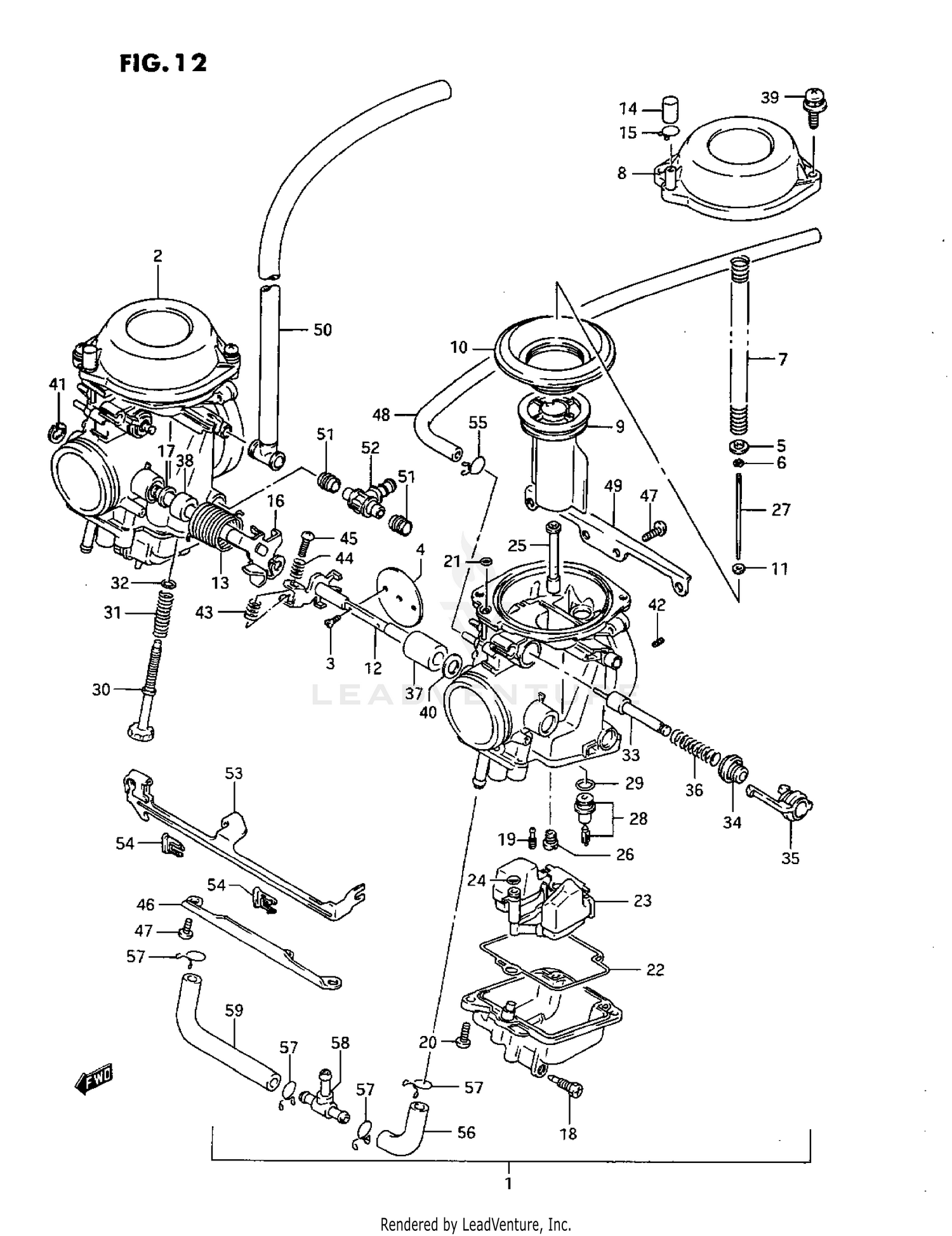

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY, LH
13201-01D00
Superseded by 13201-01D02
|
$423.33 | ||
|
Unavailable |
|||
|
#1
CARBURETOR ASSY, LH
13201-01D10
Superseded by 13201-01D11
|
$286.05 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSY, RH
13202-01D00
Superseded by 13202-01D02
|
$423.33 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSY, RH
13202-01D10
Superseded by 13202-01D11
|
$550.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, THROTTLE VALVE
13604-42A00
Superseded by 13604-44080
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE, THROTTLE (120)
13551-01D00
|
$49.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING
13382-42A00
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#6
E RING
13394-10010
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
.E-RING
13394-40D20
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING
13417-42A00
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, DIAPHRAGM
13502-01D00
|
$38.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE, PISTON
13501-01D00
|
$66.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
.DIAPHRAGM
13507-17C00
Superseded by 13507-17C02
|
$32.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING
13387-47010
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT ASSY
13550-01D00
|
$37.11 | ||
|
Unavailable |
|||
|
#13
SPRING
13573-44B00
|
$4.88 | ||
|
Unavailable |
|||
|
#14
CAP
13508-17C00
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
13671-33600
Superseded by 13671-05A40
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT ASSY
13550-01D10
|
$34.75 | ||
|
Unavailable |
|||
|
#17
SEAL
13556-44B00
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, DRAIN
13247-28A00
|
$8.12 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, DRAIN
13247-13A00
Superseded by 13247-02340
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, PILOT (37.5)
09492-35010
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
02112-05126
Superseded by 02112-0512A
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
13509-17C00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, FLOAT CHAMBER
13258-44B00
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
FLOAT ASSY
13240-01D00
|
$60.51 | ||
|
Available to order. Add to View Price |
|||
|
#24
.O-RING
13374-46710
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#25
JET, NEEDLE (O-3M)
09494-00640
Superseded by 09494-00871
|
$41.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
JET, MAIN (122.5)
09491-24013
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
NEEDLE, JET (5DH8-1)
13383-01D00
|
$16.07 | ||
|
Available to order. Add to View Price |
|||
|
#28
VALVE ASSY,NEED
13370-44B00
Superseded by 13370-02D01
|
$52.47 | ||
|
Available to order. Add to View Price |
|||
|
#29
O RING
13374-44080
Superseded by 13374-35C00
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#30
ADJUSTER
13267-28A00
Superseded by 13267-14D10
|
$23.22 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING
13268-43410
Superseded by 13375-14D10
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER
13427-38300
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLUNGER ASSY
13411-01D00
|
$20.42 | ||
|
Unavailable |
|||
|
#34
CAP,STARTER
13418-17C00
Superseded by 13418-17C01
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOLDER, GUIDE
13418-17C10
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPRING
13417-09110
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#37
RING
13574-01D00
|
$3.69 | ||
|
Unavailable |
|||
|
#38
RING
13574-28A00
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW
13602-34390
Superseded by 02112-7516A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER
13557-47070
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#41
E RING
13617-44080
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#42
JET, AIR (1.3)
09493-26004
|
$16.07 | ||
|
Available to order. Add to View Price |
|||
|
#42
JET, AIR (1.35)
09493-27002
|
$15.92 | ||
|
Available to order. Add to View Price |
|||
|
#43
SPRING
13268-96110
Superseded by 13268-96111
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPRING
13271-44B00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#45
SCREW
13267-44B00
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#46
PLATE
13628-01D00
|
$12.76 | ||
|
Unavailable |
|||
|
#47
SCREW
02112-05126
Superseded by 02112-0512A
|
$1.52 | ||
|
Unavailable |
|||
|
#48
HOSE (5X9X350)
13684-01D10
|
$35.96 | ||
|
Available to order. Add to View Price |
|||
|
#49
PLATE
13628-01D10
|
$11.18 | ||
|
Unavailable |
|||
|
#50
HOSE
13684-44B00
Superseded by 13683-17C31
|
$18.48 | ||
|
Available to order. Add to View Price |
|||
|
#51
SEAL
13673-44B00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#52
NIPPLE
13685-44B00
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#53
LEVER
13413-01D00
|
$18.24 | ||
|
Unavailable |
|||
|
#54
HOLDER
13439-17C00
|
$11.78 | ||
|
Available to order. Add to View Price |
|||
|
#55
.CLIP
13671-05A30
Superseded by 09401-08410
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#56
HOSE
13684-48B00
Superseded by 13684-48B11
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLIP
13671-48B10
Superseded by 09401-10401
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#58
NIPPLE
13685-48B00
|
$13.48 | ||
|
Available to order. Add to View Price |
|||
|
#59
HOSE
13684-01D20
Superseded by 13684-48B11
|
$17.72 | ||
|
Unavailable |
|||
