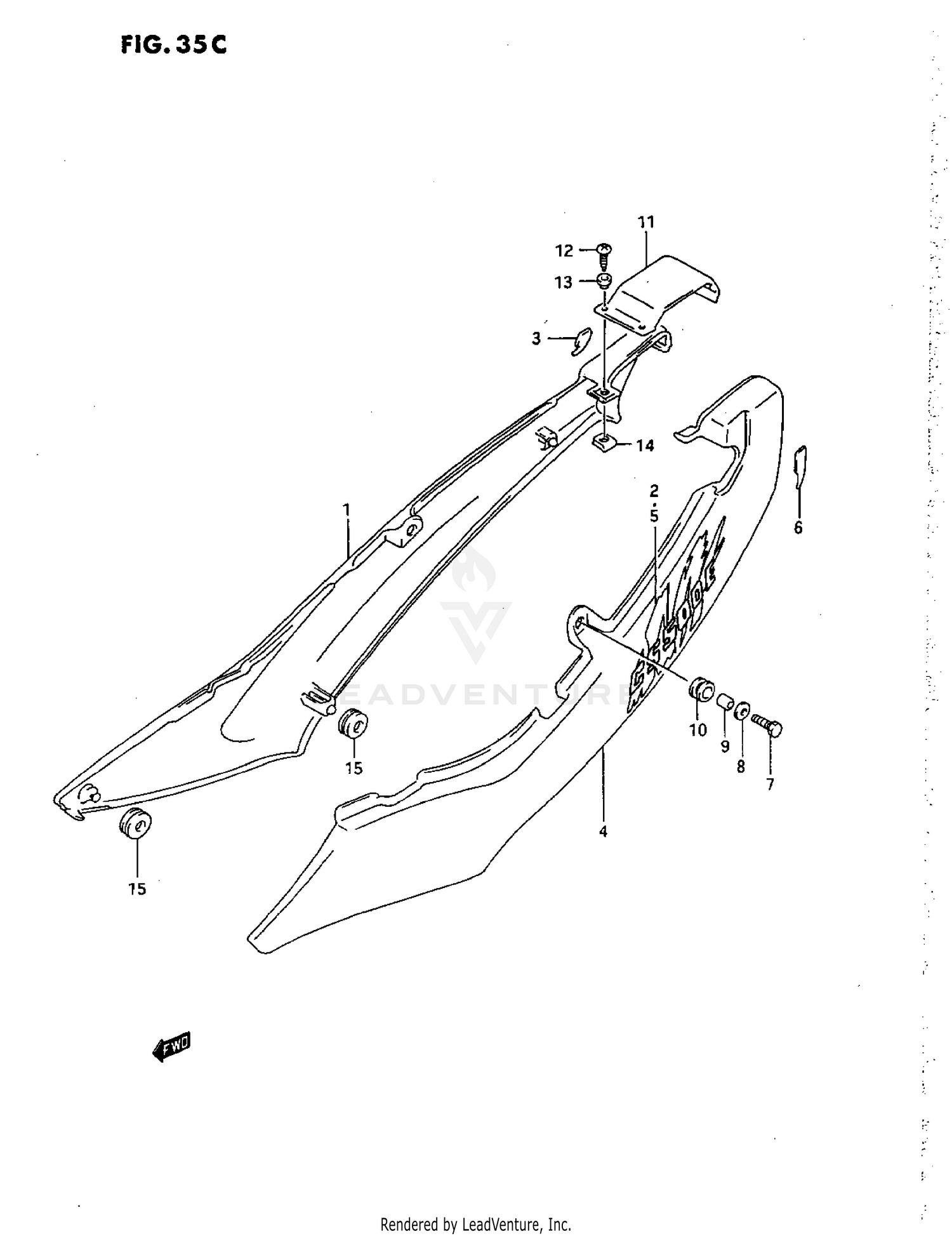

Frame Cover (r) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FRAME RH (RED)
47110-01DC0-19A
|
$204.86 | ||
|
Unavailable |
|||
|
#1
COVER, FRAME RH (PURPLE)
47110-01DC0-1TU
|
$282.10 | ||
|
Unavailable |
|||
|
#2
EMBLEM
68131-01D20-C1W
|
$34.59 | ||
|
Unavailable |
|||
|
#2
EMBLEM
68131-01D20-C1Z
|
$38.88 | ||
|
Unavailable |
|||
|
#3
PROTECTOR, RH
47119-01D00
|
$7.84 | ||
|
Unavailable |
|||
|
#4
COVER, FRAME LH (RED)
47210-01DC0-19A
|
$204.86 | ||
|
Unavailable |
|||
|
#4
COVER, FRAME LH (PURPLE)
47210-01DC0-1TU
|
$263.25 | ||
|
Unavailable |
|||
|
#5
EMBLEM
68131-01D20-C1W
|
$34.59 | ||
|
Unavailable |
|||
|
#5
EMBLEM
68131-01D20-C1Z
|
$38.88 | ||
|
Unavailable |
|||
|
#6
PROTECTOR, LH
47219-01D00
|
$6.87 | ||
|
Unavailable |
|||
|
#7
BOLT
09128-06006
Superseded by 09128-06057
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (6.5X18X1.6)
09160-06057
Superseded by 09160-06109
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER (6.5X9X9)
09180-06011
Superseded by 09180-06263
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION (9X18X9.5)
09320-09016
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, CENTER (RED)
47215-01D00-19A
|
$68.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, CENTER (PURPLE)
47215-01D00-1TU
|
$37.07 | ||
|
Unavailable |
|||
|
#12
SCREW
03241-05123
Superseded by 03241-0512A
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
09161-05017
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
09148-05013
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09320-08018
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
