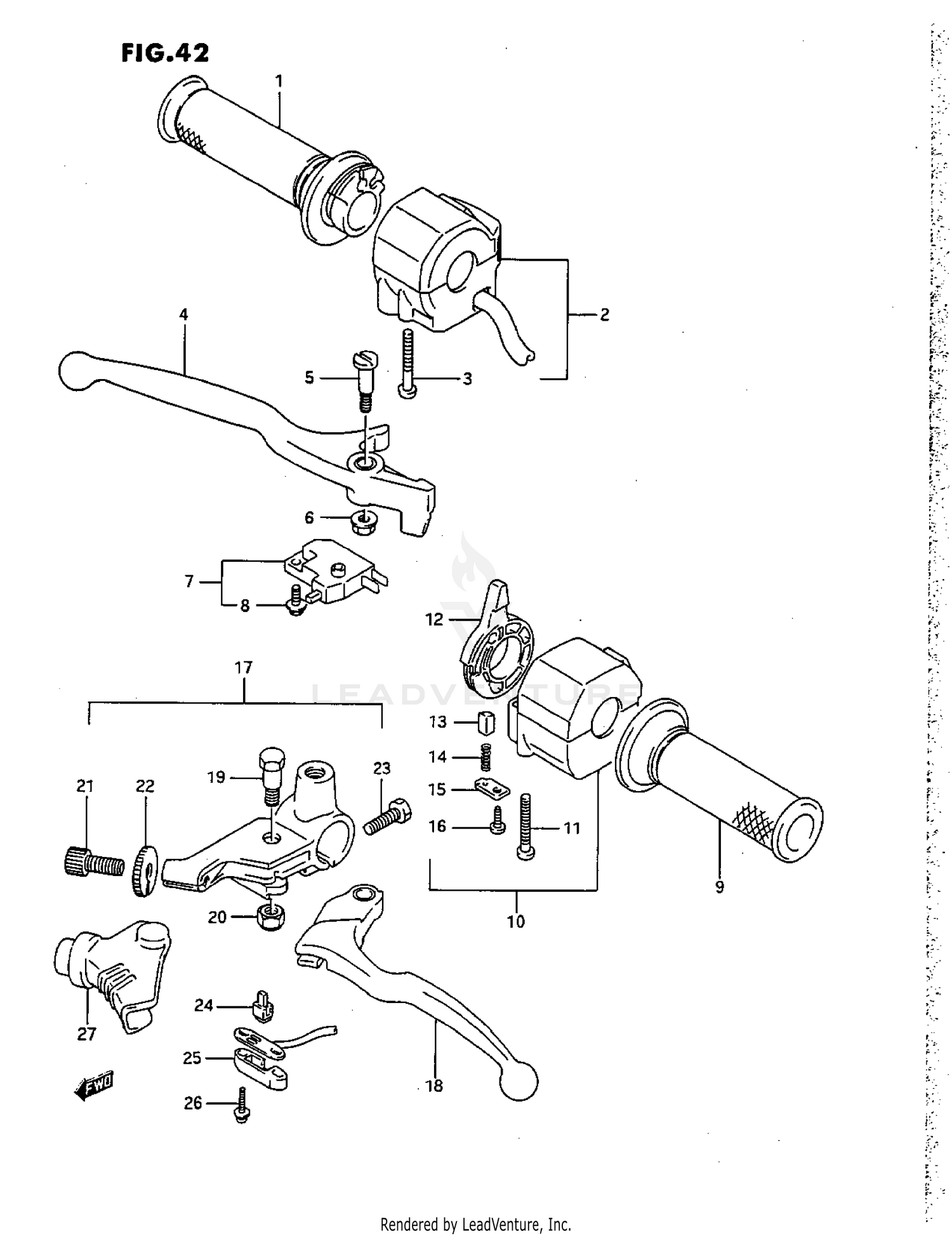

Handle Switch (k) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP, THROTTLE
57110-05C01
|
$32.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH ASSY, HANDLE RH
37200-01D10
Superseded by 37200-01D30
|
$98.42 | ||
|
Unavailable |
|||
|
#3
.SCREW
02112-05455
Superseded by 02112-0545B
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER, BRAKE
57420-01D00
|
$24.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
57431-17C00
|
$7.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
08316-16064
Superseded by 08316-1006B
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY,FR BRAKE
57460-17C00
Superseded by 57460-14J02
|
$42.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SCREW,WITH WASHER (4X12)
57465-17C00
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRIP, LH
57211-05C00
|
$15.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY, HANDLE LH
37400-01D11
Superseded by 37400-01D30
|
$168.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SCREW
02112-05455
Superseded by 02112-0545B
|
$2.38 | ||
|
Unavailable |
|||
|
#12
LEVER, CHOCK
37481-30B00
Superseded by 37481-30B01
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIECE, SLIDE
37482-30B00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
37483-30B00
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE
37486-30B00
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
03511-04125
Superseded by 03511-0412A
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER ASSY, CLUTCH
57500-33430
|
$41.26 | ||
|
Unavailable |
|||
|
#18
LEVER, CLUTCH
57620-33410
|
$26.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
57431-33450
Superseded by 57531-14A00
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08319-21065
Superseded by 08319-2106B
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
ADJUSTER
57441-11010
|
$6.23 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
57442-11010
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, GEAR SHIFT LINK
01107-06205
Superseded by 01500-0620A
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER
57465-18601
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER
57481-33010
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
57484-49110
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, CLUTCH LEVER
57661-33400
|
$7.67 | ||
|
Available to order. Add to View Price |
|||
