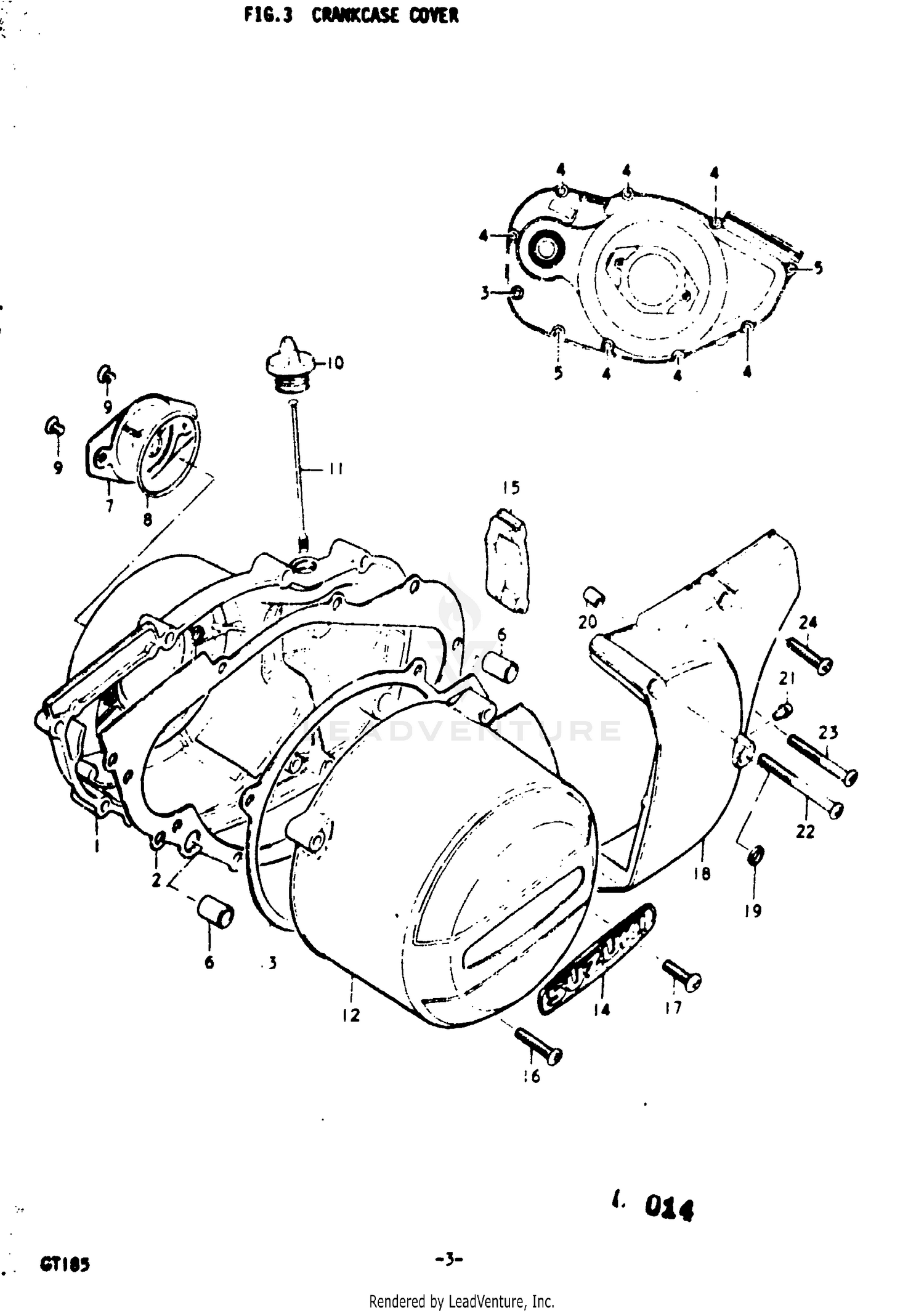

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11341-36101
|
$80.36 | ||
|
Unavailable |
|||
|
#2
GASKET,CLUTCH C
11482-36000
Superseded by 11482-36000-H17
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW (6X40)
02112-06408
Superseded by 02112-06407
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
02112-06358
Superseded by 02112-06357
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02112-06258
Superseded by 02112-06257
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN (10.4X13X18)
09206-13001
Superseded by 04211-13189
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, CLUTCH RELEASE ADJUSTING
11387-36000
|
$13.00 | ||
|
Unavailable |
|||
|
#8
GASKET
11495-36000
|
$0.97 | ||
|
Unavailable |
|||
|
#8
O RING
09280-58001
Superseded by 09280-58003
|
$2.53 | ||
|
Unavailable |
|||
|
#9
SCREW
02131-05127
Superseded by 02122-05127
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG
09259-19001
Superseded by 09259-19005
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
GAUGE, OIL LEVEL
24831-36000
|
$3.24 | ||
|
Unavailable |
|||
|
#12
COVER, GENERATOR
11351-36100
|
$56.86 | ||
|
Unavailable |
|||
|
#12
COVER, GENERATOR
11351-36101
|
$99.62 | ||
|
Unavailable |
|||
|
#13
GASKET
11483-36100
|
$3.33 | ||
|
Unavailable |
|||
|
#13
GASKET
11483-36101
|
$6.12 | ||
|
Unavailable |
|||
|
#14
EMBLEM, GENERATOR COVER
68233-34000
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, GENERATOR COVER
11393-36100
|
$4.29 | ||
|
Unavailable |
|||
|
#16
SCREW
02112-06307
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
02112-06208
Superseded by 02112-06207
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, ENGINE SPROCKET
11360-36102
Superseded by 11360-36103
|
$56.71 | ||
|
Unavailable |
|||
|
#18
COVER, ENGINE SPROCKET
11360-36103
|
$56.71 | ||
|
Unavailable |
|||
|
#19
OIL SEAL
09284-12004
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN
04211-09129
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
MIPPLE, GREASE
08351-11009
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
02112-06608
Superseded by 02112-06607
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW (6X40)
02112-06408
Superseded by 02112-06407
|
$1.88 | ||
|
Unavailable |
|||
|
#24
SCREW
02112-06307
|
$2.08 | ||
|
Unavailable |
|||
