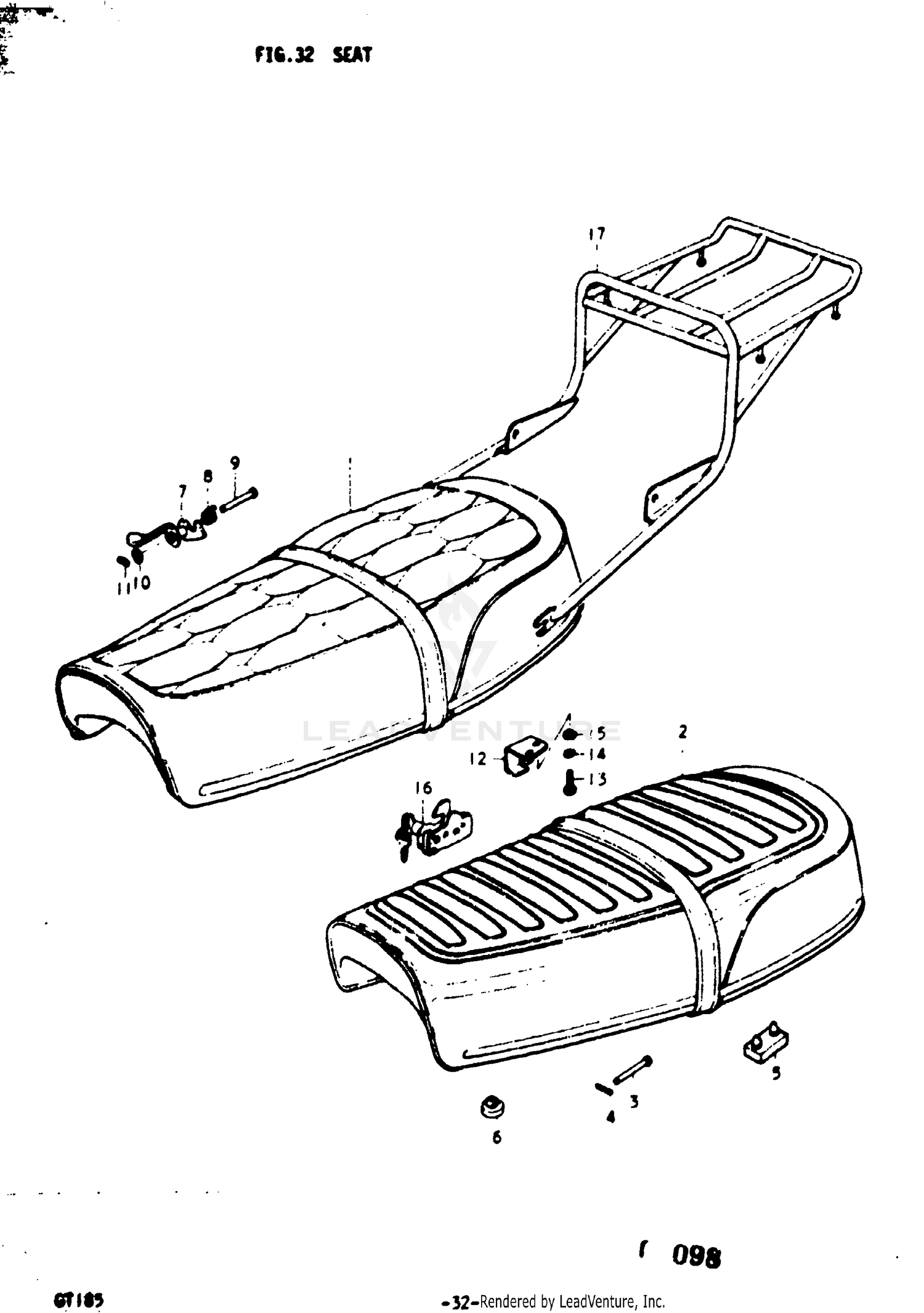

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
45100-36000-403
Superseded by 45100-36X00-865
|
$151.21 | ||
|
Unavailable |
|||
|
#2
SEAT ASSY
45100-36200-403
|
|||
|
Unavailable |
|||
|
#2
SEAT ASSY
45100-36201-403
|
|||
|
Unavailable |
|||
|
#2
NO DESCRIPTION AVAILABLE
45100-36201-865
Superseded by 45100-36X00-865
|
$151.21 | ||
|
Unavailable |
|||
|
#3
PIN
09200-06018
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09321-08006
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09321-10002
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
45210-33002
|
$6.27 | ||
|
Unavailable |
|||
|
#8
SPRING
09448-15001
|
$2.33 | ||
|
Unavailable |
|||
|
#9
PIN
09200-06018
|
$2.10 | ||
|
Unavailable |
|||
|
#10
WASHER
08322-21068
Superseded by 08322-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
09385-05002
|
$0.51 | ||
|
Unavailable |
|||
|
#12
PLATE
45213-36200
|
$3.74 | ||
|
Unavailable |
|||
|
#13
BOLT
01112-06128
Superseded by 01500-06127
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK WASHER
08321-21068
Superseded by 08321-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08322-21068
Superseded by 08322-01067
|
$1.95 | ||
|
Unavailable |
|||
|
#16
LOCK ASSY, SEAT
95700-36811
Superseded by 95700-49811
|
$32.60 | ||
|
Unavailable |
|||
|
#17
CARRIER
46310-36000
|
|||
|
Unavailable |
|||
