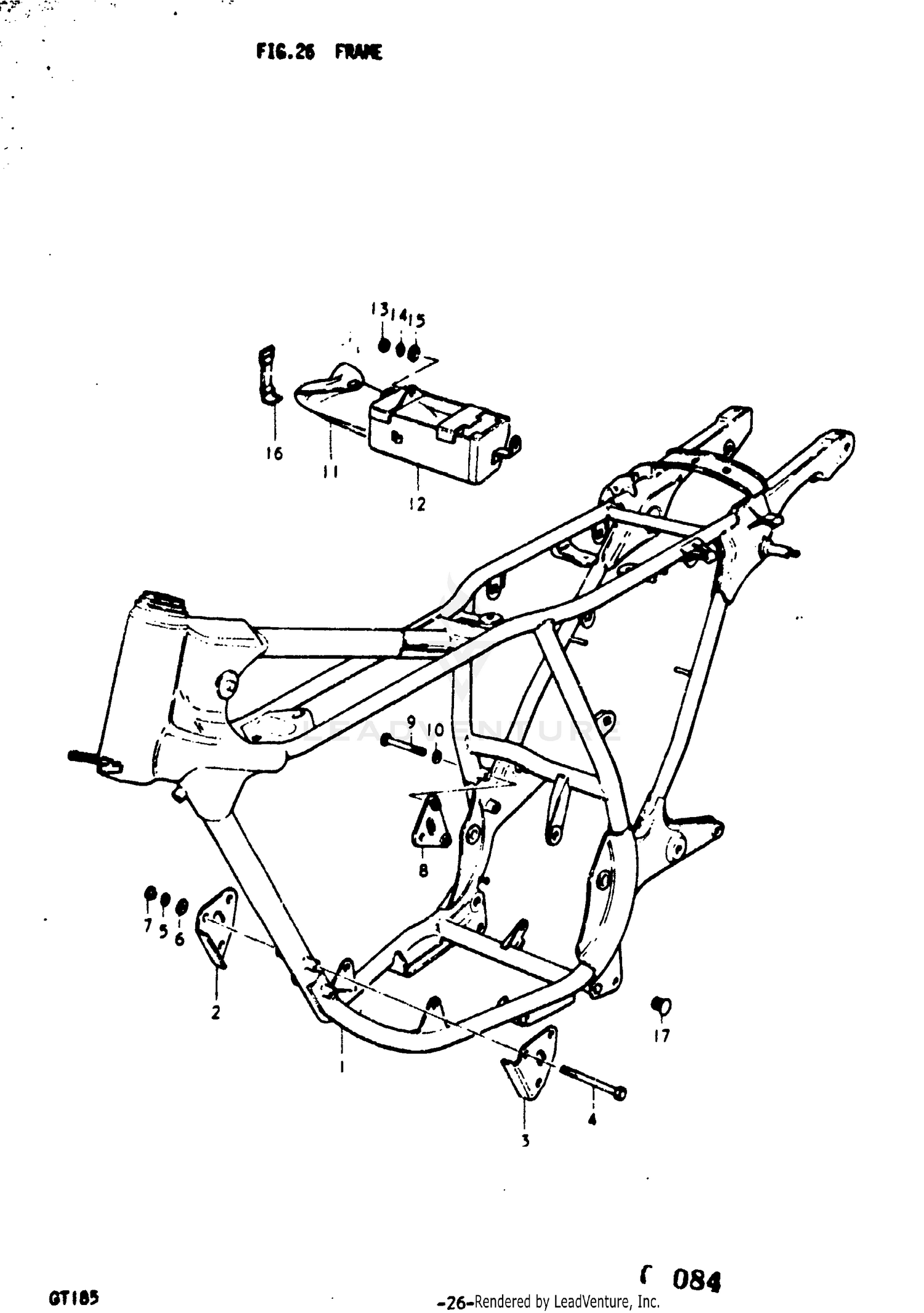

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
41100-36000-019
|
|||
|
Unavailable |
|||
|
#1
FRAME
41100-36001-019
Superseded by 41100-36002-019
|
$325.10 | ||
|
Unavailable |
|||
|
#1
FRAME
41100-36002-019
|
$325.10 | ||
|
Unavailable |
|||
|
#2
PLATE, ENGINE MOUNTING RH
41591-36000
|
$2.30 | ||
|
Unavailable |
|||
|
#3
PLATE, ENGINE MOUNTING RH
41592-36000
Superseded by 41591-36000
|
$2.30 | ||
|
Unavailable |
|||
|
#4
BOLT
01122-08758
Superseded by 01500-0875B
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
.WASHER,LOCK
08321-21088
Superseded by 08321-01087
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
08322-21088
Superseded by 08322-01087
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
08312-11088
Superseded by 08310-00087
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, ENGINE MOUNTING REAR
41590-36000
|
$3.61 | ||
|
Unavailable |
|||
|
#9
BOLT
01122-08558
Superseded by 01500-08557
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
.WASHER,LOCK
08321-21088
Superseded by 08321-01087
|
$1.95 | ||
|
Unavailable |
|||
|
#11
TOOL ASSY
09800-00108
Superseded by 09800-21028
|
$36.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, TOOL
41550-36000
|
$10.73 | ||
|
Unavailable |
|||
|
#13
.NUT
08311-11068
Superseded by 08310-00067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK WASHER
08321-21068
Superseded by 08321-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08322-11068
Superseded by 08322-0106B
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND
09462-00041
Superseded by 09462-00041-XC0
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP
09250-09001
Superseded by 09250-09008
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
