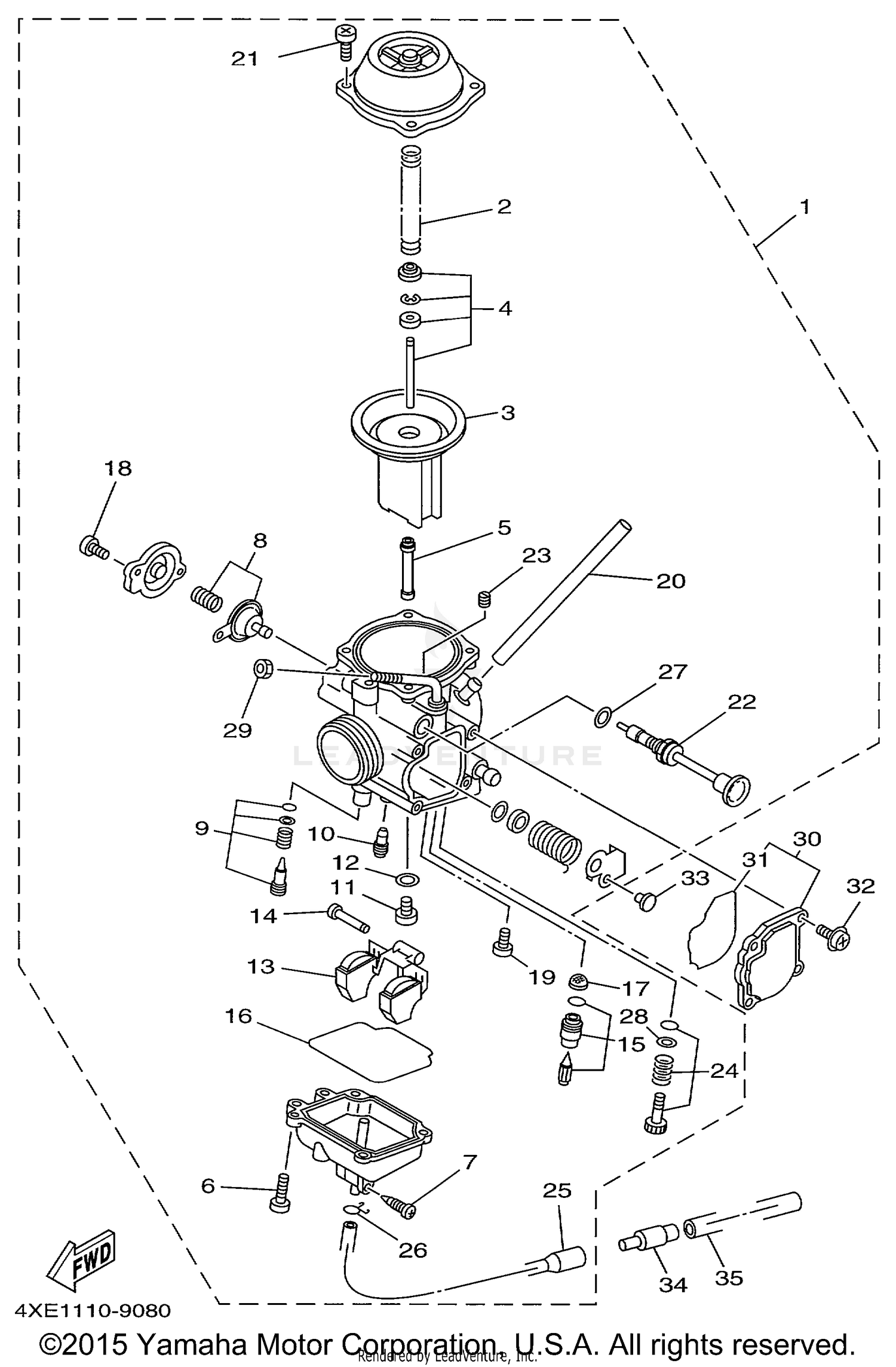

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARB. SUB ASSEMBLY
4XE-14140-00-00
Superseded by 4XE-14140-01-00
|
$612.99 | ||
|
Unavailable |
|||
|
#
CARB. SUB ASSEMBLY
4XE-14140-10-00
Superseded by 4XE-14140-11-00
|
$623.99 | ||
|
Unavailable |
|||
|
#2
SPRING, DIAPHRAGM
4XE-14933-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM ASSY
4WU-14940-00-00
|
$258.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEEDLE SET
4XE-1490J-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#
NEEDLE SET
4XE-1490J-10-00
|
$16.49 | ||
|
Unavailable |
|||
|
#5
NOZZLE, MAIN
4WU-14141-42-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW,PANHEAD
98507-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, DRAIN
12R-14191-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM SET 5
26H-1490H-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PILOT SCREW SET
4RF-14105-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
JET, PILOT ( 42.5)
4G0-14142-42-00
Superseded by 4G0-14142-42-A0
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET, MAIN (# 95)
620-14231-19-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, MAIN JET
137-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLOAT
2VA-14185-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, FLOAT
537-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NEEDLE VALVE SET
1UY-14107-20-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
2LN-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NET, FILTER
1J7-14994-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW,PANHEAD
1UY-14565-00-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Unavailable |
|||
|
#19
SCREW
2LN-14565-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE
2J2-14197-00-00
Superseded by 90445-08684-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98507-04008-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUNGER, STARTER
4KB-14993-00-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PILOT JET, AIR (1.6)
2A2-14172-16-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
THROTTLE SCREW SET
2VA-14103-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE
4KB-14193-20-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
14X-14937-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
4KB-14285-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
22U-14952-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, CABLE ADJUSTING
522-14161-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER SUB ASSY
4XE-14480-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING
4KB-14147-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW,PANHEAD
1UY-14565-00-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Unavailable |
|||
|
#33
GUIDE, CABLE
1UY-14155-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIPE
24W-14193-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE
91A20-07010-00
Superseded by 91A21-07020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
