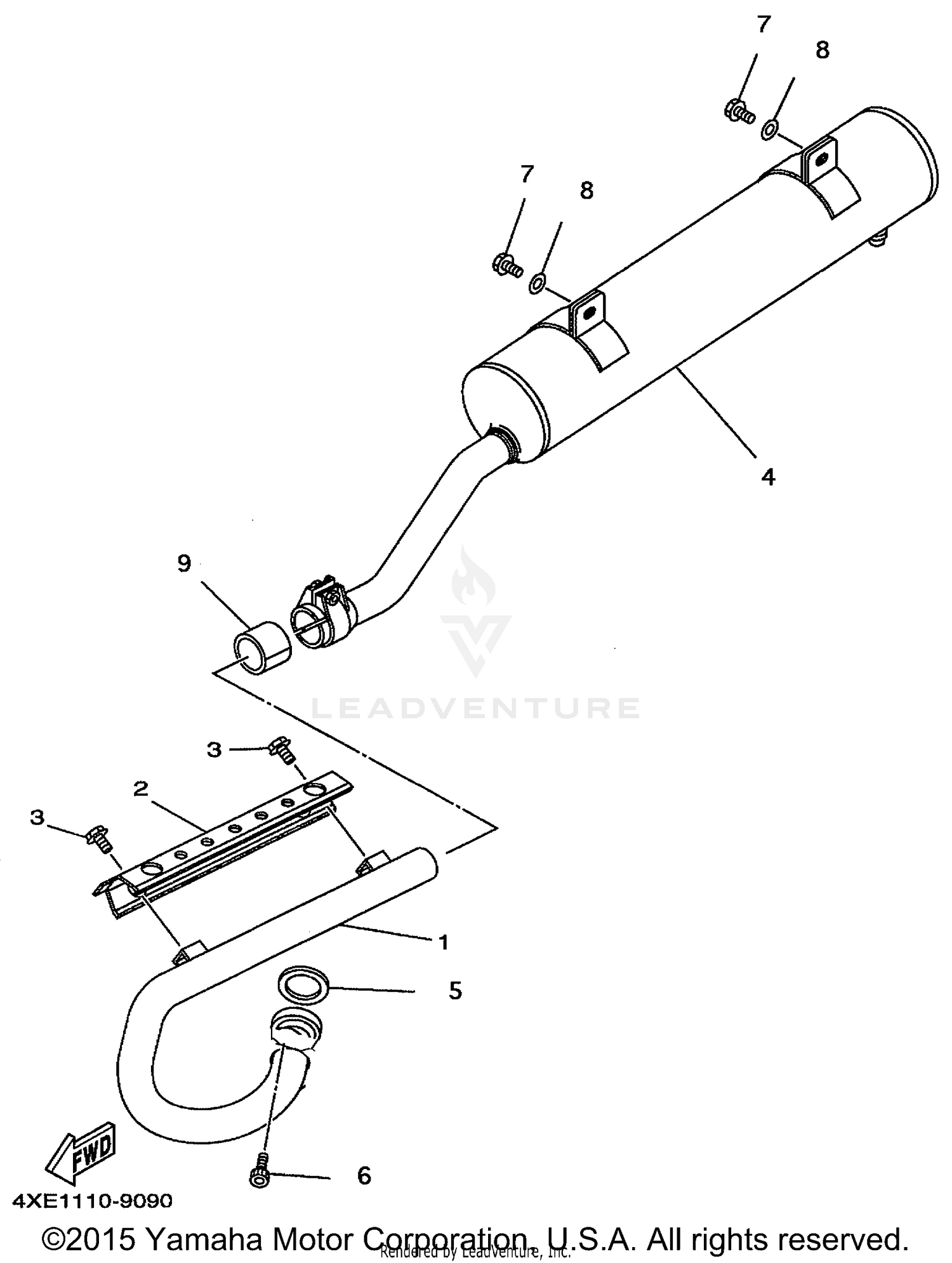

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
4XE-E4611-00-00
Superseded by 1P0-E4611-00-00
|
$217.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
4XE-E4628-00-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95027-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
MUFFLER ASSY 1
4XE-E4710-00-00
Superseded by 1P0-E4710-00-00
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, EXHAUST PIPE
4BE-14613-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
9131P-06020-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WASHER BASED
90105-08887-00
|
$2.05 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-088P7-00
Superseded by 90201-08784-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, MUFFLER
3YF-14714-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
