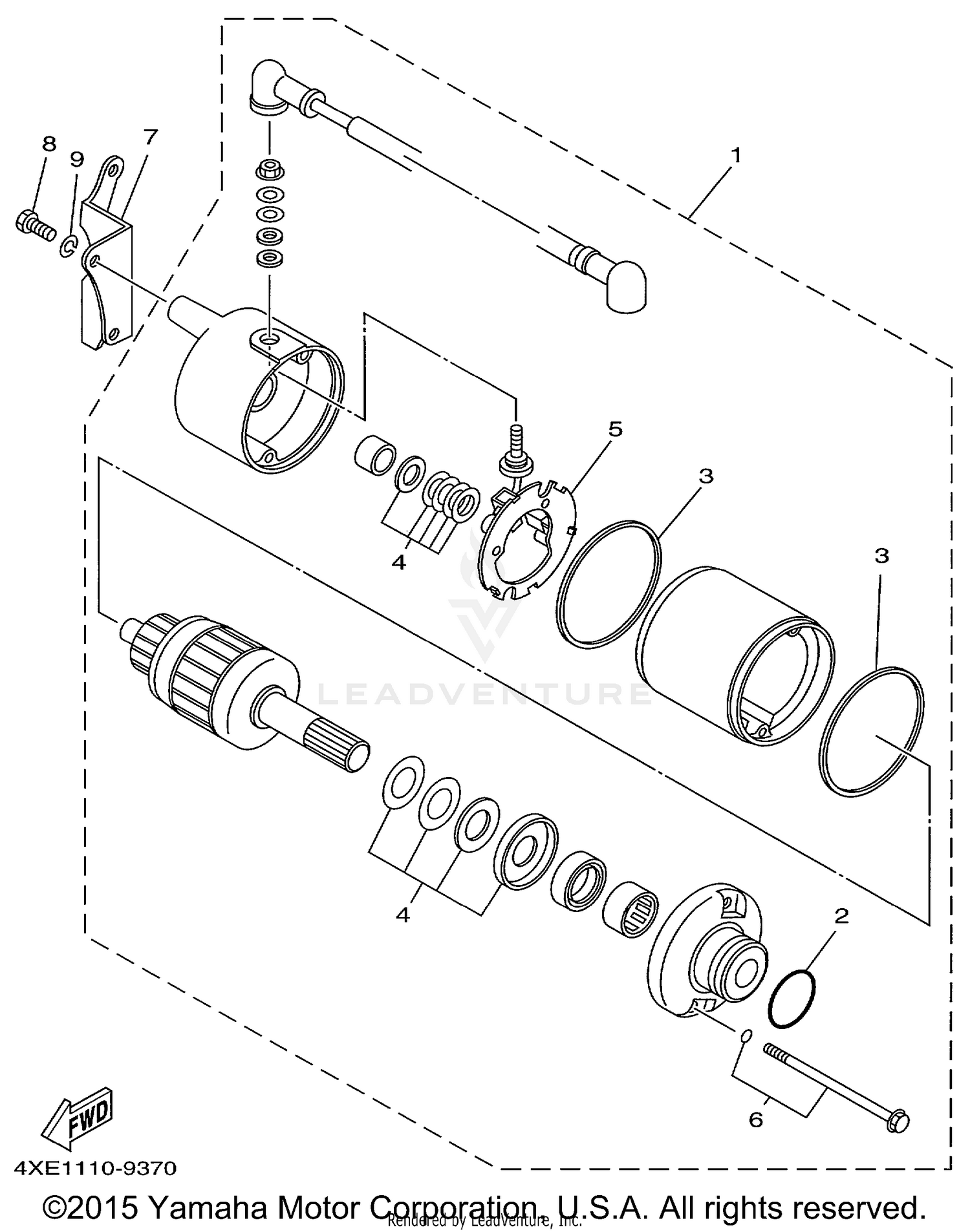

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY
4XE-81800-00-00
Superseded by 4XE-81890-00-00
|
$406.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
1FK-81847-00-00
Superseded by 93210-24235-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
4WP-81844-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER KIT
3KS-81809-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRUSH SET
4WP-81801-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
4WP-81826-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, STARTING MOTOR
1EV-81823-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW,PAN HEAD
98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
