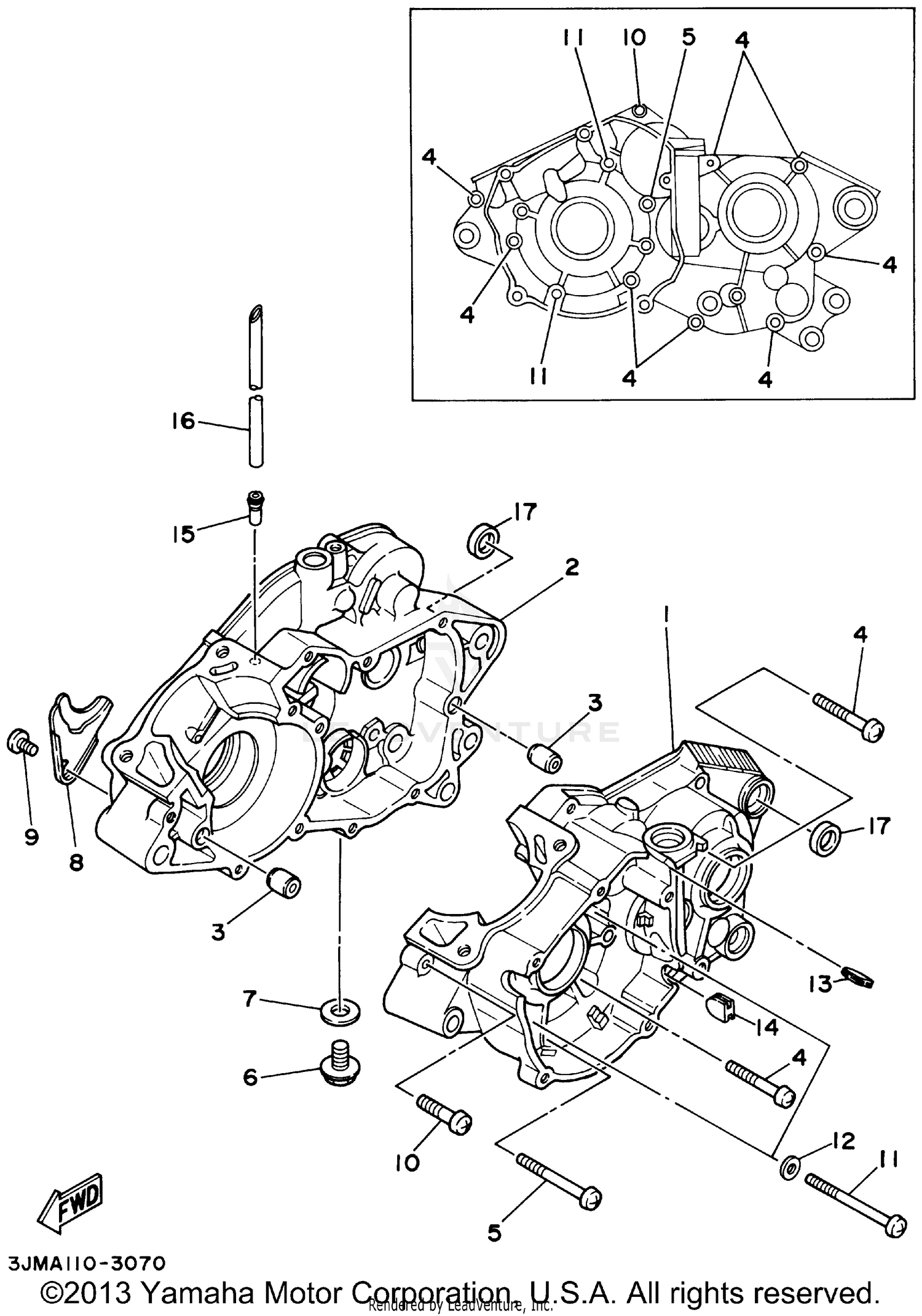

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
2XJ-15111-01-00
|
$381.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANKCASE 2
2XJ-15121-00-00
|
$311.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98507-06045-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98507-06060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, STRAIGHT SCREW
90340-12059-00
Superseded by 90340-12006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-12172-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER
37F-15128-00-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98507-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98507-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98507-06075-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-01209-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG
90338-09206-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CONNECTOR, SUCTION PIPE
137-13115-01-00
|
$4.99 | ||
|
Unavailable |
|||
|
#16
TUBE, FLEXIBLE VINYL
90446-09155-00
Superseded by 91A20-05145-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-166L5-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
