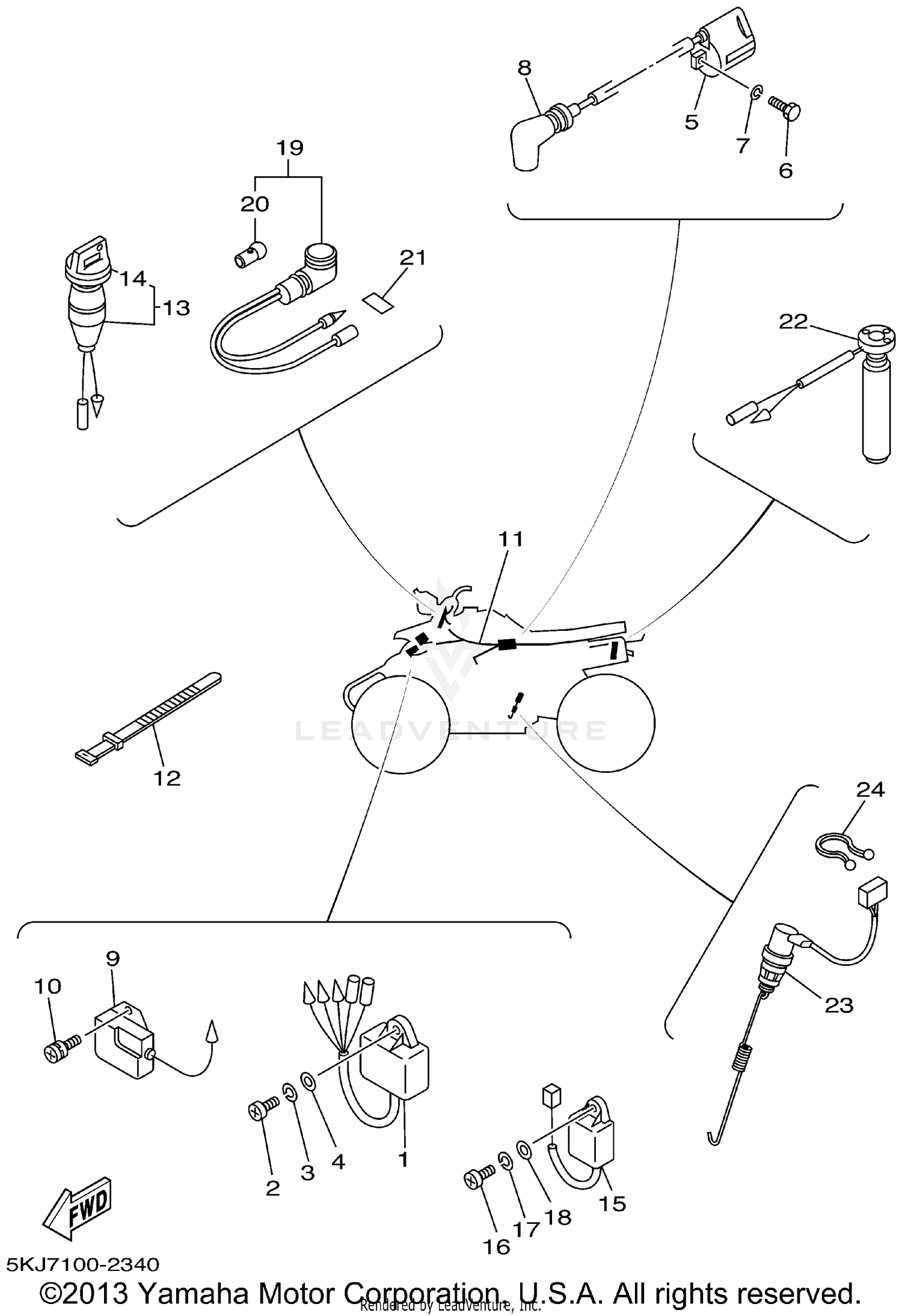

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI UNIT ASSY
3FL-85540-10-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW,PAN HEAD
98507-06020-00
Superseded by 98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
IGNITION COIL ASSY
3NS-82310-10-00
Superseded by 3KJ-82310-13-00
|
$45.99 | ||
|
Unavailable |
|||
|
#6
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#8
PLUG CAP ASSY
1M1-82370-30-00
Superseded by 8DG-82370-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
VOLTAGE REGULATOR AS
82F-81910-A0-00
Superseded by 7XE-81910-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, WITH WASHER
90159-06056-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WIRE HARNESS ASSY
5KJ-82590-00-00
|
$191.75 | ||
|
Unavailable |
|||
|
#12
BAND, SWITCH CORD
3TB-83936-00-00
Superseded by 437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
MAIN SWITCH ASSY
2XJ-82510-01-00
Superseded by 2XJ-82510-02-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, KEY
3HN-82579-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CONTROL UNIT ASSY
3GG-85590-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,PAN HEAD
98507-06020-00
Superseded by 98517-06020-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#19
PILOT LIGHT ASSY
2XJ-83530-10-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
LABEL
4U3-83585-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
OIL LEVEL GAUGE ASSY
2XJ-85720-03-00
Superseded by 2XJ-85720-04-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
STOP SWITCH ASSY
5KJ-82530-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90464-16039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
