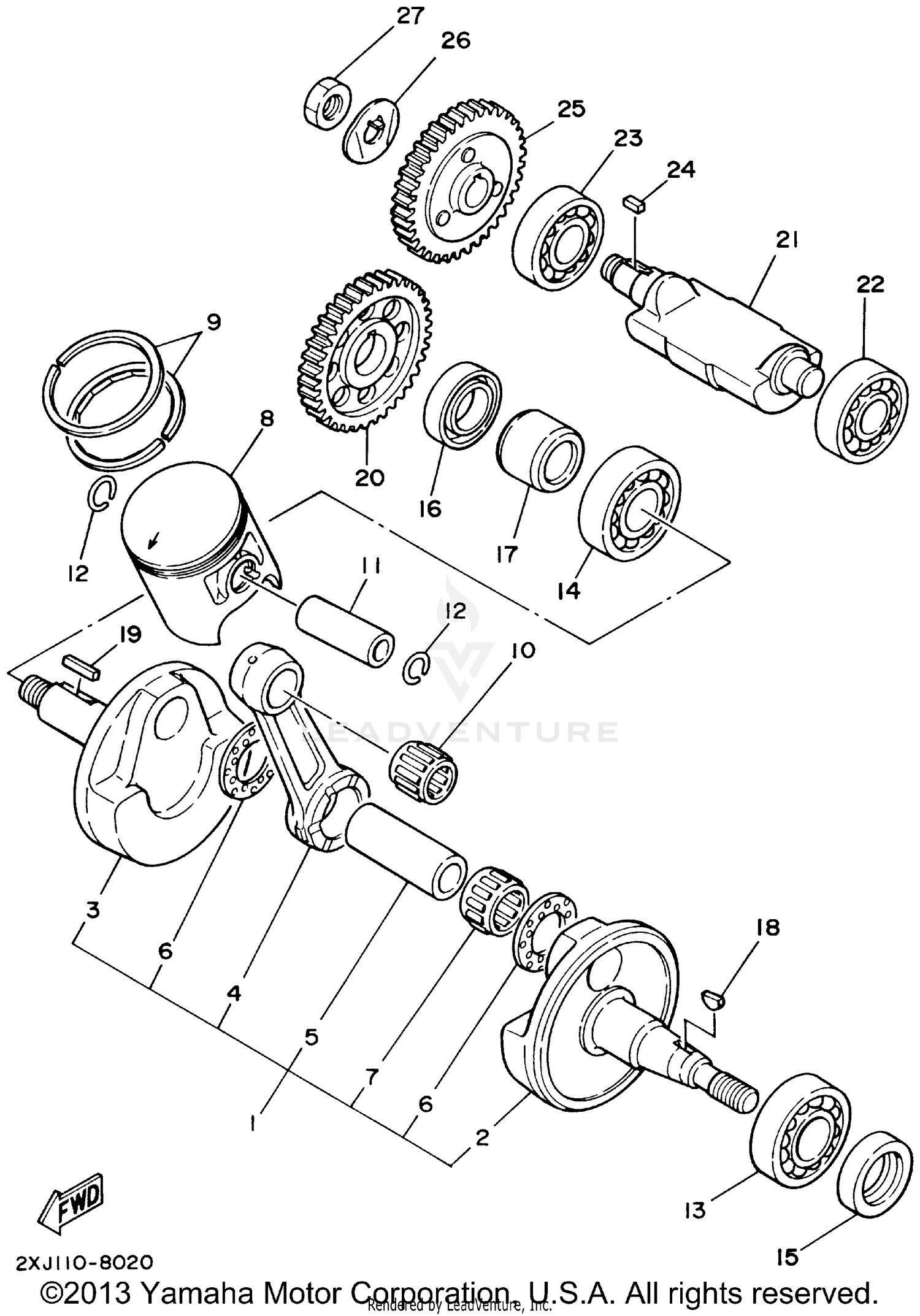

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
37F-11400-00-00
|
$537.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK 1
37F-11412-00-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
37F-11422-00-00
|
$162.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD, CONNECTING
43G-11651-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CRANK 1
37F-11681-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
90209-22248-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CYLINDRICAL
93310-522L4-00
Superseded by 93310-523D2-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON (STD)
2XJ-11631-01-97
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.50MM O/S)
2XJ-11636-01-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.25MM O/S)
2XJ-11635-01-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON RING SET (STD)
3JM-11601-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.50MM O/S)
3JM-11601-20-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.25MM O/S)
3JM-11601-10-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93310-316H6-00
Superseded by 93310-316D6-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PISTON
4L0-11633-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
93450-17044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-20562-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-30556-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93102-25331-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93103-32099-00
Superseded by 93103-32183-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-206K3-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
KEY, STRAIGHT
90282-05047-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, DRIVE (43T)
10V-11536-01-00
|
$81.99 | ||
|
Unavailable |
|||
|
#21
WEIGHT 1
37F-11454-00-00
|
$132.99 | ||
|
Unavailable |
|||
|
#22
BEARING
93306-20211-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
93306-20335-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
KEY, STRAIGHT
90282-05013-00
Superseded by 90282-05065-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BALANCER WEIGHT GEAR COMP.
37F-11530-00-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, LOCK
90215-12235-00
Superseded by 90215-12272-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
90170-12337-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
