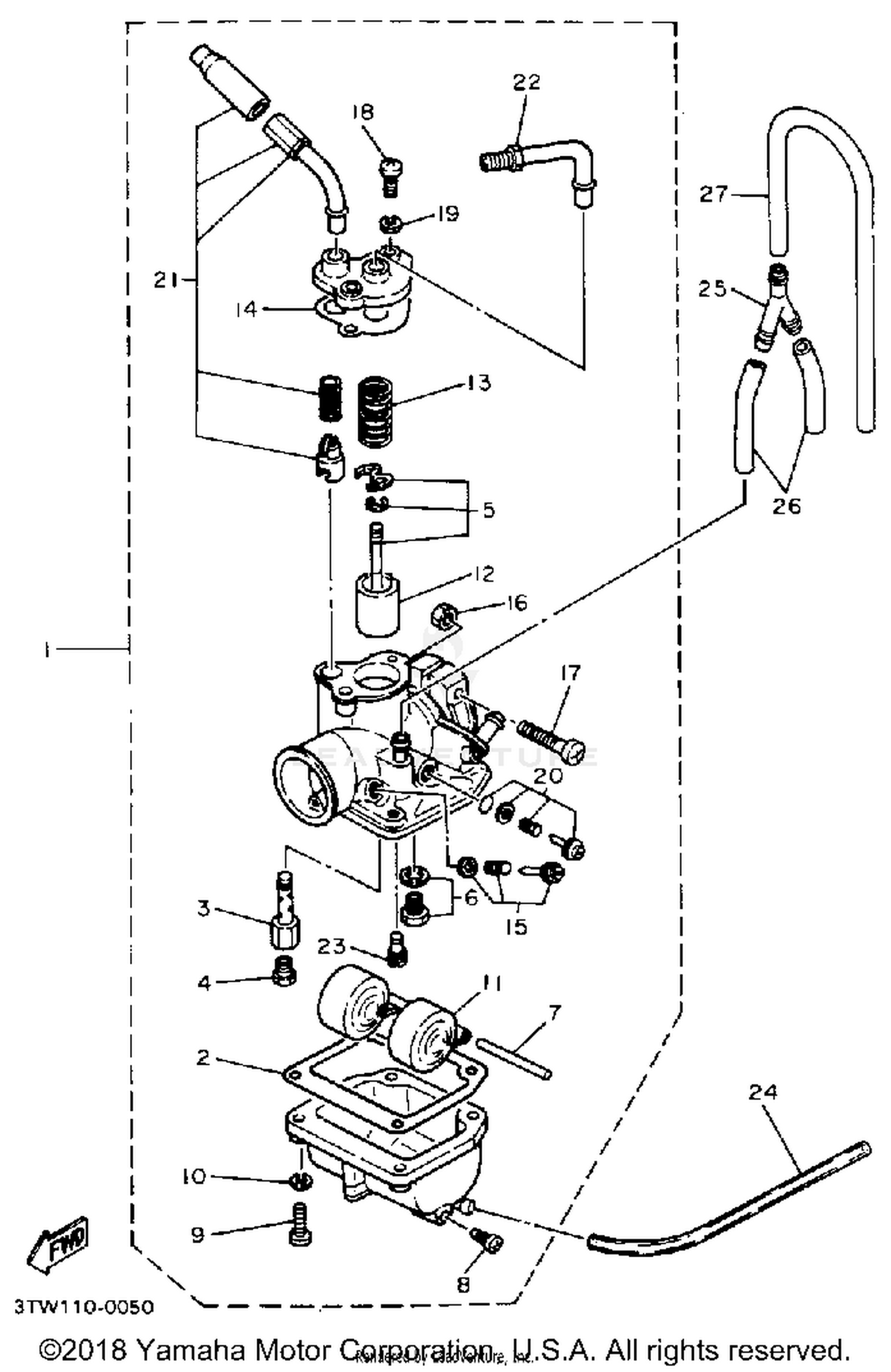

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
1RY-14101-01-00
Superseded by 1RY-14101-02-00
|
$155.99 | ||
|
Unavailable |
|||
|
#2
GASKET, FLOAT CHAMBER
296-14184-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NOZZLE, MAIN
1AJ-14141-78-00
|
$16.49 | ||
|
Unavailable |
|||
|
#4
JET MAIN (87.5)
18A-14143-68-00
Superseded by 18A-1414A-68-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NEEDLE, SET
18E-1490J-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#6
NEEDLE VALVE SET
21W-14107-12-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, DRAIN
12R-14191-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLOAT
2E9-14185-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE, THROTTLE 1
45V-14112-30-00
|
$85.99 | ||
|
Unavailable |
|||
|
#13
SPRING, THROTTLE VALVE
296-14131-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
296-14198-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
AIR SCREW SET
59L-14104-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98501-05030-00
Superseded by 98517-05030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98580-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#20
THROTTLE SCREW SET
18A-14103-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
STARTER SET
1RY-1410A-01-00
Superseded by 1RY-1410A-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#22
NUT, CABLE ADJUSTING
522-14161-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, PILOT #20
193-14142-20-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE (L200)
90445-05390-00
Superseded by 90445-05N13-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WAY 3
90413-05015-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
UNAVAILABLE IN PRICE BOOK
90450-70A70-0
|
|||
|
Unavailable |
|||
|
#27
HOSE (L310)
90445-071E2-00
Superseded by 90445-072G8-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
