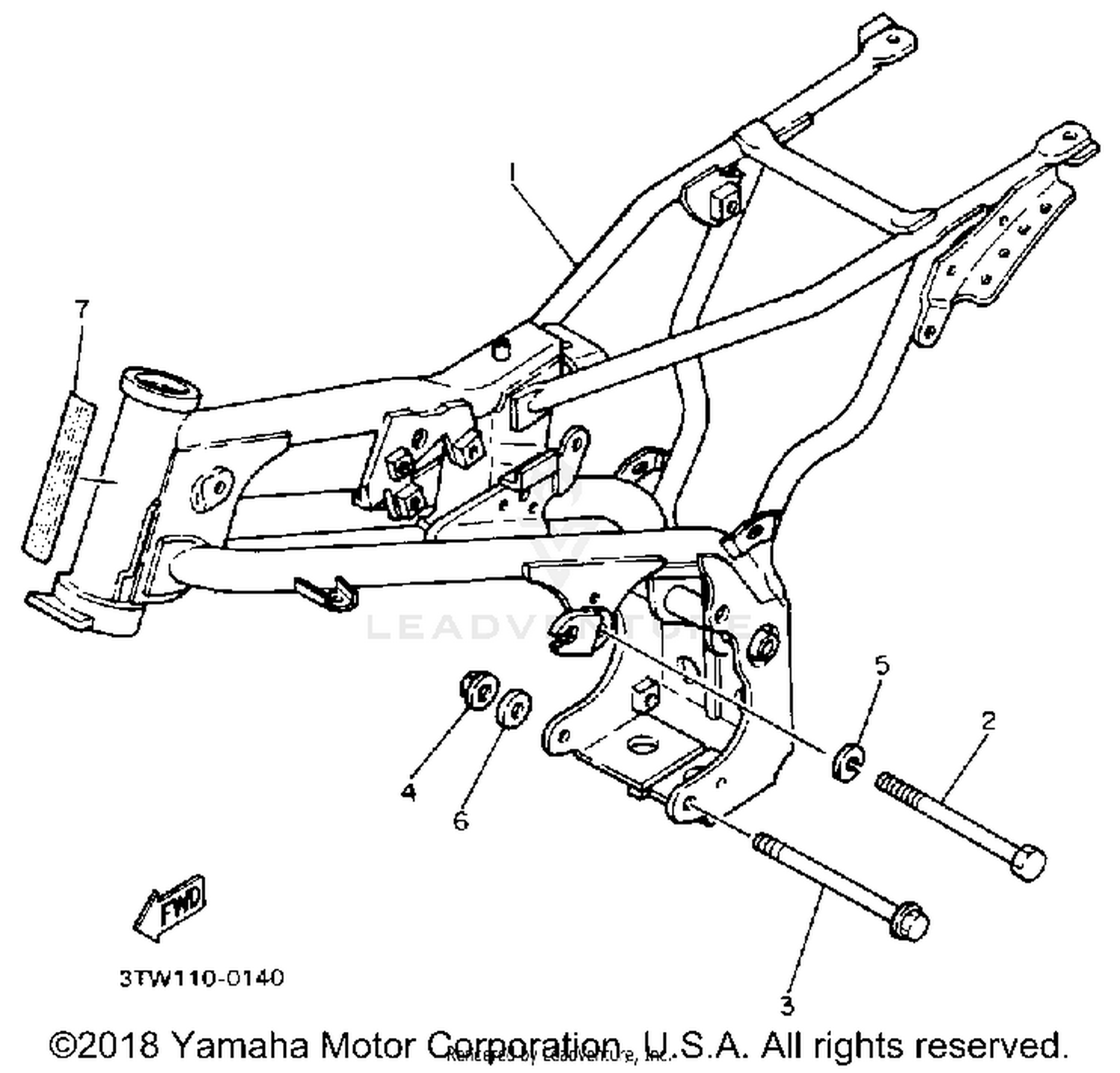

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
1RY-21110-00-FH
|
$432.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90101-08286-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95811-08120-00
Superseded by 95817-08120-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-081A6-00
Superseded by 90201-086P8-00
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, EPA
3TW-2179X-00-00
|
$22.99 | ||
|
Unavailable |
|||
