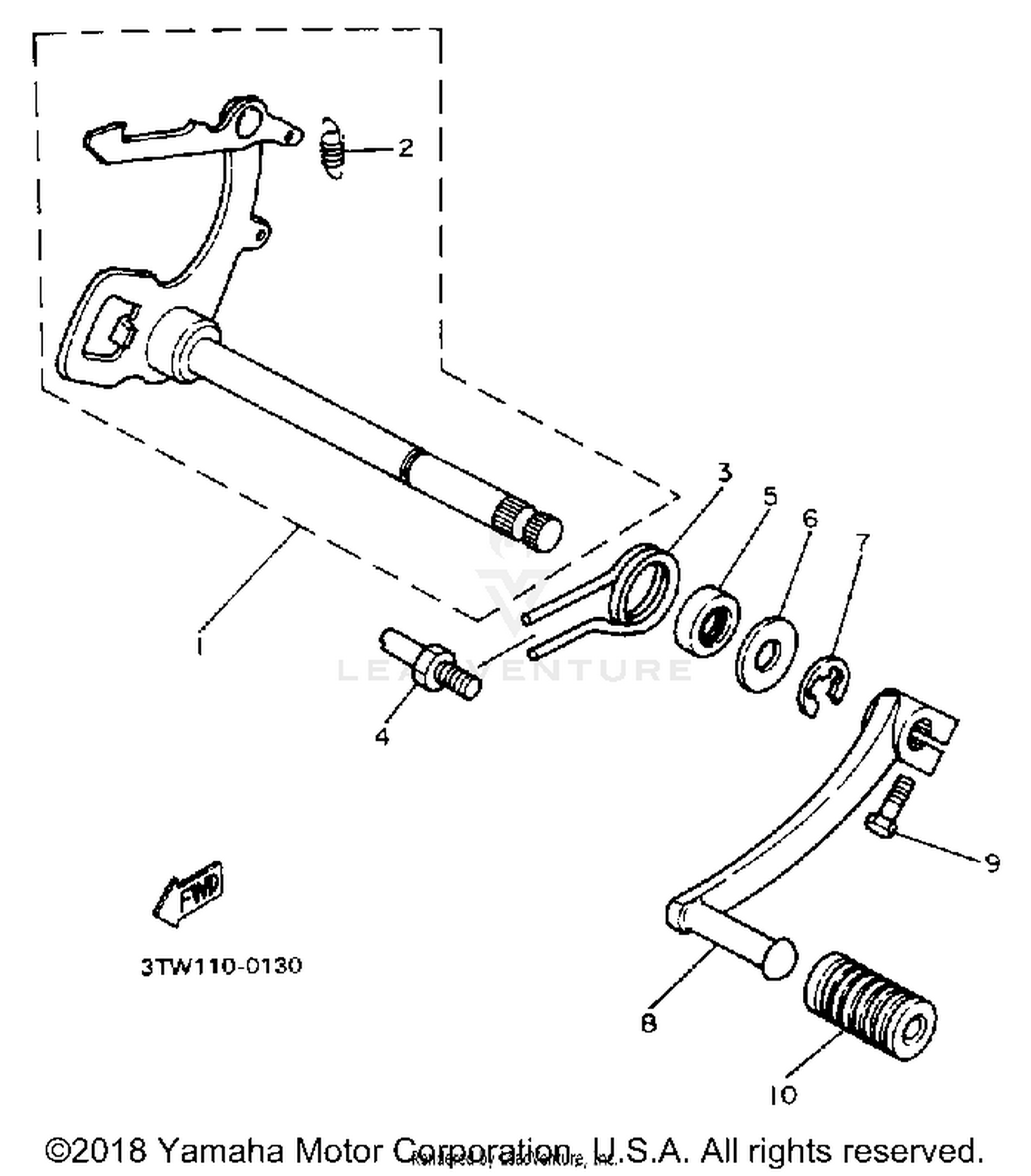

1990 Yamaha BW80A BIG WHEEL SHIFT SHAFT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT SHAFT ASSY
58H-18101-03-00
Superseded by 58H-18101-04-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, TENSION
90506-08122-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING,TORSION
90508-32263-00
Superseded by 90508-320A6-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, SCREW
278-18127-00-00
Superseded by 278-18127-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL (SD 12-22-5 HS)
93102-12321-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-12575-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99006-10600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PEDAL, SHIFT
1RY-18111-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#9
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, CHANGE PEDAL
132-18113-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
