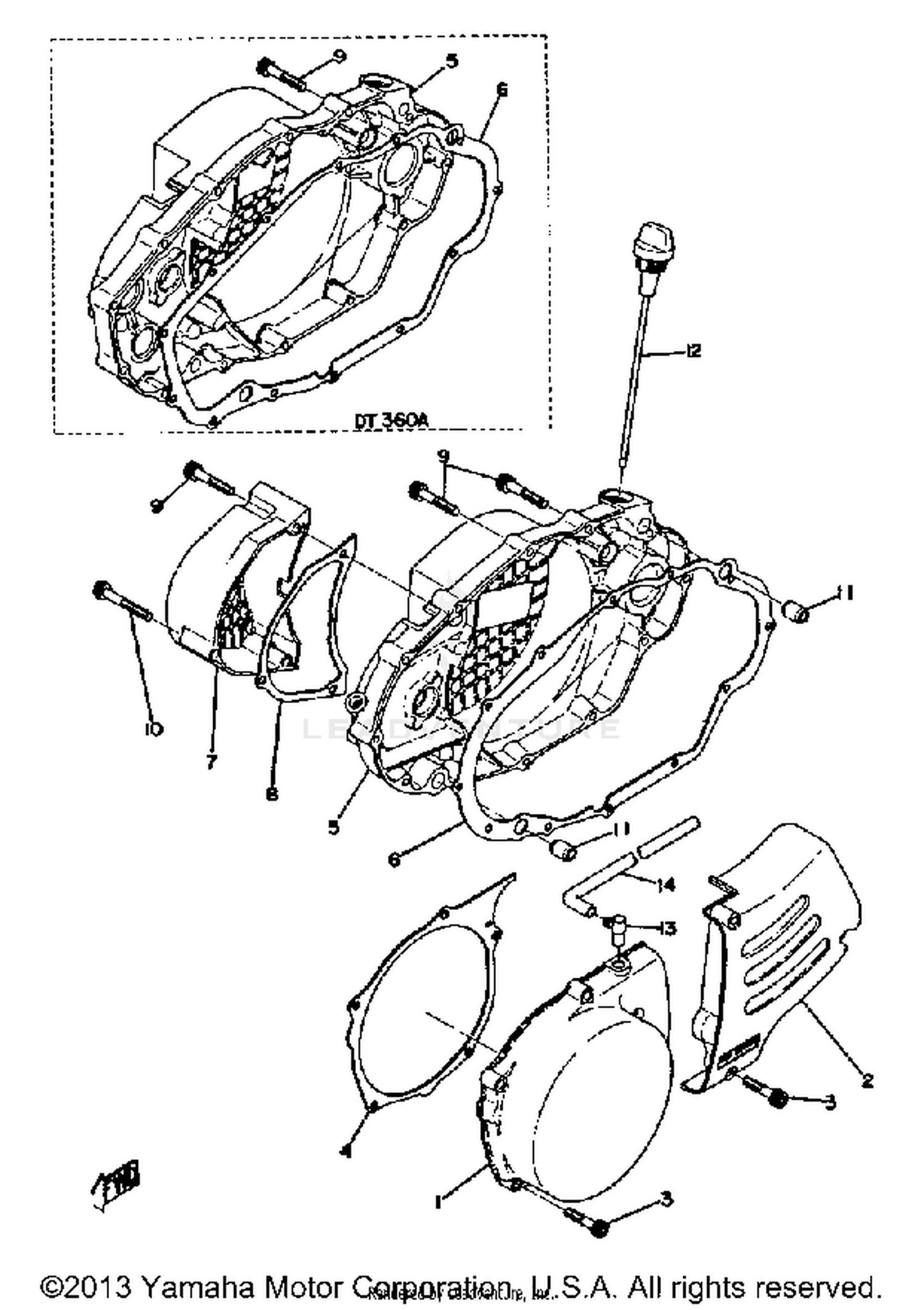

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L
438-15411-00-00
|
$67.10 | ||
|
Unavailable |
|||
|
#2
COVER, CRANKCASE R
438-15421-01-00
|
$89.99 | ||
|
Unavailable |
|||
|
#3
BOLT
901316-06030-00
|
|||
|
Unavailable |
|||
|
#4
GSKT,CRCS CVR
363-15451-00-00
Superseded by 363-15451-09-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, CRANKCASE R
438-15431-00-00
|
$101.99 | ||
|
Unavailable |
|||
|
#
COVER, CRANKCASE R
445-15431-01-00
|
$83.99 | ||
|
Unavailable |
|||
|
#6
GASKET, CRCS COVER R
363-15461-01-00
|
|||
|
Unavailable |
|||
|
#
GSKT,CRCSCVR 2
364-15461-01-00
Superseded by 364-15461-09-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, OIL PUMP
438-15416-01-00
|
|||
|
Unavailable |
|||
|
#8
GASKET,O/PMP CVR 1
363-15456-00-00
Superseded by 363-15456-09-00
|
$3.80 | ||
|
Unavailable |
|||
|
#9
BOLT
91316-06035-00
Superseded by 91317-06035-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91316-06045-00
Superseded by 91317-06045-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
91830-22016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, OIL
322-15363-00-00
|
$33.80 | ||
|
Unavailable |
|||
|
#13
BREATHER
498-15371-00-00
Superseded by 583-15371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE (395-14197-00)
90446-07094-00
|
$4.20 | ||
|
Unavailable |
|||
