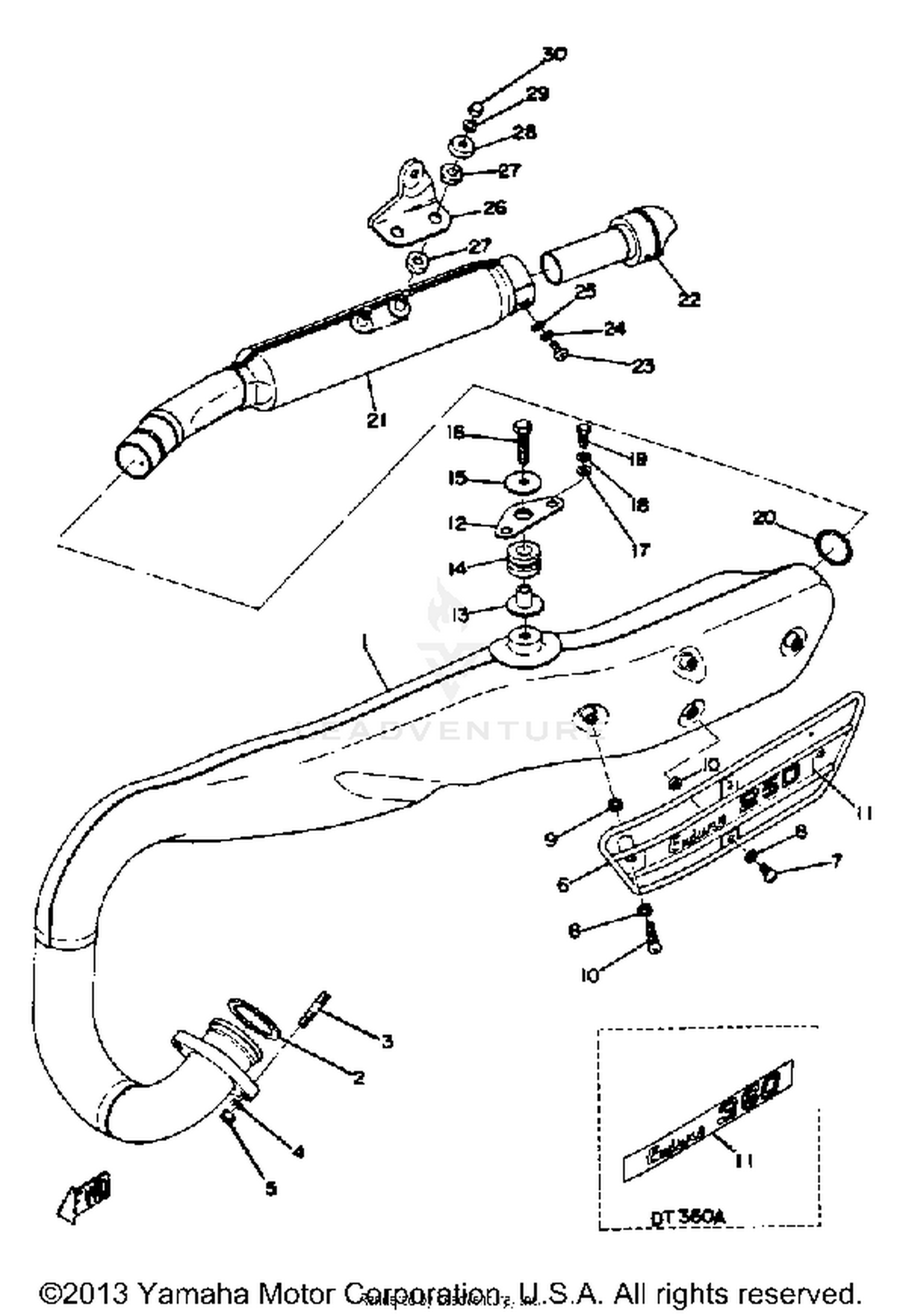

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY
438-14610-00-00
|
$318.99 | ||
|
Unavailable |
|||
|
#2
GASKET, EXHAUST PIPE
214-14613-00-00
Superseded by 214-14613-09-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, STUD
90116-06146-00
|
$5.49 | ||
|
Unavailable |
|||
|
#4
WASHER, SPRING
92903-08100-00
Superseded by 92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
95303-08600-00
Superseded by 95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#
NUT
95301-08600-00
Superseded by 95333-08600-00
|
$2.35 | ||
|
Unavailable |
|||
|
#6
PROTECTOR, MUFFLER
498-14718-00-93
|
$22.99 | ||
|
Unavailable |
|||
|
#7
SCREW, BIND
98901-06012-00
Superseded by 98980-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90202-06010-00
Superseded by 90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90202-05005-00
Superseded by 90202-05188-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, BIND
91903-06035-00
Superseded by 98980-06035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
EMBLEM, PROTECTOR
445-14729-00-00
|
$0.85 | ||
|
Unavailable |
|||
|
#
EMBLEM, PROTECTOR
498-14729-01-00
|
$4.15 | ||
|
Unavailable |
|||
|
#12
STAY, MUFFLER 1
437-14771-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#13
COLLAR
90387-08242-00
|
$5.99 | ||
|
Unavailable |
|||
|
#14
GROMMET
90480-20132-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97313-08035-00
Superseded by 97013-08035-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92903-06100-00
Superseded by 92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON DEEP R
97321-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-27250-00
|
$8.99 | ||
|
Unavailable |
|||
|
#21
SILENCER, EXHAUST
438-14753-02-00
|
$112.99 | ||
|
Unavailable |
|||
|
#22
PIPE, OUTLET
438-14752-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92903-06100-00
Superseded by 92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#25
WASHER, PLAIN
92903-06200-00
Superseded by 92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
STAY, MUFFLER
438-14781-00-00
|
$10.66 | ||
|
Unavailable |
|||
|
#27
DAMPER, MUFFLER
438-14757-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#28
WASHER
90209-06061-00
|
$4.40 | ||
|
Unavailable |
|||
|
#29
WASHER, SPRING
92903-06100-00
Superseded by 92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#30
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
