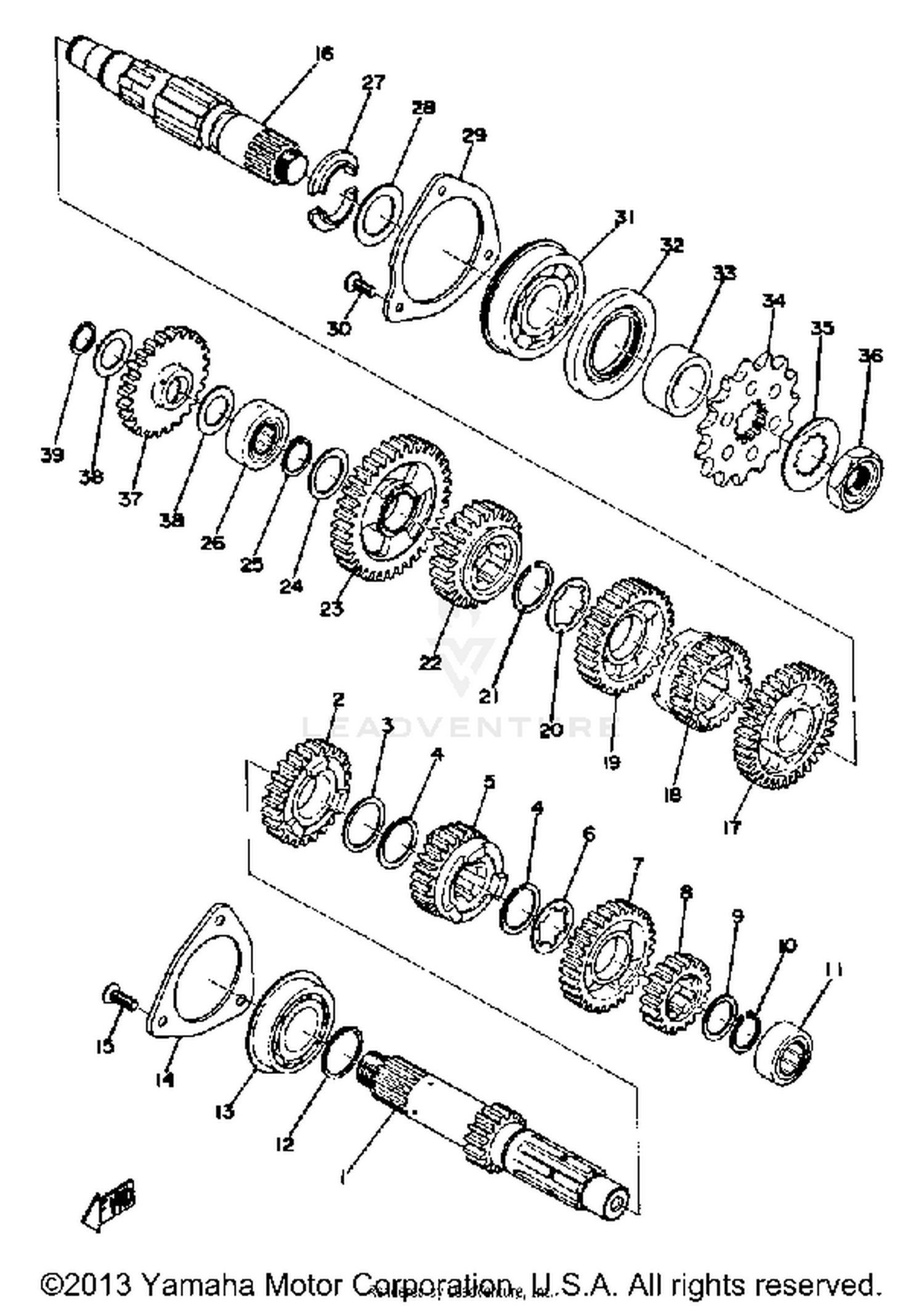

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (15T)
438-17411-00-00
|
$83.27 | ||
|
Unavailable |
|||
|
#
AXLE, MAIN (15T)
445-17411-00-00
|
$83.27 | ||
|
Unavailable |
|||
|
#2
GEAR, 4TH PINION (26T)
438-17141-00-00
|
$75.12 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE
90201-25490-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-25019-00
Superseded by 93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION (23T)
438-17131-01-00
|
$67.99 | ||
|
Unavailable |
|||
|
#6
WASHER (T=0.5)
90209-22082-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 5TH PINION (30T)
438-17151-00-00
|
$99.14 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION (19T)
438-17121-00-00
|
$57.16 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
93410-19015-00
Superseded by 99009-19400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93311-42012-00
Superseded by 93311-42077-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM, DRIVE AXLE
168-17428-01-05
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#13
BEARING (B4205)
93304-20501-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BEARING (93306-20515)
93306-20515-00
Superseded by 93306-20535-00
|
$20.99 | ||
|
Unavailable |
|||
|
#14
PLATE, BEARING COVER
445-15383-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#
PLATE, BEARING COVER
363-15383-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
SCREW, FLAT HEAD
92701-06015-00
Superseded by 98707-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SCREW, PAN HEAD
92503-06015-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
AXLE, DRIVE
438-17421-01-00
|
|||
|
Unavailable |
|||
|
#
AXLE, DRIVE
445-17421-00-00
|
$88.74 | ||
|
Unavailable |
|||
|
#17
GEAR, 2ND WHEEL (34T)
214-17221-10-00
|
$64.22 | ||
|
Unavailable |
|||
|
#18
GEAR, 5TH WHEEL (23T)
438-17251-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#19
GEAR, 3RD WHEEL (30T)
438-17231-00-00
|
$53.90 | ||
|
Unavailable |
|||
|
#20
WASHER (T=0.5)
90209-22082-00
|
$9.49 | ||
|
Unavailable |
|||
|
#21
CIRCLIP
93440-25019-00
Superseded by 93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
GEAR, 4TH WHEEL (26T)
438-17241-00-00
|
$58.78 | ||
|
Unavailable |
|||
|
#23
GEAR, 1ST WHEEL (38T)
214-17211-10-00
|
$80.56 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP
93410-19015-00
Superseded by 99009-19400-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
BEARING
93313-32008-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BEARING
93313-31709-00
|
$26.12 | ||
|
Unavailable |
|||
|
#27
SPACER, DRIVE AXLE
156-17429-00-00
|
$7.94 | ||
|
Unavailable |
|||
|
#28
SHIM, DRIVE AXLE
168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#29
PLATE, BEARING COVER
363-15381-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#30
SCREW, COUNTERSUNK
98701-05012-00
Superseded by 98707-05012-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, CYLINDER. #90
93306-30511-00
Superseded by 93390-00012-00
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL, SD-TYPE
93102-35054-00
Superseded by 93102-35109-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-25193-00
|
$5.49 | ||
|
Unavailable |
|||
|
#34
SPROCKET, DRIVE (13T)
214-17461-30-00
Superseded by 9383E-13216-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
214-17461-50-00
Superseded by 4DN-17460-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE 16T (16T)
214-17461-60-00
Superseded by 9383E-16106-00
|
$15.95 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVE (14T)
214-17461-40-00
Superseded by 9383E-14215-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, LOCK
90215-21022-00
Superseded by 90215-21290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, LOCK
90179-18020-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
GEAR, KICK IDLE (23T)
363-15651-00-00
|
$43.24 | ||
|
Unavailable |
|||
|
#
GEAR, KICK IDLE (23T)
275-15651-00-00
|
$65.99 | ||
|
Unavailable |
|||
|
#38
WASHER, PLATE
90201-17255-00
Superseded by 90201-177G4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM 1 (1.0T)
164-17417-00-00
Superseded by 164-17417-00-10
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CIRCLIP
93410-15005-00
Superseded by 99009-15400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
CIRCLIP
93410-17008-00
Superseded by 99009-17400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
