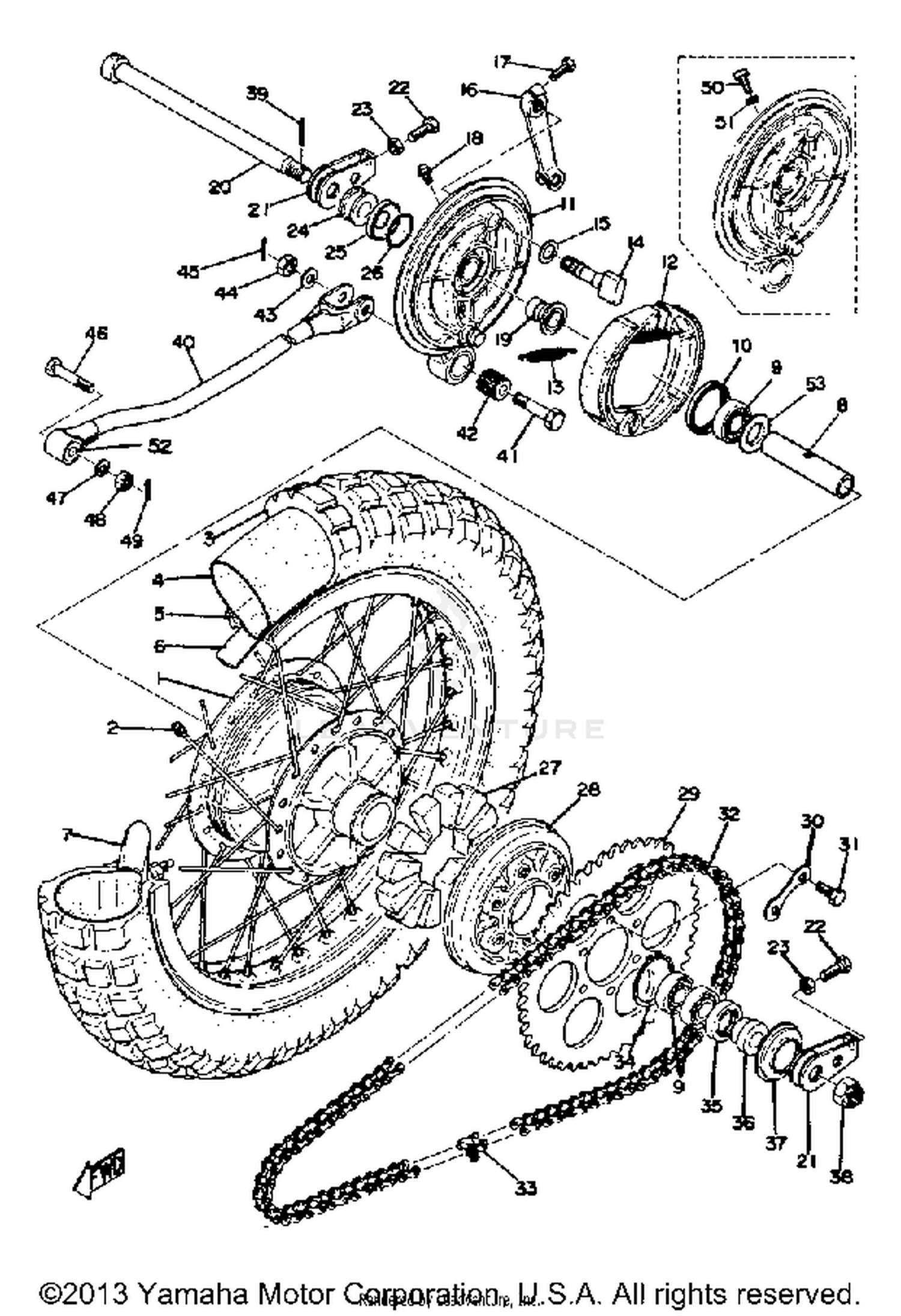

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
438-25311-00-00
|
$149.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
438-25304-00-00
|
$62.60 | ||
|
Unavailable |
|||
|
#3
TIRE 400X18 DUN TRI UNI
94140-18317-00
|
$50.99 | ||
|
Unavailable |
|||
|
#4
TUBE (110-140/80-100-18 M/C)
94237-18120-00
Superseded by 94212-18188-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM 1.85X18 (1.85B-18)
94418-18051-00
|
$72.47 | ||
|
Unavailable |
|||
|
#6
BAND, RIM (2.50-18)
94340-18022-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, BEAD
1T2-25394-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
275-25317-00-00
Superseded by 90560-17311-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-20309-00
Superseded by 93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL, SO-TYPE
93104-46029-00
|
$2.52 | ||
|
Unavailable |
|||
|
#11
PLATE, BRAKE SHOE
438-25320-10-00
|
$73.99 | ||
|
Unavailable |
|||
|
#12
BRAKE SHOE KIT
214-25130-00-00
Superseded by 3GW-W253A-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TENSION
90507-20002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAMSHAFT
214-25351-00-00
Superseded by 214-25351-01-00
|
$19.99 | ||
|
Unavailable |
|||
|
#15
SHIM, CAMSHAFT
148-25353-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER, CAMSHAFT (168-25355-00)
168-25355-00-00
Superseded by 4V5-25355-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#17
BOLT
97321-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
NIPPLE, GREASE
93700-06004-00
Superseded by 93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSHING, SHAFT
90387-17450-00
|
$7.99 | ||
|
Unavailable |
|||
|
#20
AXLE,WHEEL
150-25381-00-00
Superseded by 150-25381-01-00
|
$53.99 | ||
|
Unavailable |
|||
|
#21
PULLER, CHAIN 2
168-25389-00-00
Superseded by 12R-25389-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#22
BOLT
90101-08034-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-17141-00
Superseded by 90387-170X9-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, PLATE
275-25327-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#26
O-RING
93210-31114-00
Superseded by 93210-31MJ5-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER
275-25364-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#28
CLUTCH, HUB
275-25366-00-00
|
$57.18 | ||
|
Unavailable |
|||
|
#29
SPROCKET, DRIVN 43T
214-25443-10-33
|
$53.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 44T
214-25444-10-33
|
$53.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 48T
214-25448-10-00
Superseded by 214-25448-10-33
|
$53.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 47T
214-25447-10-00
|
$43.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 45T
214-25445-10-33
|
$53.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 47T
214-25446-10-33
Superseded by 214-25447-10-00
|
$43.99 | ||
|
Unavailable |
|||
|
#30
WASHER
214-25412-00-00
Superseded by 22W-25412-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FITTING
90109-08377-00
|
$3.65 | ||
|
Unavailable |
|||
|
#32
CHAIN 520DS-104L
94585-20104-00
Superseded by 9Y585-20103-00
|
$105.99 | ||
|
Unavailable |
|||
|
#33
JOINT CHAIN
94680-11001-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
CIRCLIP
93410-52034-00
Superseded by 93410-52061-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
OIL SEAL, DD-TYPE (DD-25-40-9)
93106-25003-00
|
$4.54 | ||
|
Unavailable |
|||
|
#36
COLLAR, SHAFT
90387-17140-00
|
$5.99 | ||
|
Unavailable |
|||
|
#37
COVER, DUST
275-25367-00-00
|
$7.72 | ||
|
Unavailable |
|||
|
#38
NUT, CASTLE
90171-16007-00
|
$14.49 | ||
|
Unavailable |
|||
|
#39
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BAR, TENSION
363-25371-00-00
|
$41.64 | ||
|
Unavailable |
|||
|
#41
BOLT, TENSION BAR
90102-10007-00
|
$1.90 | ||
|
Unavailable |
|||
|
#42
BUSHING
275-22123-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#43
WASHER, SPRING
92903-10100-00
Superseded by 92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, TENSION BAR
90102-08019-00
|
$1.45 | ||
|
Unavailable |
|||
|
#47
WASHER, SPRING
92903-08100-00
Superseded by 92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT, SLOTTED
95303-08900-00
Superseded by 95307-08900-00
|
$2.10 | ||
|
Unavailable |
|||
|
#49
PIN, COTTER
91401-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
SCREW, PAN HEAD
92503-06020-00
Superseded by 98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
WASHER, SPRING
92903-06100-00
Superseded by 92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#52
BUSHING
363-22123-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#53
FLANGE, SPACER
146-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
