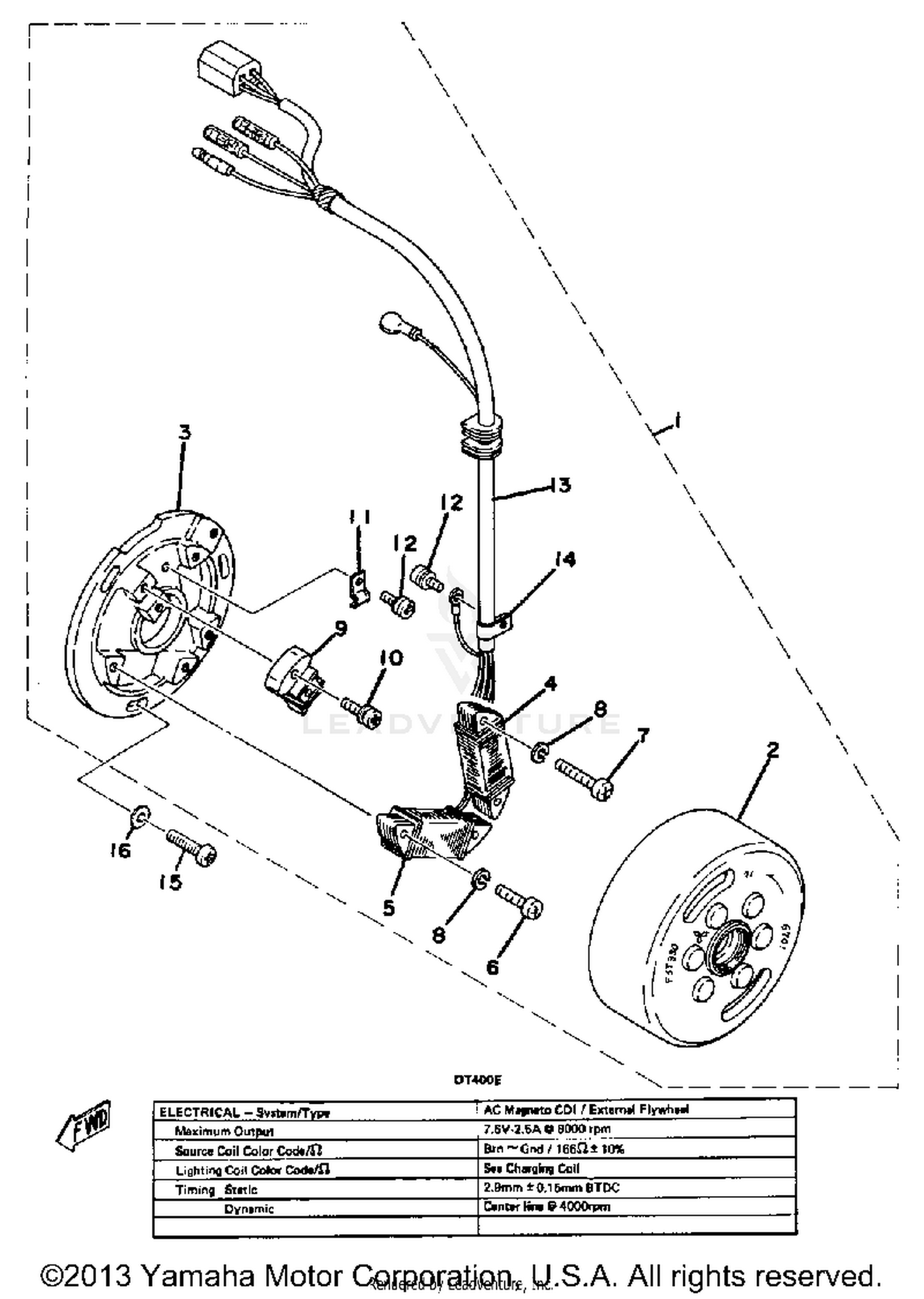

Cdi Magneto Dt400e Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI MAGNETO ASSEMBLY
1M2-85500-22-00
|
$345.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
1M2-85550-21-00
|
$292.99 | ||
|
Unavailable |
|||
|
#3
BASE, MAGNETO
1M2-85509-20-00
|
$88.99 | ||
|
Unavailable |
|||
|
#4
COIL SOURCE 2
1M2-85512-20-00
|
$95.99 | ||
|
Unavailable |
|||
|
#5
COIL, LIGHTING 1
1M2-85513-22-00
|
$116.99 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
98580-05035-00
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
92503-05025-00
|
$1.05 | ||
|
Unavailable |
|||
|
#8
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
COIL, PULSER
1M2-85580-20-00
|
$152.99 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
97602-04125-00
Superseded by 98517-04025-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, LEAD
445-85528-20-00
|
$2.17 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEAD WIRE ASSEMBLY
1M2-85515-21-00
|
$26.68 | ||
|
Unavailable |
|||
|
#14
CLAMP
445-81328-20-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
