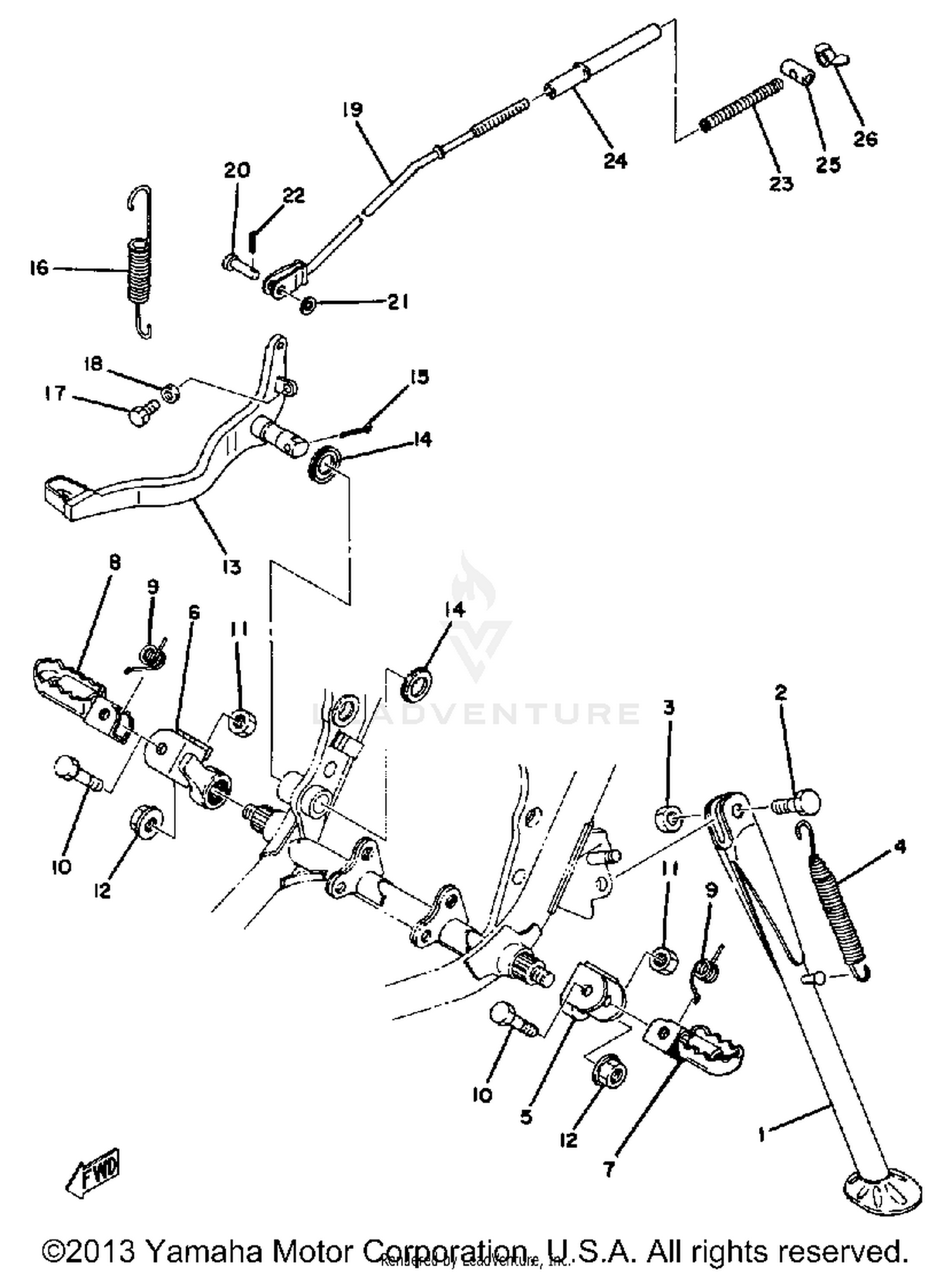

Stand Footrest Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
2Y0-27311-00-33
|
$54.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-103A1-00
Superseded by 90109-10473-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90507-29021-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, FOOTREST 1
1M1-27412-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#6
BRACKET, FOOTREST 2
1M1-27422-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#7
FOOTREST 1
22W-27411-01-90
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FOOTREST 2 (3R1-27421-00)
22W-27421-01-90
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
90101-08244-00
|
$0.95 | ||
|
Unavailable |
|||
|
#11
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SELF-LOCKING
90185-12072-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PEDAL, BRAKE
1M1-27211-01-33
|
$40.99 | ||
|
Unavailable |
|||
|
#14
COVER, DUST
498-27235-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, TENSION
90506-18289-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90109-06339-00
|
$2.20 | ||
|
Unavailable |
|||
|
#18
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, BRAKE
483-27231-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#20
PIN, CLEVIS
90240-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER
1M1-27244-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
