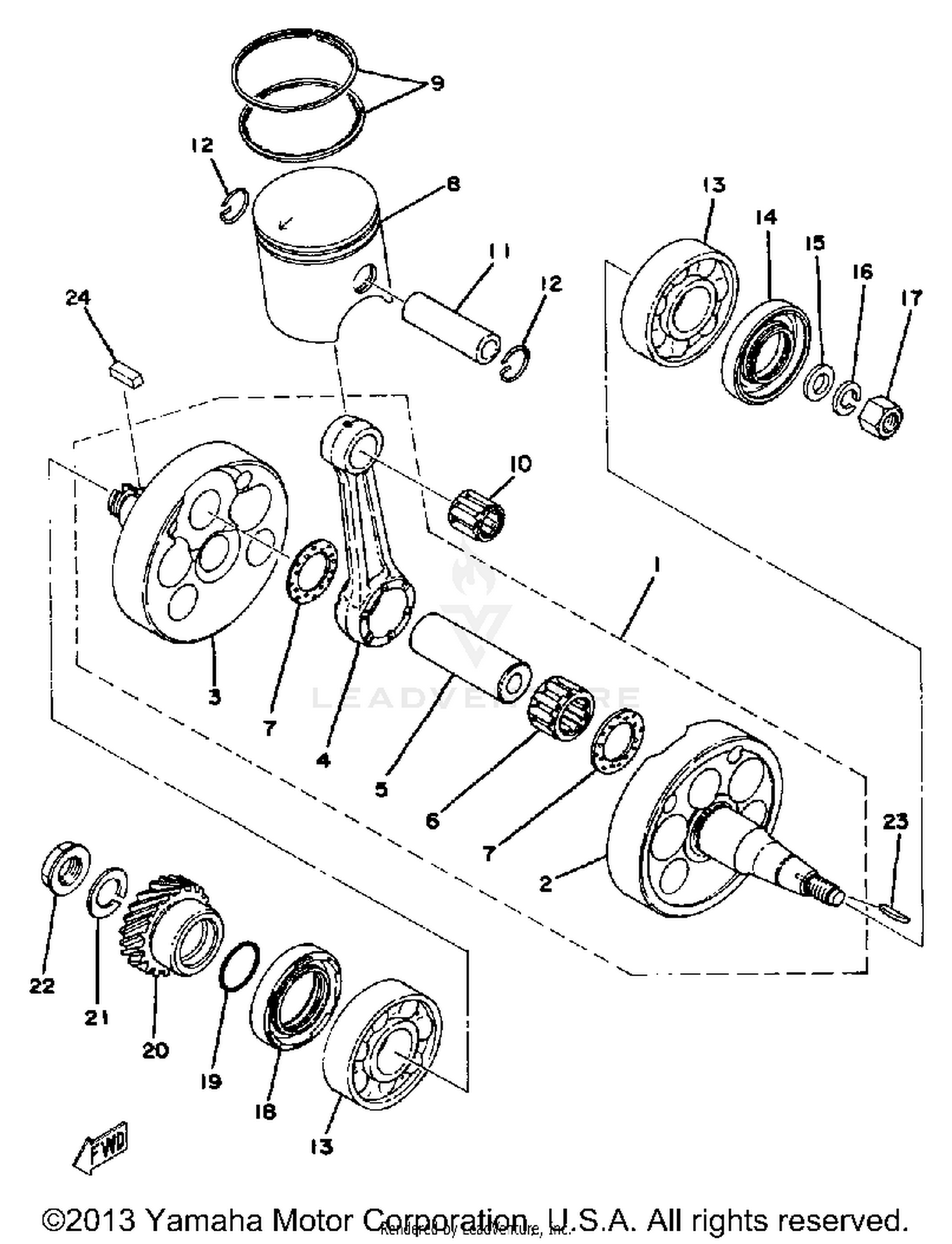

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
1M1-11400-01-00
|
$329.99 | ||
|
Unavailable |
|||
|
#
CRANKSHAFT ASSEMBLY
1M2-11400-00-00
|
$348.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
1M2-11412-01-00
|
$153.99 | ||
|
Unavailable |
|||
|
#
CRANK 1
1M1-11412-01-00
|
$105.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
1M1-11422-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#
CRANK 2
1M2-11422-01-00
|
$128.99 | ||
|
Unavailable |
|||
|
#4
ROD, CONNECTING
498-11651-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#5
PIN, CRANK 1
2X4-11681-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, CYLINDRICAL
93310-425N4-00
Superseded by 93310-425P2-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, (90209-25220)
90209-25085-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON STD (69.96MM STD)
1M1-11631-01-96
|
$193.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50 (70.50MM 2ND
1M1-11636-01-00
|
$137.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25 (70.25MM 1ST
1M1-11635-01-00
|
$193.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75 (70.75MM 3RD
1M1-11637-01-00
|
$193.99 | ||
|
Unavailable |
|||
|
#
PISTON STD (84.96MM STD)
1M2-11631-01-96
|
$244.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50 (85.50MM 2ND
1M2-11636-01-00
|
$216.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00 (86.00MM 4TH
1M2-11638-01-00
|
$127.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75 (85.75MM 3RD
1M2-11637-01-00
|
$216.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25 (85.25MM 1ST
1M2-11635-01-00
|
$244.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00 (4TH O.S.)
1M1-11638-01-00
|
$102.99 | ||
|
Unavailable |
|||
|
#9
PISTON 4 O/S 1.00 (4TH O.S.)
1M1-11638-01-00
|
$102.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET STD (STD)
1M1-11610-00-00
|
$102.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND (2ND O.S.)
1M1-11610-20-00
|
$37.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 4TH (4TH O.S.)
1M1-11610-40-00
|
$55.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 1ST (1ST O.S.)
1M2-11610-11-00
|
$62.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT STD
1M1-11630-01-00
|
$57.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 4TH
1M2-11630-40-00
|
$48.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 3RD
1M2-11630-30-00
|
$48.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 2ND
1M2-11630-20-00
|
$48.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 1ST
1M2-11630-10-00
|
$48.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT STD
1M2-11630-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 4TH (4TH O.S.)
1M2-11610-41-00
|
$62.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 3RD (3RD O.S.)
1M2-11610-31-00
|
$62.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND (2ND O.S.)
1M2-11610-21-00
|
$62.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 3RD
1M1-11630-31-00
|
$72.42 | ||
|
Unavailable |
|||
|
#
PISTON KIT 2ND
1M1-11630-21-00
|
$47.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 1ST
1M1-11630-11-00
|
$39.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET STD (STD)
1M2-11610-01-00
|
$51.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 3RD (3RD O.S.)
1M1-11610-30-00
|
$43.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 1ST (1ST O.S.)
1M1-11610-10-00
|
$102.99 | ||
|
Unavailable |
|||
|
#10
BEARING
93310-218A6-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PISTON
275-11633-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PIN, PISTON
214-11633-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
93450-20026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-30615-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BEARING
93306-20622-00
Superseded by 93306-20627-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL (38W)
93103-30150-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-12593-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEXAGON
90170-12347-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL
93103-40091-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-29282-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, PRI DRIVE
1M1-16111-00-00
|
$64.78 | ||
|
Unavailable |
|||
|
#21
WASHER(N15)
92901-18100-00
Superseded by 92907-18100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-18172-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
KEY, STRAIGHT
90282-07019-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PIN, CRANK 1
2X4-11681-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#
BEARING, CYLINDRICAL
93310-425N4-00
Superseded by 93310-425P2-00
|
$70.99 | ||
|
Unavailable |
|||
|
#
WASHER, (90209-25220)
90209-25085-00
|
$11.49 | ||
|
Unavailable |
|||
|
#
ROD, CONNECTING
498-11651-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#
CONNECTING ROD ASSEMBLYASSY
5X5-11650-00-00
|
$302.99 | ||
|
Available to order. Add to View Price |
|||
