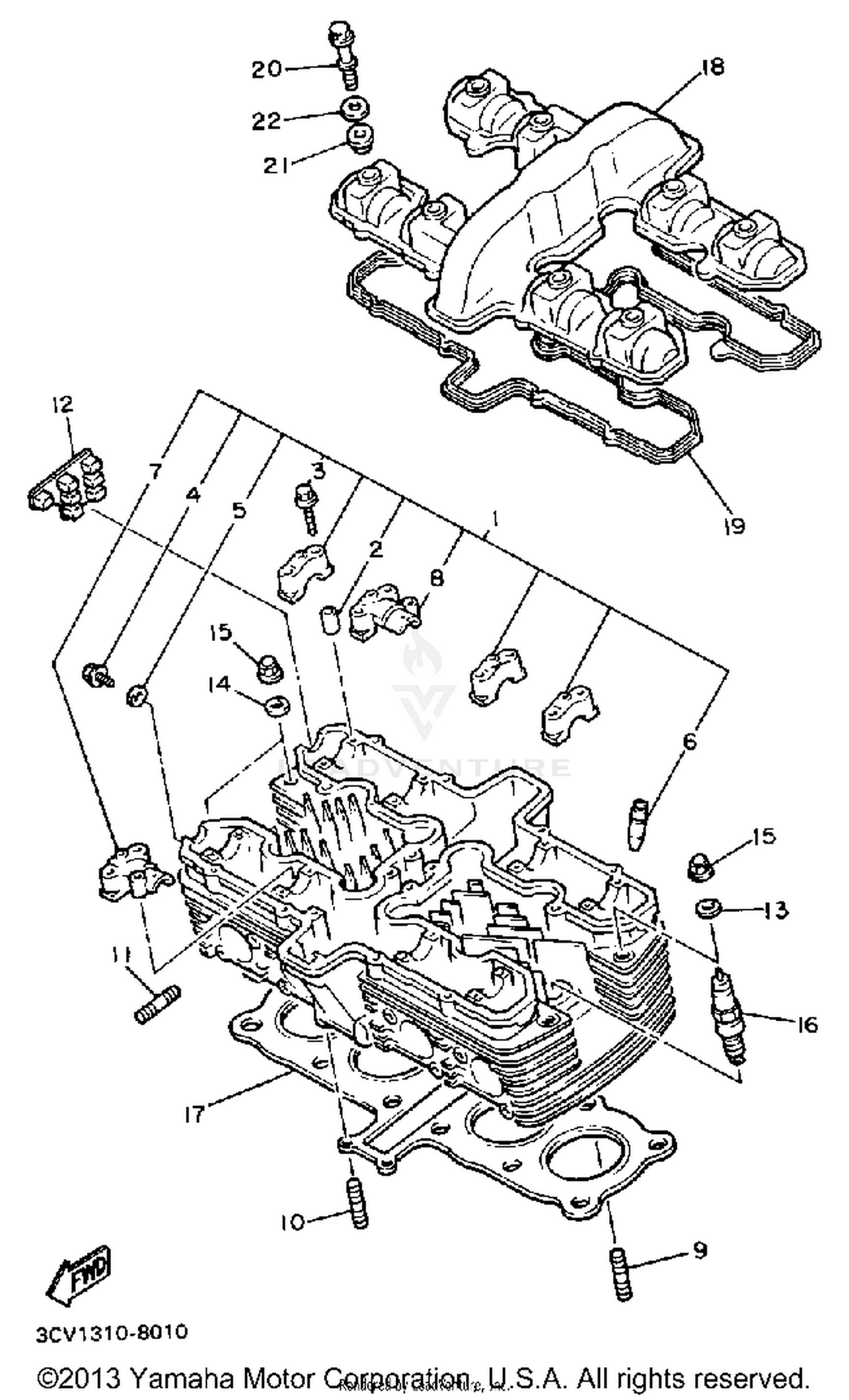

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
36Y-11101-02-00
Superseded by 36Y-11101-05-00
|
$2,215.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WASHER BASED
90105-06305-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, HEXAGON
90153-06045-00
Superseded by 90153-06029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GDE, INTK VLV 1 O/S
36Y-11133-10-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, CAMSHAFT 3
36Y-12193-10-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, CAMSHAFT 4
36Y-12178-10-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD
95612-06625-00
Superseded by 95617-06625-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD
95611-06630-00
Superseded by 90116-06466-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD
95611-08635-00
Superseded by 95617-08635-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
ABSORBER 1
3XW-11161-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-102G9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-10128-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CROWN
90176-10053-00
|
$4.00 | ||
|
Unavailable |
|||
|
#16
DP8EA9 NGK SPLUG 1
NGK-DP8EA-90-00
Superseded by DP8-EA900-00-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET,CYL HEAD 1
1TX-11181-00-00
Superseded by 1TX-11181-10-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, CYLINDER.HEAD 1
36Y-11191-01-00
|
$412.99 | ||
|
Unavailable |
|||
|
#19
GASKET, HEAD COVER 1
36Y-11193-00-00
Superseded by 5WM-11193-00-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90109-064F0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBBER, MOUNT 1
2GH-1111G-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
90209-11262-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
