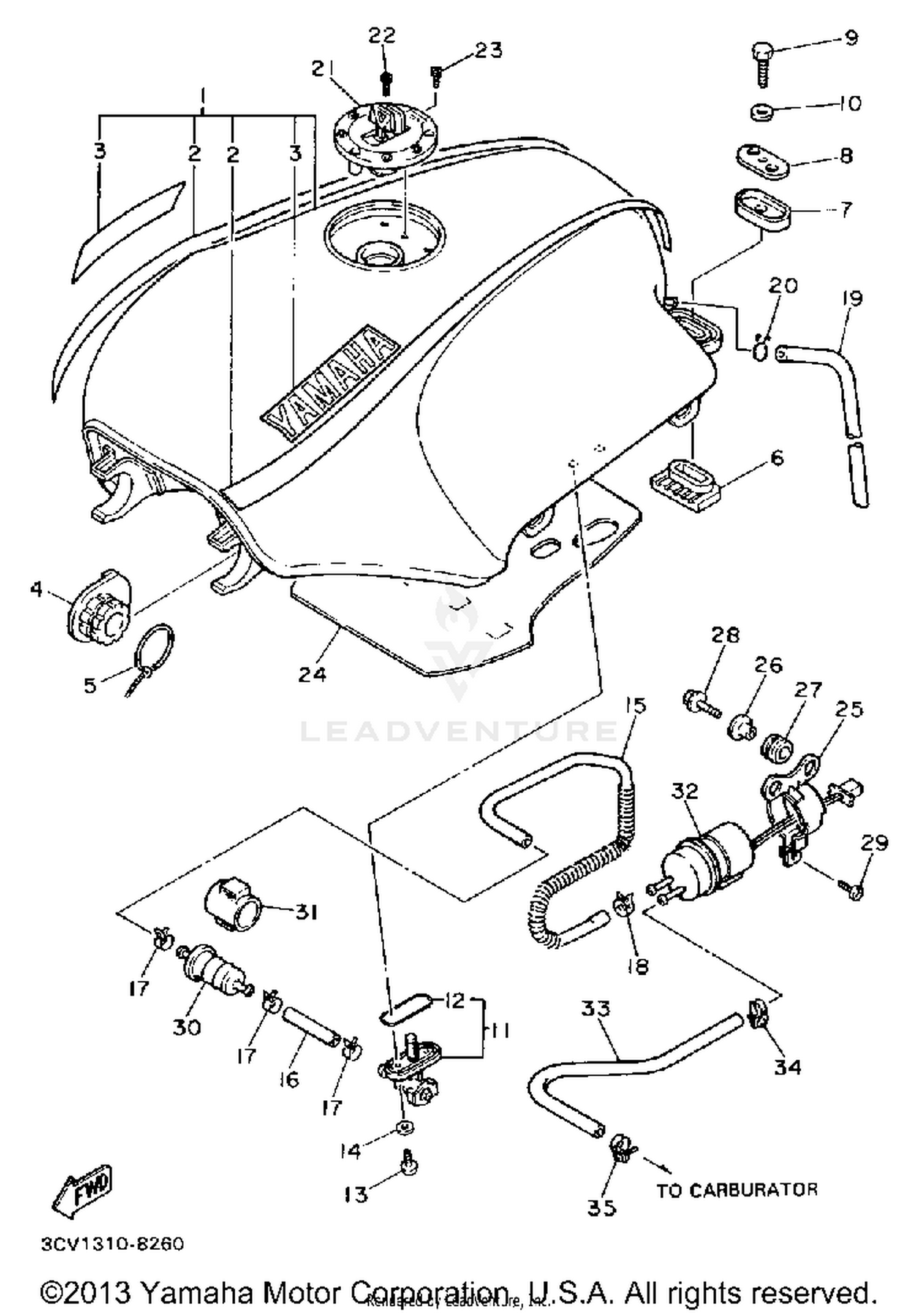

Fuel Tank (non-california Model) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK ASSY
3CV-24110-00-01
Superseded by 3CV-W2410-00-01
|
$1,165.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
3CV-24110-00-02
|
$745.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
3CV-24240-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET
3CV-24240-10-00
|
$97.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM, YAMAHA
99226-00040-00
Superseded by 99226-00160-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#
EMBLEM, YAMAHA
99224-00040-00
Superseded by 99224-00160-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 1
36Y-24181-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#5
BAND
12R-82591-00-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 2
36Y-24182-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#7
DAMPER, LOCATING 3
3Y6-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPECIAL
36Y-24186-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#9
BOLT,HEXAGON
97026-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUEL COCK ASSEMBLY 1
26H-24500-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
214-24512-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUEL PIPE ASSEMBLY
3CV-24310-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#16
HOSE
90445-136F8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, SCISSOR
90467-10091-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE (L650)
90445-105G5-00
Superseded by 90445-105K7-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP ASSY
1JK-24602-13-00
Superseded by 4FM-24602-20-00
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91311-05010-00
Superseded by 91314-05010-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL, AIR SHROUD 1
3CV-24125-00-00
|
$221.99 | ||
|
Unavailable |
|||
|
#25
BRACKET, FUEL PUMP
3CV-24491-00-00
Superseded by 3CV-24491-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-062L2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95816-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98506-05010-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#30
FILTER ASSY
1FK-24560-00-00
Superseded by 1FK-24560-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
UNAVAILABLE IN PRICE BOOK
1FK-24566-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
FUEL PUMP COMP.
3CV-13907-00-00
|
$621.99 | ||
|
Unavailable |
|||
|
#33
HOSE (L220)
90445-125F9-00
Superseded by 90445-126E7-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP,HOSE
90460-12256-00
Superseded by 90450-12002-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
90460-11149-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
