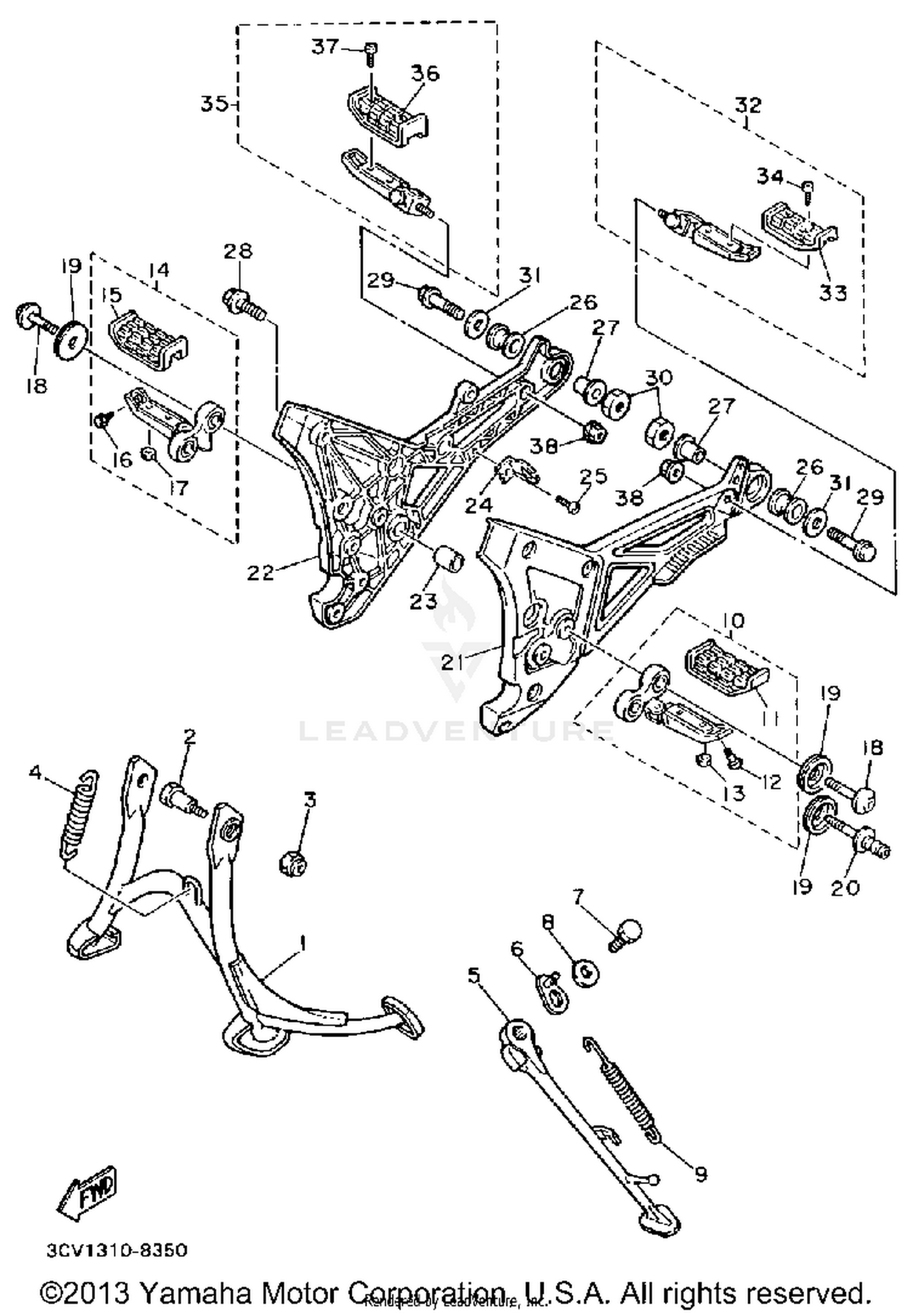

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
36Y-27111-01-33
|
$256.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-101E6-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
90185-10091-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-45278-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAND, SIDE
1TX-27311-00-35
Superseded by 1TX-27311-00-R4
|
$143.99 | ||
|
Unavailable |
|||
|
#6
HOOK, SIDE STAND
36Y-27352-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
90101-08662-00
Superseded by 97017-08020-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-081L6-00
Superseded by 90201-084K3-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-29358-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FRT FOOTREST ASSEMBLY LASSEMBLY
3CV-27410-00-00
|
$127.99 | ||
|
Unavailable |
|||
|
#11
COVER, FOOTREST
22N-27413-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90109-082A4-00
Superseded by 90109-08224-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FRT FOOTREST ASSEMBLY RASSEMBLY
3CV-27420-00-00
|
$127.99 | ||
|
Unavailable |
|||
|
#15
COVER, FOOTREST
22N-27413-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#16
BOLT
90109-082A4-00
Superseded by 90109-08224-00
|
$2.50 | ||
|
Unavailable |
|||
|
#17
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
90110-08123-00
Superseded by 90110-08221-00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
90209-08295-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90109-086E4-00
|
$32.99 | ||
|
Unavailable |
|||
|
#21
BRKT, SUB ASSEMBLY LEFT (LT)
3CV-2740A-00-00
|
$389.99 | ||
|
Unavailable |
|||
|
#22
BRKT, SUB ASSEMBLY RIGH (RT)
3CV-2740E-00-00
|
$447.99 | ||
|
Unavailable |
|||
|
#23
BUSH, SPEC''L NYLON
90386-20130-00
|
$12.99 | ||
|
Unavailable |
|||
|
#24
BRACKET 4
36Y-2741L-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER, FOOTREST 2
36Y-27424-00-00
Superseded by 36Y-27424-01-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-104L8-00
Superseded by 90387-10048-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
90110-08123-00
Superseded by 90110-08221-00
|
$4.73 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE
90105-10316-00
Superseded by 90105-10778-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, SPEC''L SHAPE
90179-10276-00
|
$3.80 | ||
|
Unavailable |
|||
|
#31
WASHER, PLATE
90201-10669-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
RR FOOTREST ASSEMBLY 1
29L-27430-00-00
|
$227.99 | ||
|
Unavailable |
|||
|
#33
COVER, RR FOOTREST
22N-27433-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#34
SCREW, PAN HEAD
98506-05010-00
Superseded by 98517-05010-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#35
RR FOOTREST ASSEMBLY 2
29L-27440-00-00
|
$226.99 | ||
|
Unavailable |
|||
|
#36
COVER, RR FOOTREST
22N-27433-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#37
SCREW, PAN HEAD
98506-05010-00
Superseded by 98517-05010-00
|
$4.16 | ||
|
Unavailable |
|||
|
#38
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
