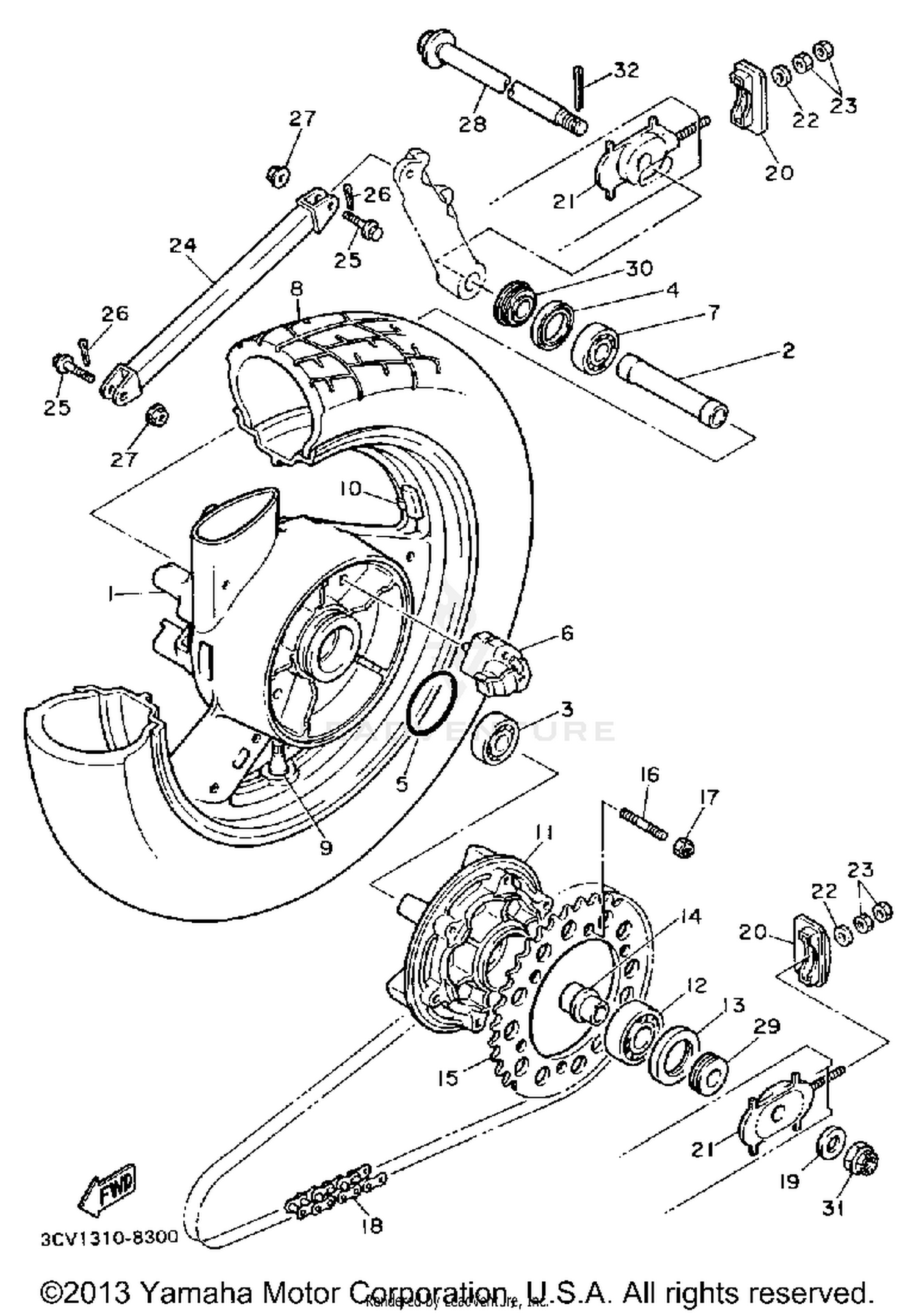

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
3CV-25338-00-WG
|
$500.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-20339-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-30417-00
Superseded by 93306-30437-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-40027-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-65752-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER
2GH-25364-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-30416-00
Superseded by 93306-30437-00
|
$64.99 | ||
|
Unavailable |
|||
|
#8
150/80V16V250K275D (150/80V16-V
94115-163T2-00
Superseded by 94115-165X7-00
|
$191.99 | ||
|
Unavailable |
|||
|
#9
VALVE, RIM (TR412)
93900-00030-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLUTCH, HUB
36Y-25366-01-00
|
$162.99 | ||
|
Unavailable |
|||
|
#12
BRG,R-B 6305ZZ 62MM
93306-30507-00
Superseded by 93306-305U0-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93106-42026-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, WHEEL
36Y-25377-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#15
SPROCKET, DRIVN 40T
1TX-25440-20-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STUD
90116-10485-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CHAIN
94580-94110-00
Superseded by 94581-78110-00
|
$312.99 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-18264-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PULLER, CHAIN 2
36Y-25389-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PULLER, CHAIN 1
36Y-25388-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#22
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95333-08600-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAR, TENSION
36Y-25371-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-08321-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
AXLE, WHEEL
36Y-25381-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#29
COLLAR
90387-203U4-00
|
$14.49 | ||
|
Unavailable |
|||
|
#30
COLLAR
90387-203U5-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, CASTLE
90171-18043-00
|
$21.99 | ||
|
Unavailable |
|||
|
#32
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
