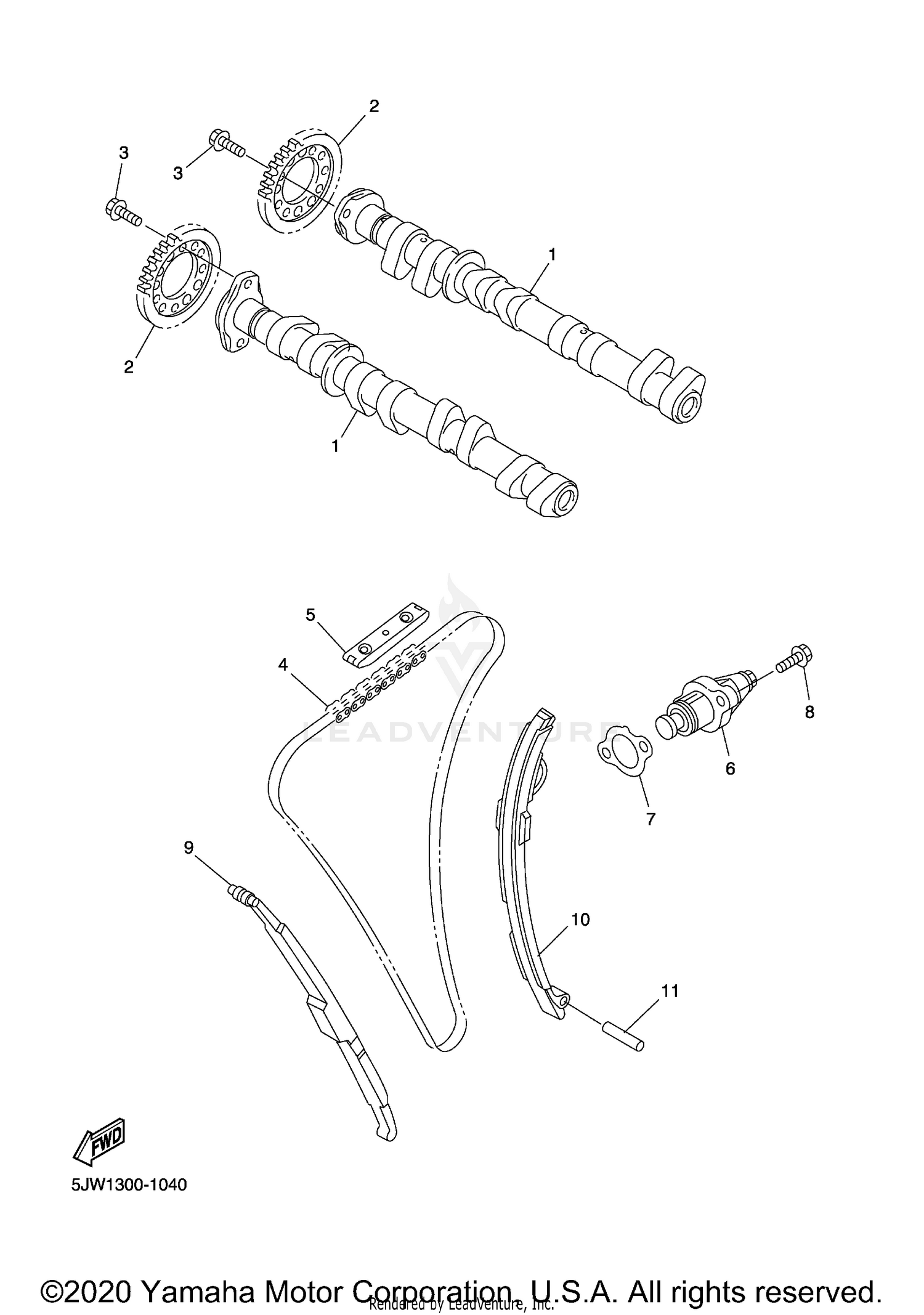

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 2
5JW-12171-00-00
Superseded by 1MC-12181-00-00
|
$270.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, CAM CHAIN
5JW-12176-00-00
Superseded by 5JW-12176-10-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-07004-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAIN
94591-49136-00
Superseded by 94591-73136-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, STOPPER 2
5BE-12241-00-00
Superseded by 5BE-12241-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
TENSIONER ASSY, CAM CHAIN
5JW-12210-01-00
Superseded by 1MC-12210-01-00
|
$193.99 | ||
|
Unavailable |
|||
|
#7
GASKET, TENSIONER CASE
5JW-12213-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, CHAIN 1
5JW-12251-00-00
Superseded by 5JW-12251-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#10
DAMPER, CHAIN 2
5JW-12252-00-00
Superseded by 5JW-12252-01-00
|
$78.99 | ||
|
Unavailable |
|||
|
#11
PIN, DOWEL
93607-44190-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
