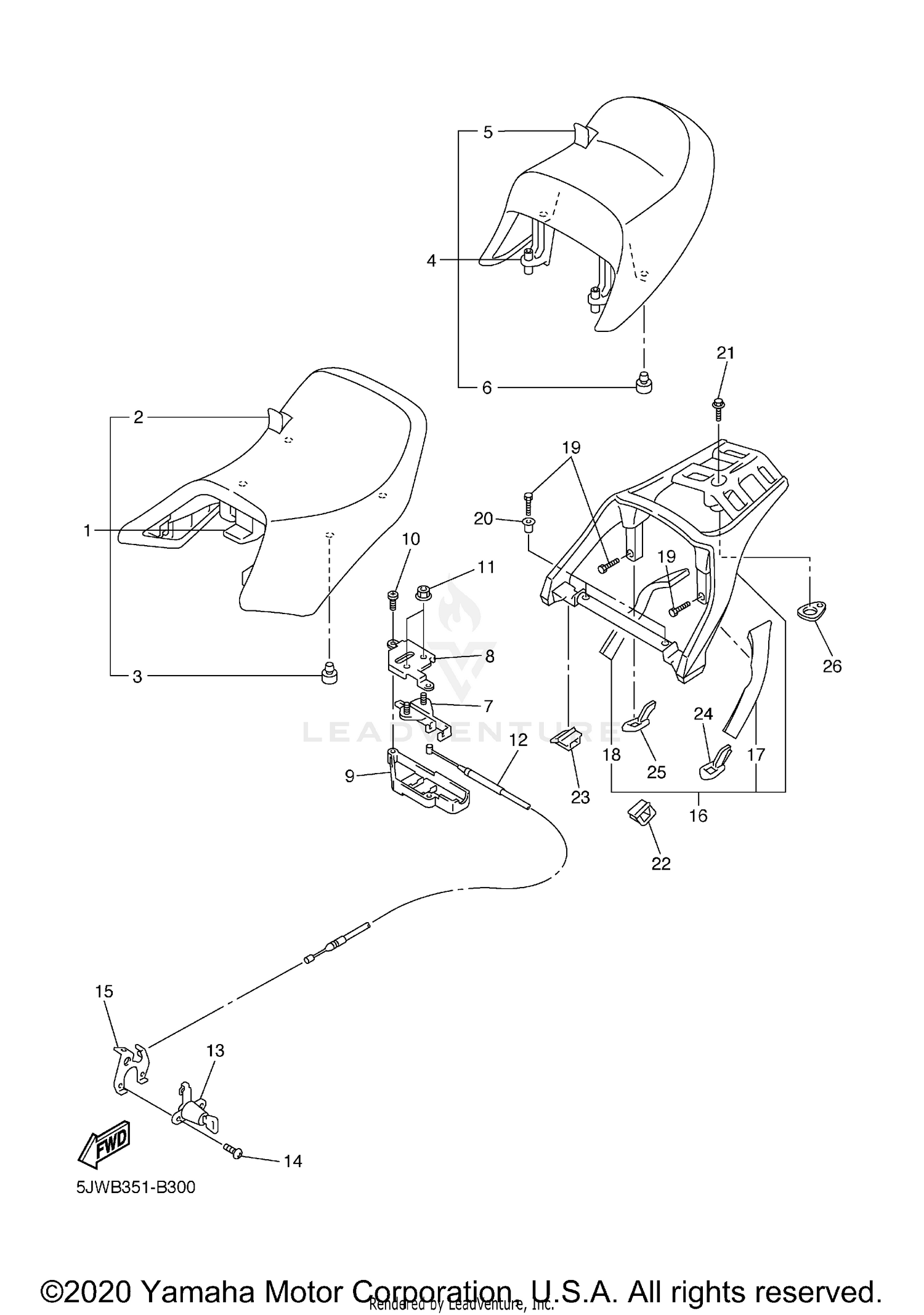

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
5JW-24710-00-00
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAT COVER COMP.
5JW-2470F-00-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD, SEAT
5JW-24741-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
TANDEM SEAT ASSY
5JW-24750-01-00
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT COVER COMP.
5JW-2470F-10-00
|
$177.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PAD, SEAT
5JW-24741-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
SEAT LOCK ASSY
4BP-24780-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE
5VS-24792-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#9
COVER, 2
5JJ-2475X-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING
97707-40012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE, SEAT LOCK
5JW-2478E-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAT LOCK ASSY
2TV-W2470-00-00
Superseded by 3CK-W2470-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
90149-06308-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, LOCK
5JW-2117K-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HANDLE, SEAT
5JW-24773-00-P4
|
$740.99 | ||
|
Unavailable |
|||
|
#17
COVER, 2
5JW-2475X-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#18
COVER, 2
5JW-2475X-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90109-082A1-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-09003-00
Superseded by 90387-09012-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, WASHER BASED
90105-08310-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER, SEAT
5JW-24723-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, SEAT
5JW-24724-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, SEAT
5JW-24737-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER, SEAT
5JW-24737-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER, SEAT
5JW-24747-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
