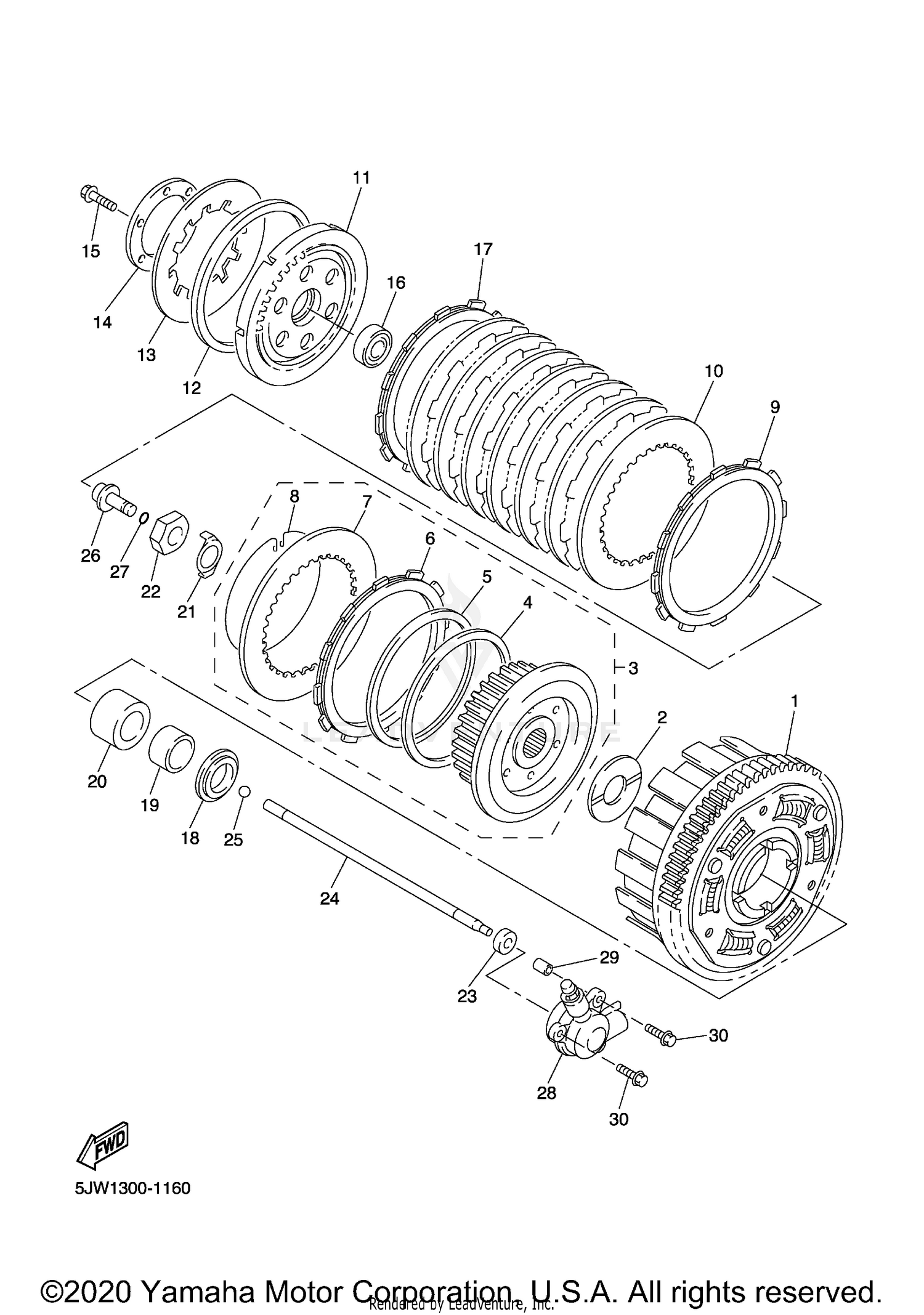

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR COMP.
5JW-16150-00-00
|
$884.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, THRUST 1
5JW-16154-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLUTCH BOSS ASSY
5JW-16370-00-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, SEAT
36Y-16384-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CLUTCH BOSS
36Y-16383-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, FRICTION 2
4XV-16331-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH 2
2H7-16325-00-00
Superseded by 2H7-16325-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#8
RING, CLUTCH BOSS
2H7-16385-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, FRICTION
5JW-16321-00-00
Superseded by 5JW-16321-10-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH 2
2H7-16325-00-00
Superseded by 2H7-16325-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#11
PLATE, PRESSURE 1
4XV-16351-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOUSING, SPRING
36Y-16335-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, CLUTCH 2
5JW-16334-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, PRESSURE 2
1TX-16352-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93306-00304-00
Superseded by 93306-00315-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, FRICTION
341-16321-13-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER 3
5JW-16183-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-28002-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER 1
5JW-16181-00-00
Superseded by 1MC-16181-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, LOCK
90215-25218-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90170-20323-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93109-08061-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
ROD, PUSH 2
5JW-16357-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BALL
93511-32017-00
Superseded by 93511-32027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
ROD, PUSH 1
4KG-16356-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-06422-00
Superseded by 93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PUSH LEVER COMP.
5JW-16381-00-00
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, DOWEL
99530-08012-00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (SMALL HEAD)
95024-06025-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
