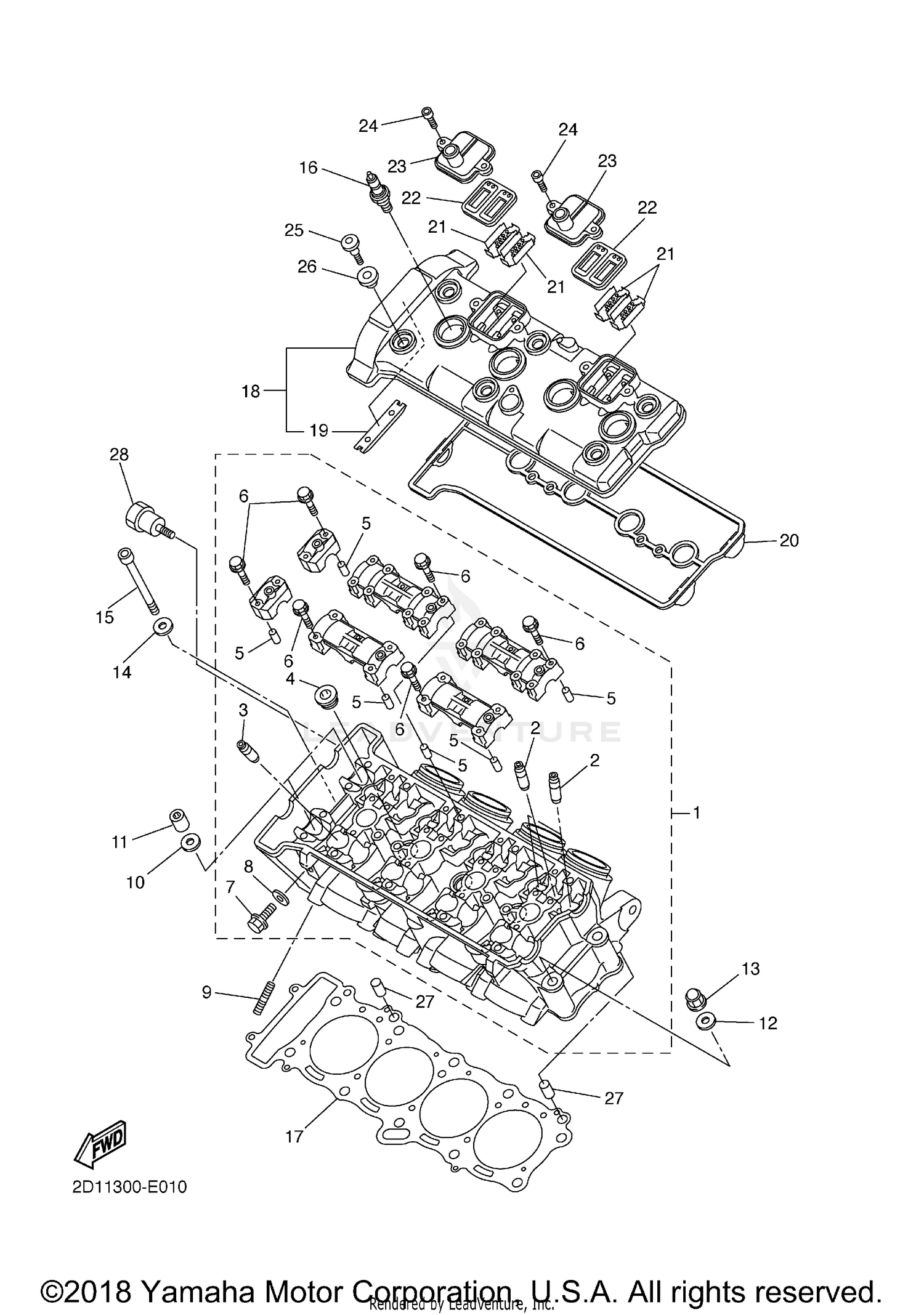

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
5VY-11101-20-00
|
$1,297.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
5VY-11133-30-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 2
5VY-11134-10-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG, STRAIGHT SCREW
90340-18002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-06026-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (SMALL HEAD)
95024-06012-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD
95612-08625-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-10033-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-10006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-10033-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
NUT, CROWN
90176-10075-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06034-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91314-06105-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CR9E NGK SPLUG 4PK
94701-00318-00
Superseded by CR9-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#17
GASKET, CYLINDER HEAD 1
2D1-11181-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, CYLINDER HEAD 1
5VY-11191-02-00
|
$422.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE, STOPPER 2
5BE-12241-00-00
Superseded by 5BE-12241-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, HEAD COVER 1
5VY-11193-10-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE
5VY-1482K-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
REED VALVE ASSY
5SL-14890-10-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, CASE
5VY-14899-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90110-06178-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90109-066F0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
RUBBER, MOUNT 1
5VY-1111G-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, MOUNT
2D1-11026-00-00
Superseded by 2D1-11026-10-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
