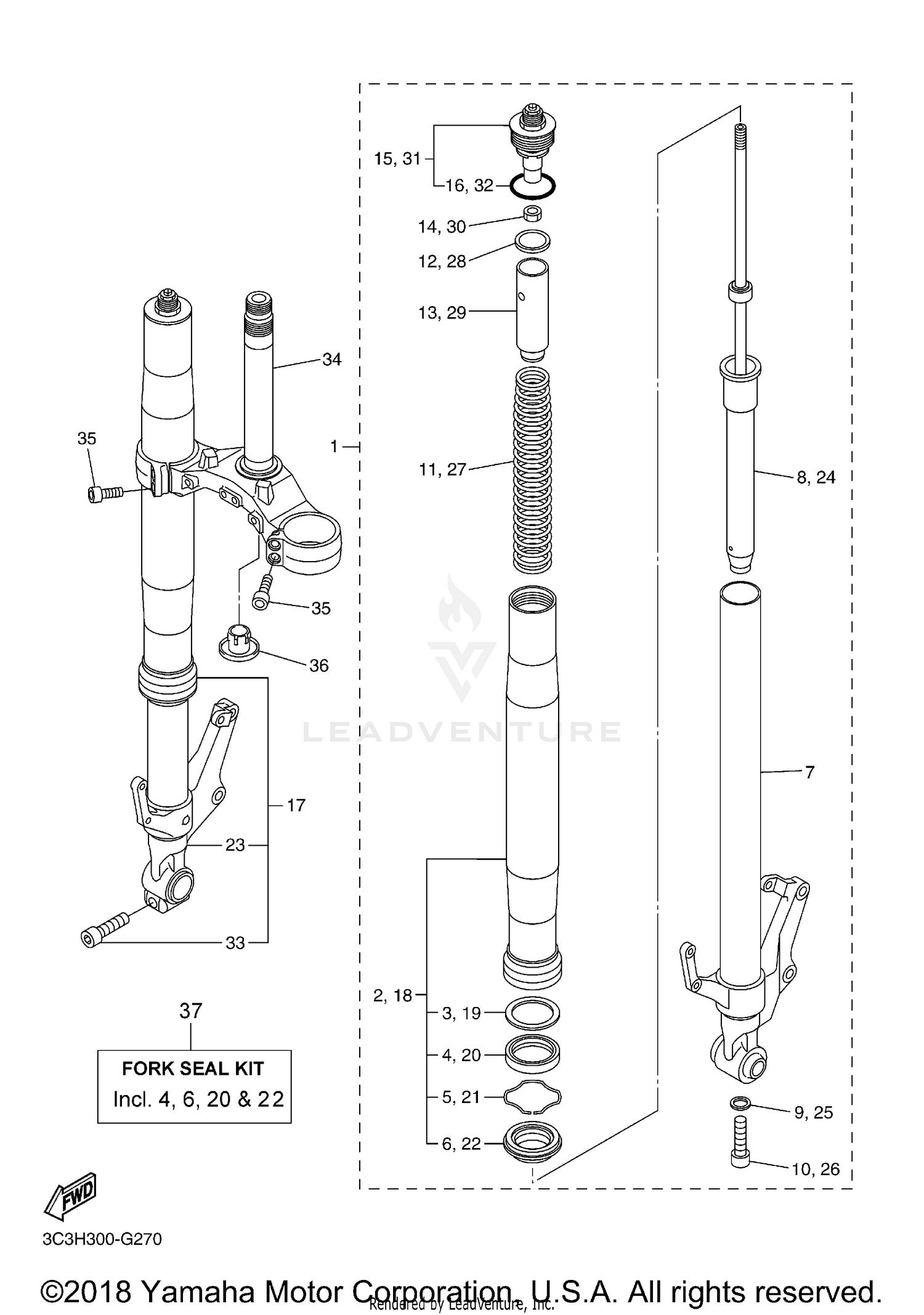

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
2D1-23102-03-00
|
$611.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER
2D1-23136-00-00
|
$452.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
4PU-23145-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
4PU-23144-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
INNER TUBE COMP. 1
2D1-23110-00-00
|
$630.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER COMP., FRONT FORK
2D1-23170-11-00
|
$481.99 | ||
|
Unavailable |
|||
|
#9
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, FRONT FORK
2D1-23141-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#12
WASHER
5VY-12277-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
5VY-23118-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
3LC-23357-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CAP
2D1-23111-00-00
|
$240.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
3XJ-23147-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
FRONT FORK ASSY (R.H)
2D1-23103-03-00
|
$698.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TUBE, OUTER
2D1-23136-00-00
|
$452.99 | ||
|
Unavailable |
|||
|
#19
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Unavailable |
|||
|
#20
OIL SEAL
4PU-23145-01-00
|
$24.99 | ||
|
Unavailable |
|||
|
#21
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
SEAL, DUST
4PU-23144-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#23
INNER TUBE COMP. 2
2D1-23120-00-00
|
$352.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CYLINDER COMP., FRONT FORK
2D1-23170-01-00
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#26
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#27
SPRING, FRONT FORK
2D1-23141-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#28
WASHER
5VY-12277-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#29
SPACER
5VY-23118-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#30
NUT
3LC-23357-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#31
BOLT, CAP
2D1-23111-00-00
|
$240.99 | ||
|
Unavailable |
|||
|
#32
O-RING
3XJ-23147-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
UNDER BRACKET COMP.
2D1-23340-10-00
|
$525.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, HEXAGON SOCKET HEAD
91312-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
COVER, LOWER 1
4KM-23123-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
FORK SEAL KIT
4PU-W003B-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
