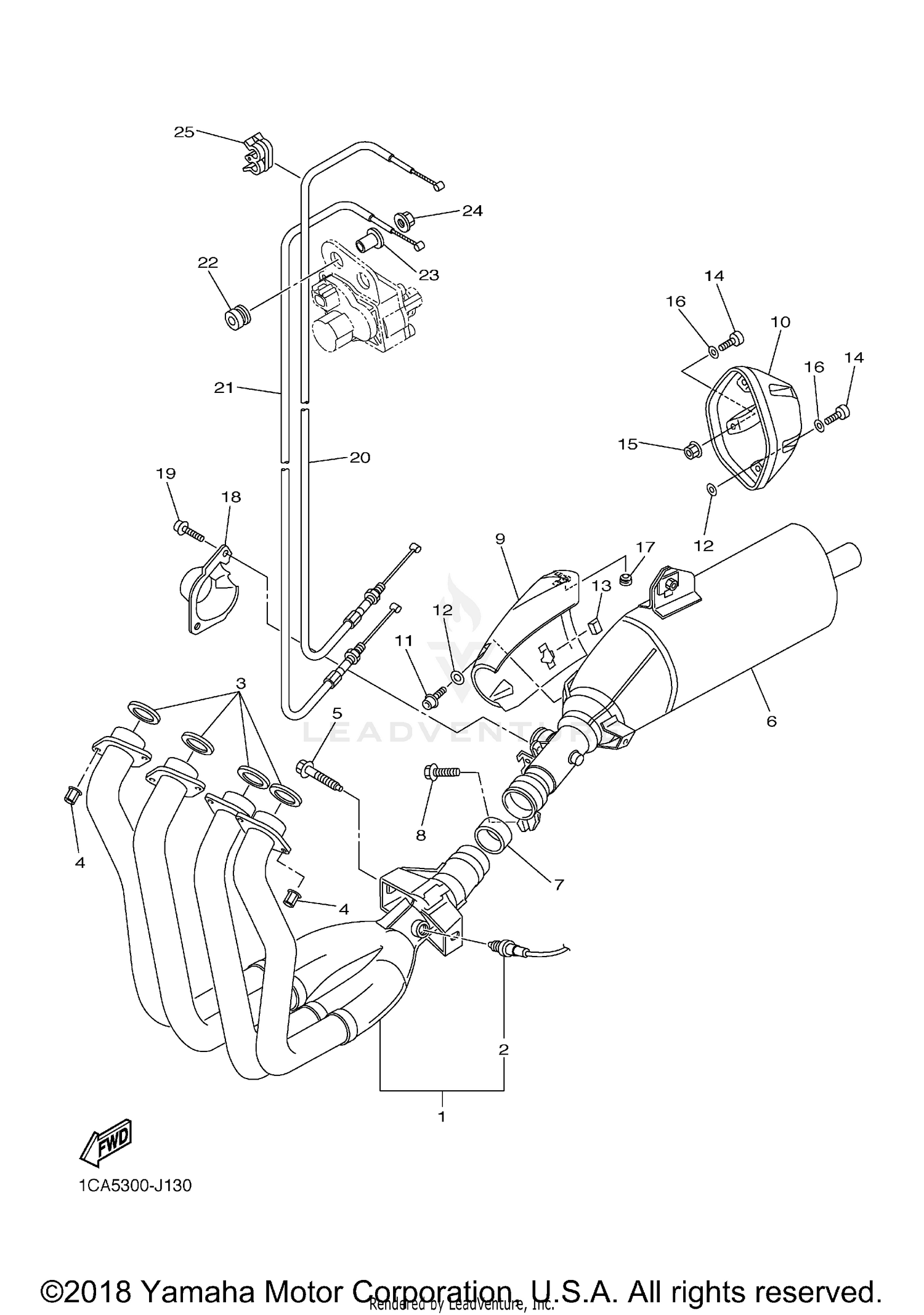

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE COMP.
2D1-14602-10-00
|
$1,298.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SENSOR, OXYGEN
2D1-8592A-00-00
|
$523.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EXHAUST PIPE
4FM-14613-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-08410-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90109-08170-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
MUFFLER COMP. 1
2D1-14703-10-00
|
$1,215.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, SILENCER
5VY-14755-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95814-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR, MUFFLER 1
2D1-14718-20-00
|
$327.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
2D1-14799-10-00
|
$247.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. SOCKET BUTTON
90111-06060-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-05017-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 1
3MA-24181-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91380-06014-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN (646)
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, MUFFLER
2D1-14737-00-00
Superseded by 2D1-14737-01-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
PROTECTOR, EXHAUST
2D1-14826-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
90110-06110-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE, PULLEY 1
2D1-1133E-01-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CABLE, PULLEY 2
2D1-1133F-11-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET
90480-14604-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-06M60-00
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
Unavailable |
|||
|
#25
CLAMP
90464-04001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
