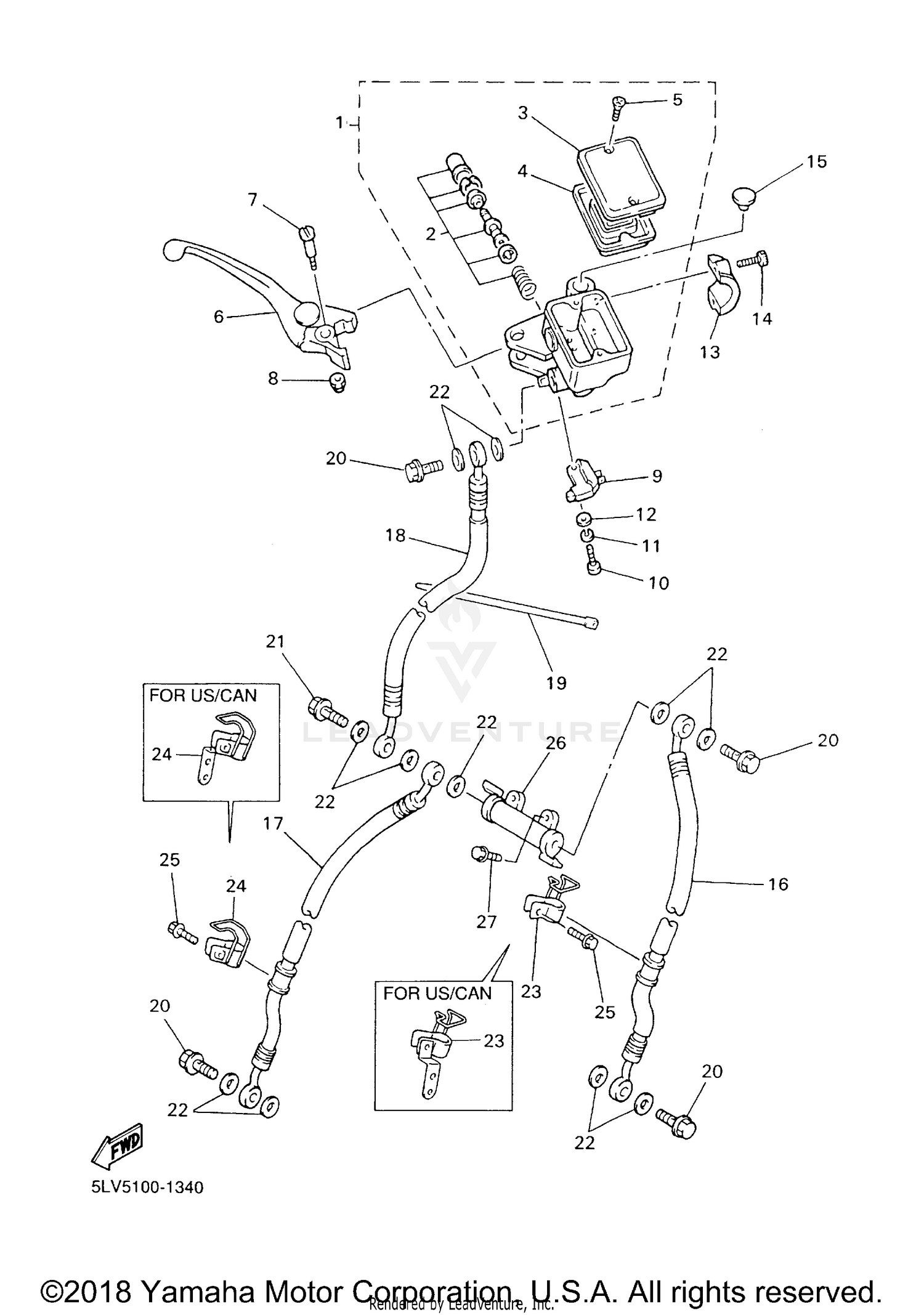

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
5DM-W2587-00-00
Superseded by 5DM-W2587-01-00
|
$300.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
5DM-W0041-50-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RESERVOIR CAP SET
4HM-W2585-00-00
Superseded by 4HM-W2585-01-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM, RESERVOIR
4HM-25854-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER 2
5EB-83922-01-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, LEVER
3FV-2589F-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, S/L
95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FRONT STOP SWITCH ASSY
3FV-83980-00-00
Superseded by 4HM-83980-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW,PANHEAD
98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, MASTER CYLINDER
4HM-25867-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, BRAKE 1
5LV-25872-00-00
Superseded by 5LV-25872-01-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, BRAKE 2
5LV-25873-00-00
Superseded by 5LV-25873-01-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, BRAKE
5LV-25874-00-00
Superseded by 5LV-25874-01-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, UNION
90401-10160-00
Superseded by 90401-10038-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER, BRAKE HOSE 1
5LV-25875-10-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, BRAKE HOSE 2
5LV-25876-10-00
|
$18.99 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
JOINT
42H-25885-01-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
