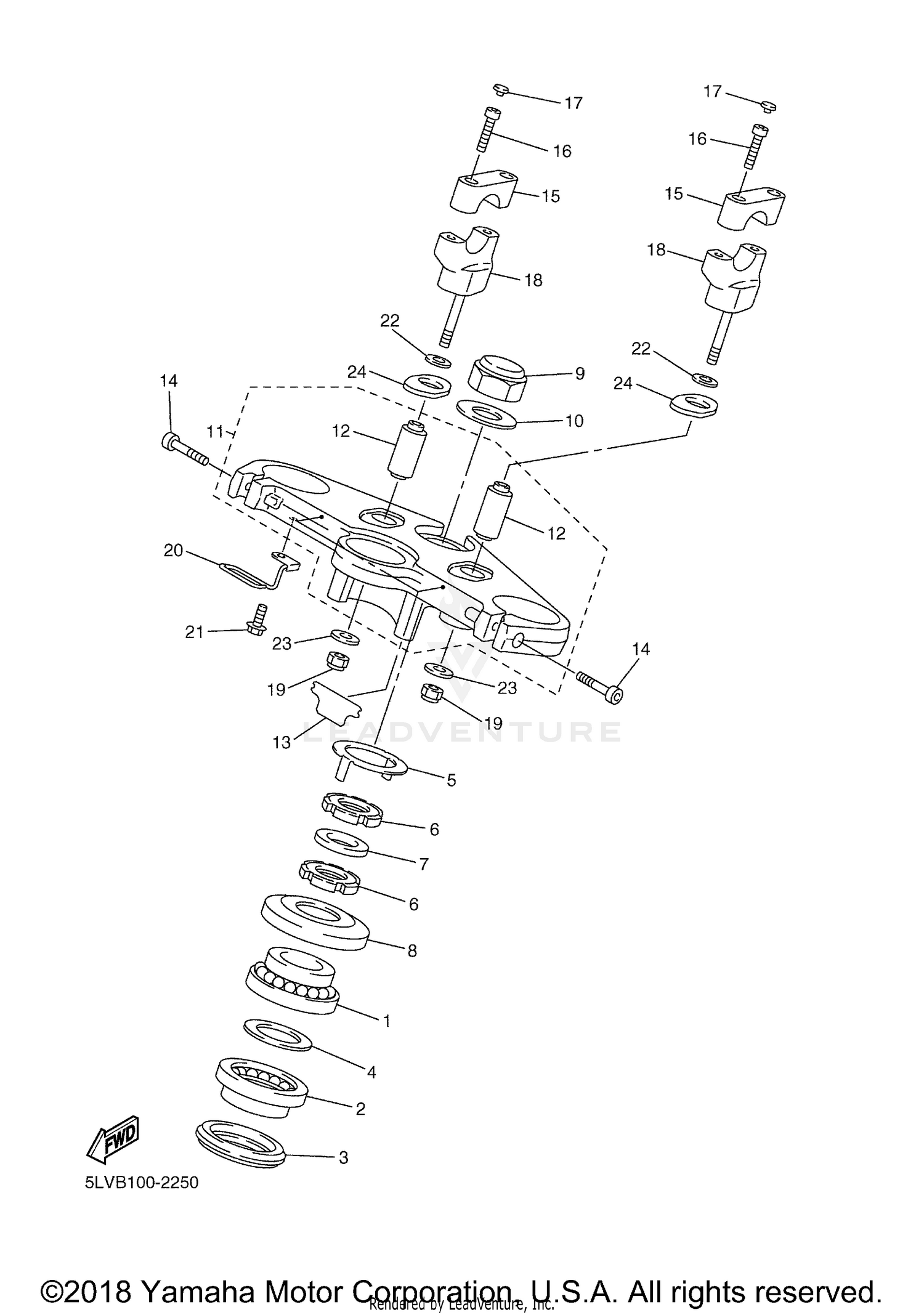

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING
93399-99931-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93399-99932-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, STEERING
3FV-23462-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90202-24190-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPECIAL
26H-23418-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90202-26142-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, BALL RACE 2
4DN-23416-20-00
Superseded by 5BP-F3416-10-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CROWN
90176-22081-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-220T0-00
Superseded by 90201-22018-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CROWN, HANDLE
5LV-W2341-00-00
|
$257.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, DAMPER
5A8-23434-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PROTECTOR
5LV-23472-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, HANDLE UPPER
4H7-23441-00-98
Superseded by 4H7-23441-01-98
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX.S OCKET HEAD
91317-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, BOLT
341-23469-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOLDER, HANDLE LOWER
5LV-23442-01-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U
95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER, CABLE
5LV-23317-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN
92907-10200-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-100A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER
5LV-23445-00-00
|
$8.49 | ||
|
Unavailable |
|||
