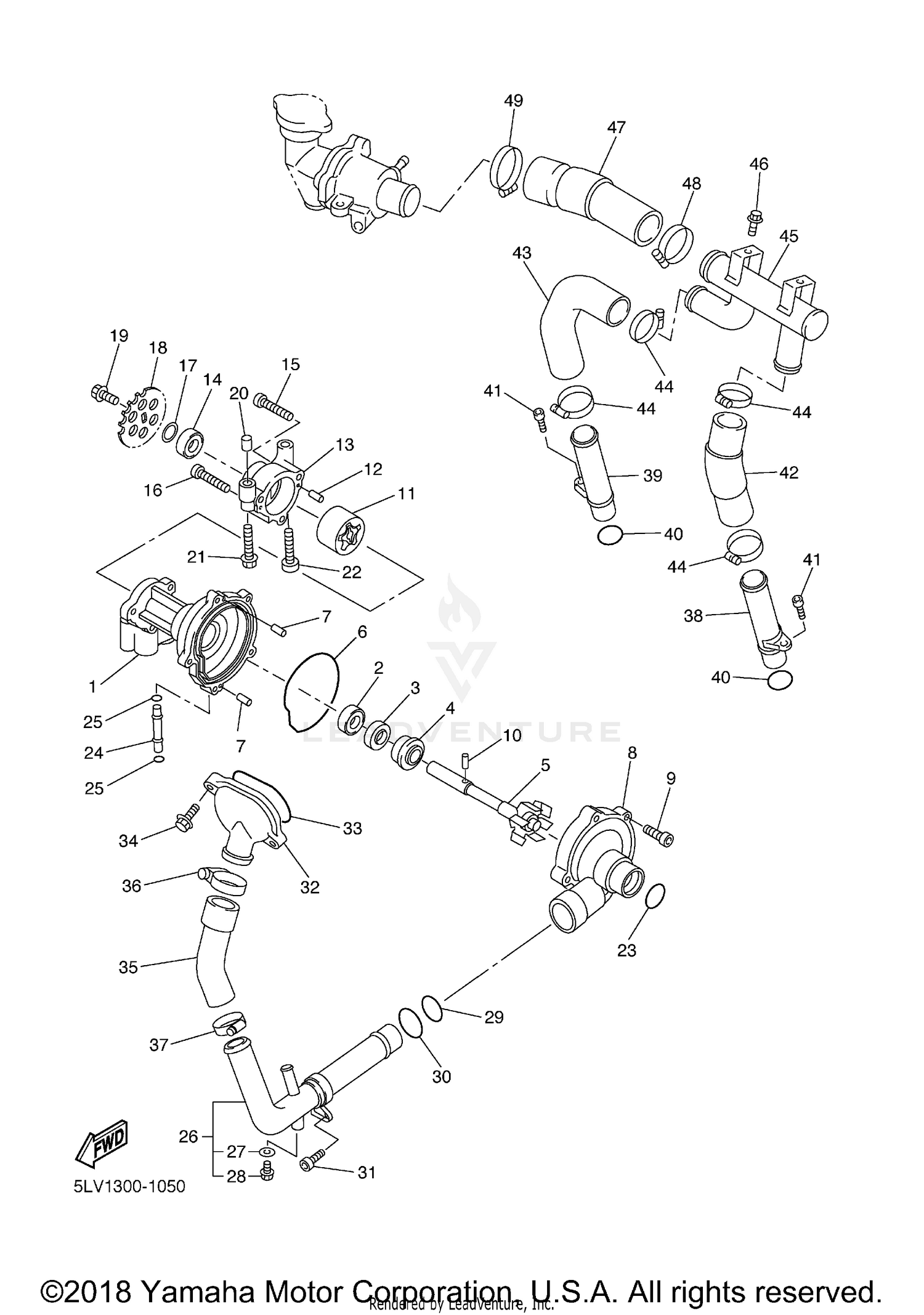

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, WATER PUMP
4XV-12421-00-00
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-00106-00
Superseded by 93306-00105-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-12372-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, MECHANICAL
11H-12438-10-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
IMPELLER SHAFT ASSY
4XV-12450-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
4XV-12439-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
93604-10011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, HOUSING
4XV-12422-00-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
93603-17070-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROTOR ASSY 1
4XV-13310-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
93603-12007-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOUSING, ROTOR
4XV-13336-00-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING (B6001)
93306-00105-00
|
$27.99 | ||
|
Unavailable |
|||
|
#15
BOLT, HEX. SOCKET HEAD
91317-06035-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. SOCKET HEAD
91317-06040-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-12541-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVEN
4XV-13355-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL
91808-30031-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95817-06045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
91317-06045-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-357A2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIPE 5
4XV-12485-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-06667-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE 1
5LV-12481-00-00
Superseded by 5LV-12481-01-00
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, HEXAGON
90153-06029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
93210-235A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING
93210-27370-00
Superseded by 93210-27778-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
JOINT 1
4XV-12469-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING
93210-47675-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (SMALL HEAD)
95024-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE 1
4XV-12576-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOSE CLAMP ASSY
90450-38040-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOSE CLAMP ASSY
90450-35001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE 2
5LV-12482-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
PIPE 3
5LV-12483-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
O-RING
93210-18417-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT (4MY)
91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOSE 2
5LV-12577-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
HOSE 3
5LV-12578-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
HOSE CLAMP ASSY
90450-28014-00
Superseded by 90450-28001-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIPE 5
5LV-12485-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT,FLANGE
95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#47
HOSE 4
5LV-12579-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
HOSE CLAMP ASSY
90450-35001-00
|
$5.49 | ||
|
Unavailable |
|||
|
#49
HOSE CLAMP ASSY
90450-38040-00
|
$16.99 | ||
|
Unavailable |
|||
