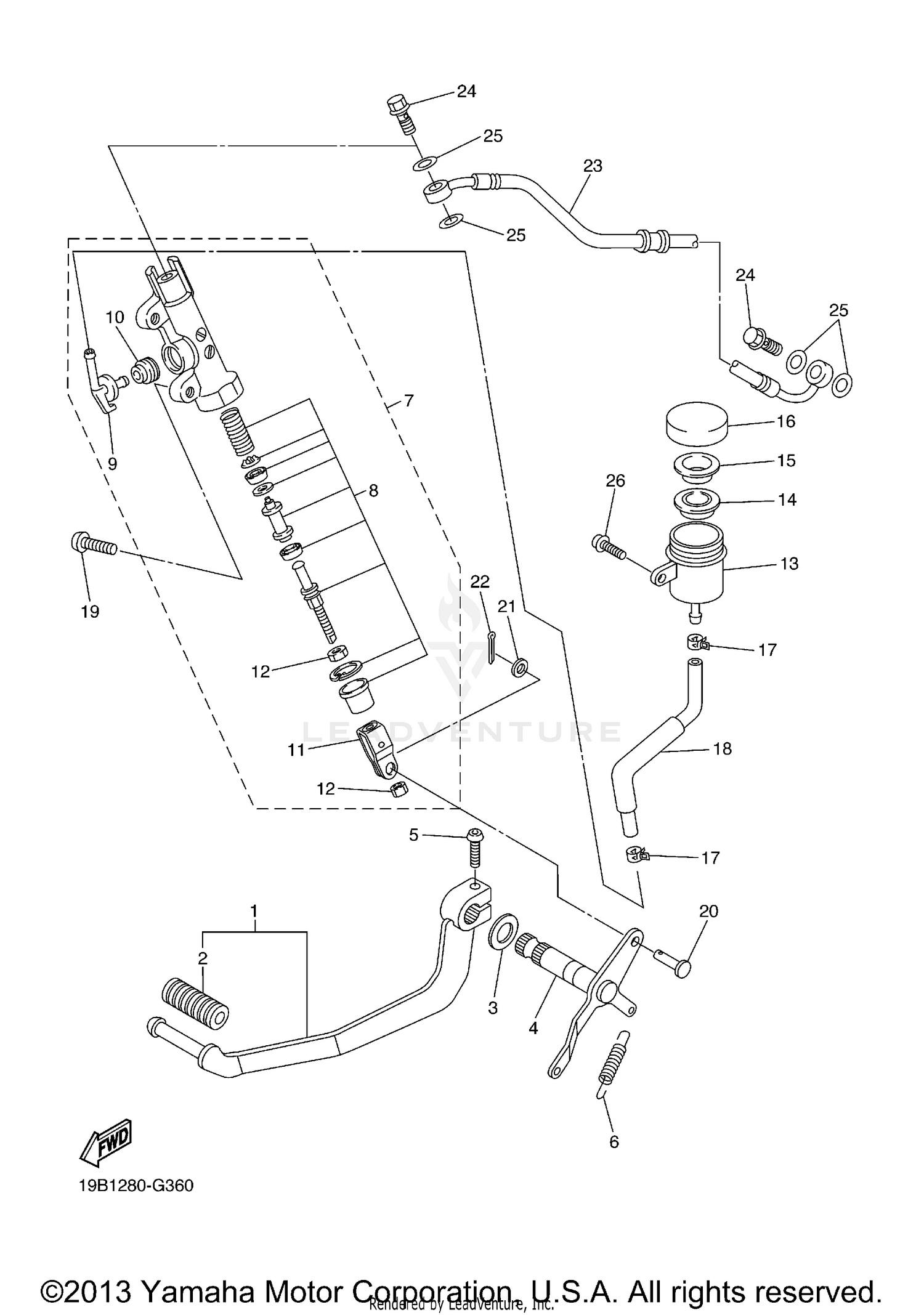

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
5VX-27200-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SHIFT PEDAL
5EB-18113-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-14215-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, BRAKE PEDAL
5VX-27212-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, BUTTON HEAD
92014-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-20223-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RR. MASTER CYLINDER ASSY.
2D1-2583V-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER KIT, MASTER
5VX-W0042-50-00
Superseded by 5VX-W0042-51-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
. .JOINT
2D1-2582A-00-00
Superseded by 2D1-2582A-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#10
O-RING
4BP-2585F-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT
4BP-27222-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90170-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANK, RESERVOIR
4P5-25894-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIAPHRAGM, RESERVOIR
5SL-25854-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH, DIAPHRAGM
5SL-25855-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, RESERVOIR
5SL-25852-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-120A3-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, RESERVOIR
4S8-25895-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, BUTTON HEAD
92014-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, CLEVIS
90240-08124-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE, BRAKE 5
5VX-2581K-01-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, UNION
90401-10020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
90430-10005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
