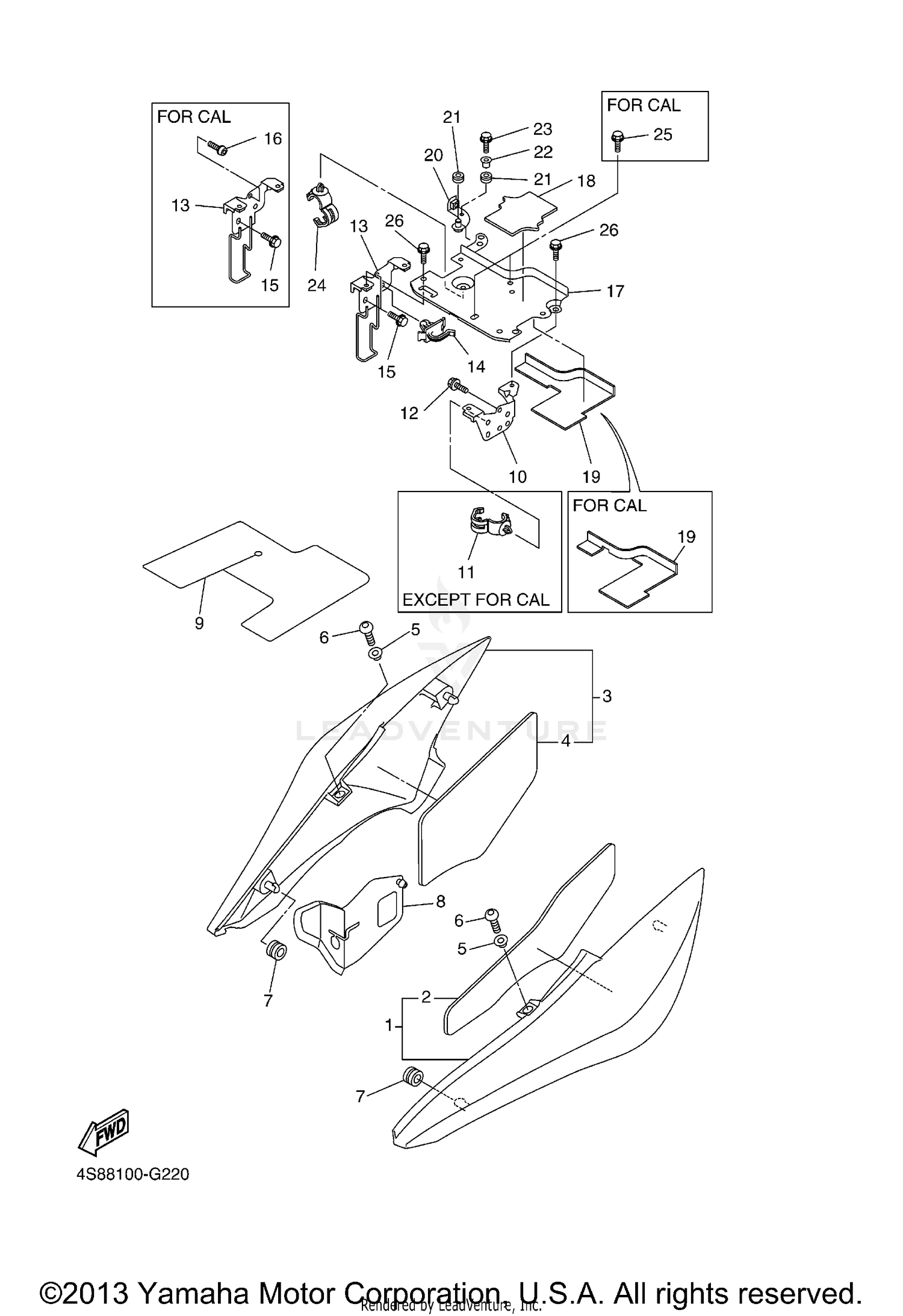

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SIDE COVER ASSY 1
5VX-21710-A0-P2
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SIDE COVER ASSY 1
5VX-21710-A0-P6
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER
5VX-2174X-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SIDE COVER ASSY 2
5VX-21720-A0-P2
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SIDE COVER ASSY 2
5VX-21720-A0-P6
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER
5VX-2174Y-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-06107-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, BUTTON HEAD
92017-06014-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-01558-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, REAR FENDER 1
5VX-2163A-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FLAP
5VX-2177F-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, 4
5VX-21843-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90464-20181-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, 3
5VX-22836-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-14001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Unavailable |
|||
|
#16
BOLT, BUTTON HEAD
92017-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET 3
4S8-2175V-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, LOCATING 2
5VX-21779-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL 3
5VX-2173M-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SEAL 3
5VX-2173M-10-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, RESERVE TANK
4P5-21228-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER
90560-06201-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90464-20181-00
|
$4.45 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Unavailable |
|||
