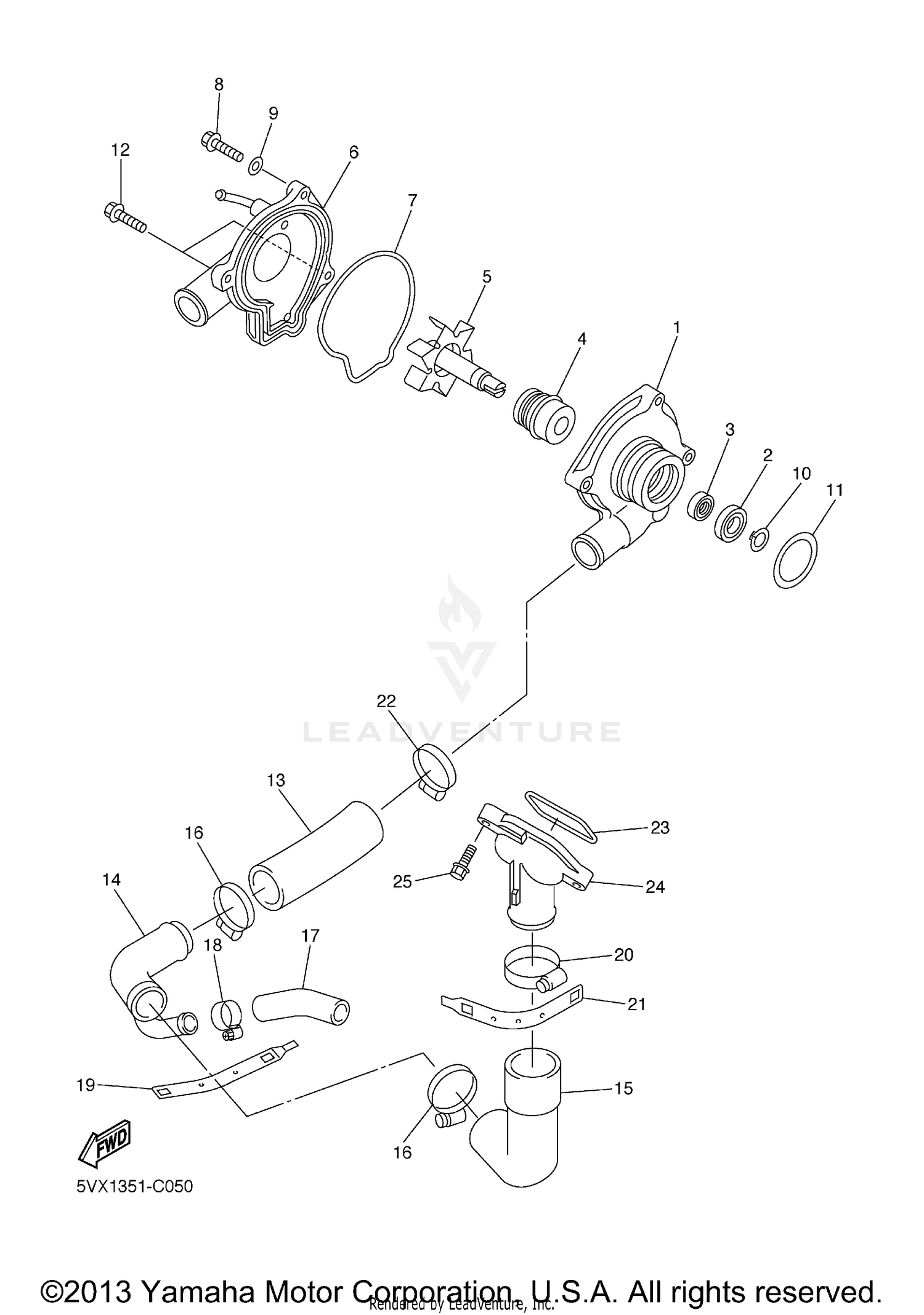

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, WATER PUMP
5EB-12421-00-00
Superseded by 5VX-12421-00-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-00106-00
Superseded by 93306-00105-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93101-12173-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, MECHANICAL
11H-12438-10-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
IMPELLER SHAFT ASSY
5EB-12450-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, HOUSING
5SL-12422-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
5EB-12439-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLG.(SMALL HEAD)
95024-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
99009-12400-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-33133-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-06086-00
Superseded by 91314-06040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE 4
4NK-12579-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT, HOSE 1
5VX-12581-00-00
Superseded by 20S-12581-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE 2
5EB-12577-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE CLAMP ASSY
90450-35001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE 5
5SL-12588-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90450-22017-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER 2
5GV-1246E-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE CLAMP ASSY
90450-38040-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER 1
5GV-1246A-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE CLAMP ASSY
90450-32001-00
Superseded by 90450-32003-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-46001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
JOINT 1
5EB-12469-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLG.(SMALL HEAD)
90105-06053-00
Superseded by 95024-06020-00
|
$5.49 | ||
|
Unavailable |
|||
