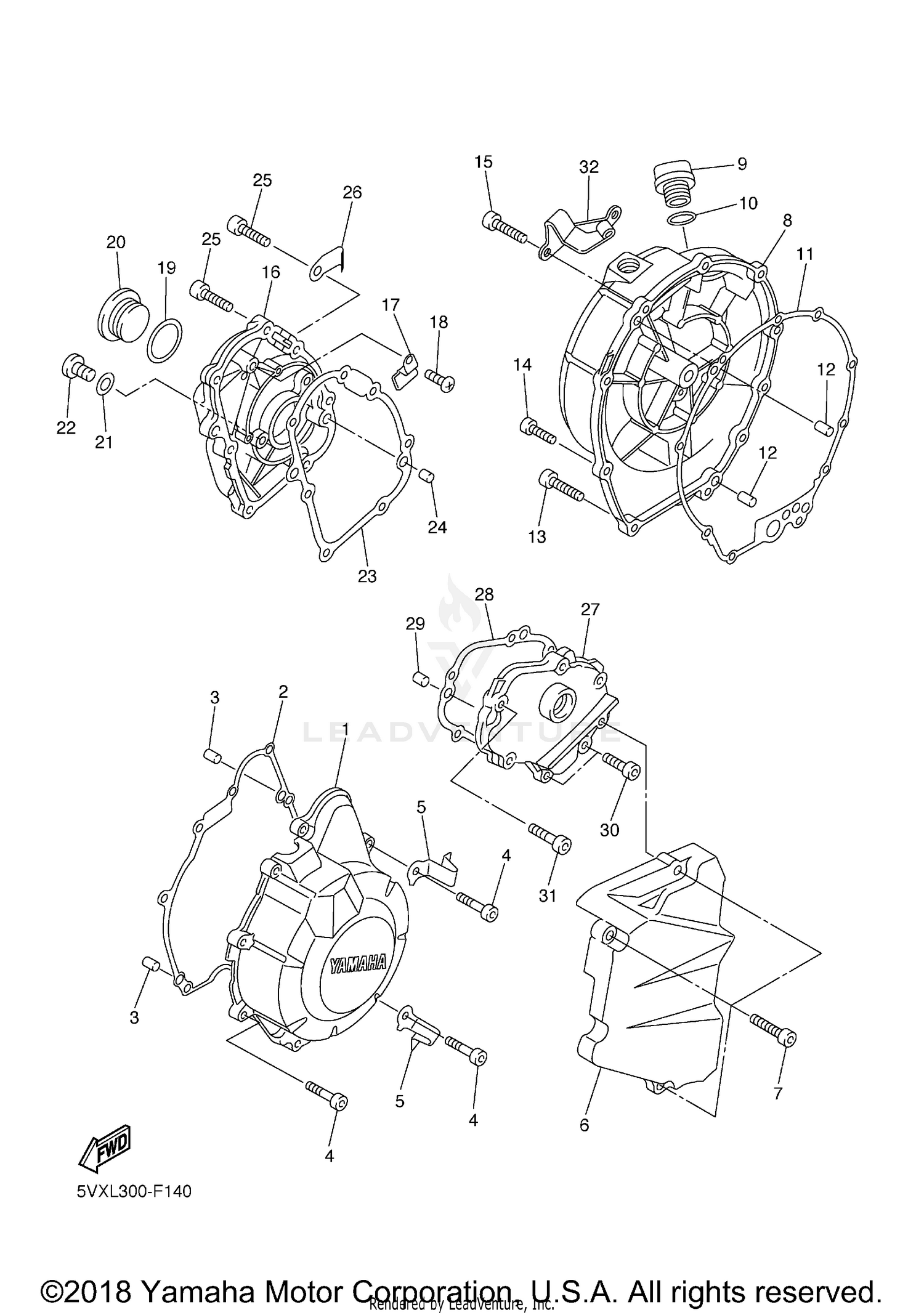

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
1B3-15411-00-00
Superseded by 36P-15411-01-00
|
$176.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE COVER 1
5VX-15451-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-08012-00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
90465-08045-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, CHAIN CASE
1B3-15418-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
COVER, CRANKCASE 2
1B3-15421-00-00
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, OIL LEVEL
3F9-15362-00-00
Superseded by BAT-15362-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#10
O-RING
93210-27194-00
Superseded by 93210-27778-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, CRANKCASE COVER 2
5SL-15461-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
93608-17263-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
90110-06022-00
Superseded by 91314-06025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91314-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, OIL PUMP
1B3-15416-00-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90465-14011-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-32172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG, STRAIGHT SCREW
90340-32004-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
90430-08143-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, BUTTON HEAD
92014-08014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, OIL PUMP COVER 1
5SL-15456-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, DOWEL
99530-08012-00
|
$6.10 | ||
|
Unavailable |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90465-10042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, GENERATOR 2
1B3-15425-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET, COVER PINION 2
5VX-15463-01-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, DOWEL
99530-08012-00
|
$6.10 | ||
|
Unavailable |
|||
|
#30
BOLT, HEXAGON SOCKET HEAD
91314-06020-00
|
$1.40 | ||
|
Unavailable |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#32
HOLDER, CLUTCH CABLE
5VX-15441-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
