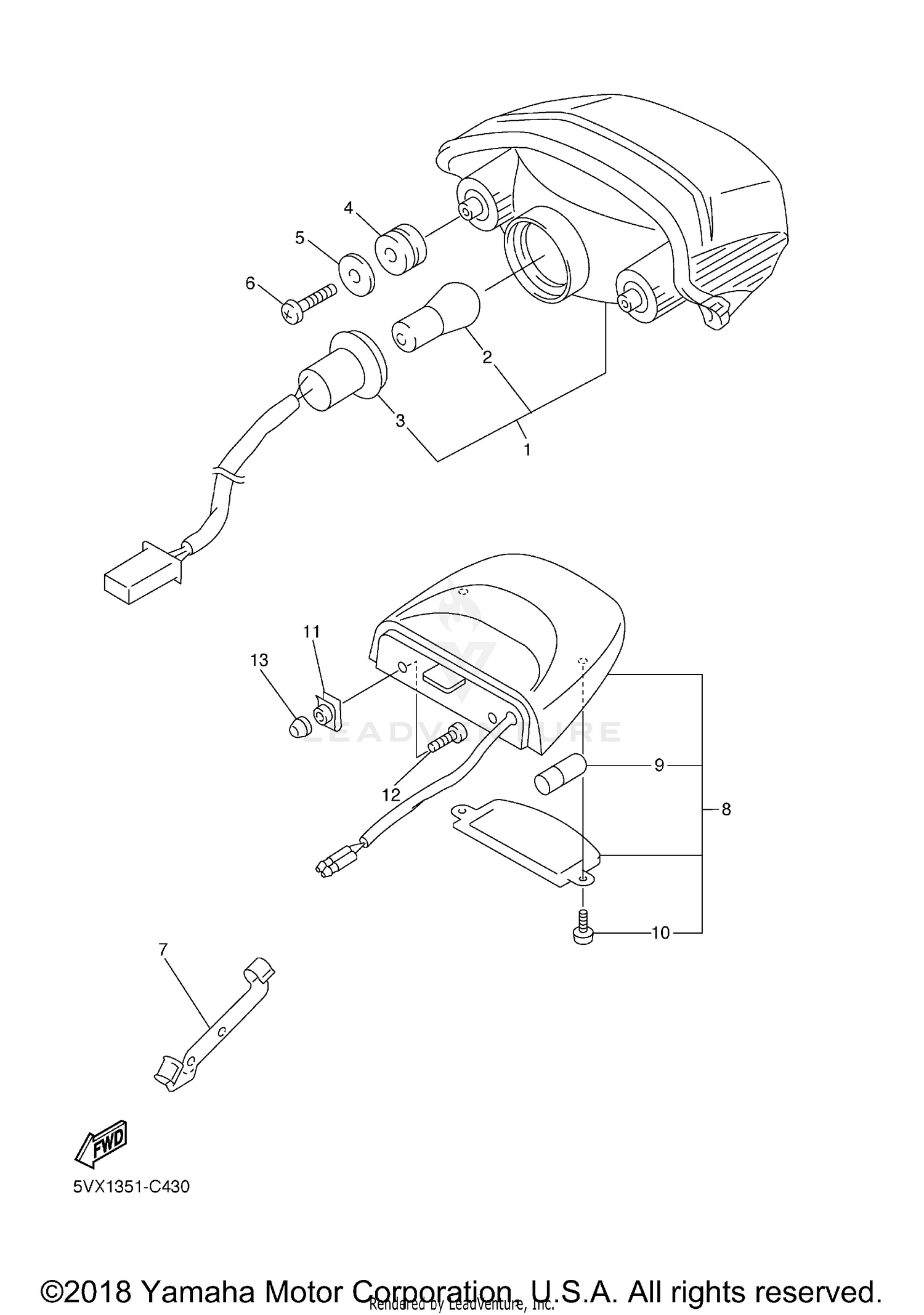

2008 Yamaha FZ 6 TAILLIGHT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
5VX-84710-10-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (12V-21/5W)
137-84714-60-00
Superseded by 137-84714-61-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
CORD ASSY
5VX-84735-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-18276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, TAPPING
97707-60016-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, WIRE
5VX-21637-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
LICENSE LIGHT UNIT ASSY
5VX-84745-01-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V-5W)
4HC-84744-00-00
Superseded by 4SV-84347-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING
97706-04012-00
Superseded by 97707-40012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPRING
90183-05061-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, BIND
98907-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG, BLIND
5VX-13569-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
