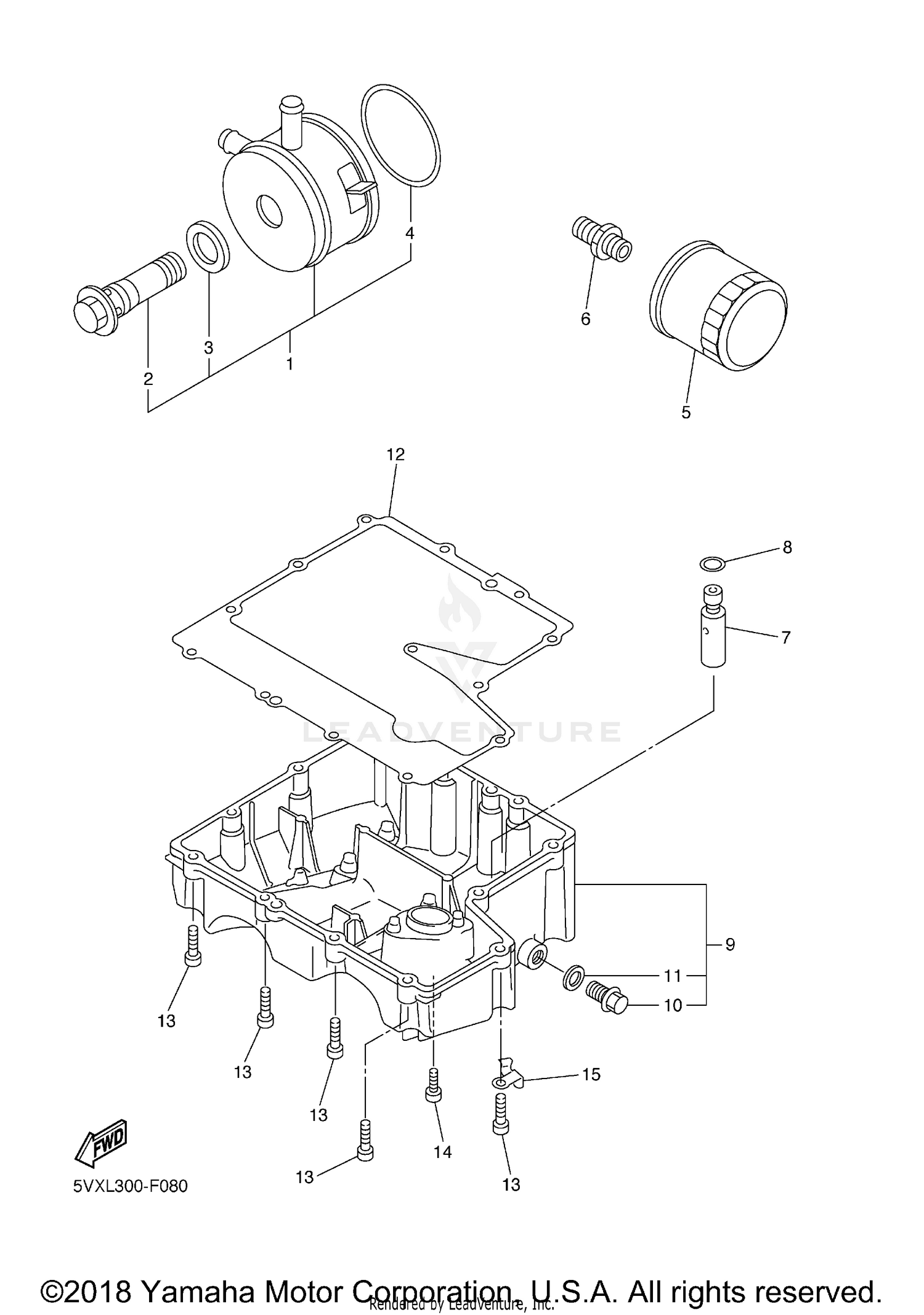

Oil Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL COOLER ASSY
5EB-13470-00-00
|
$453.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, UNION
5EB-12822-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
5EB-13475-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
5JW-13473-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ELEMENT ASSY, OIL CLEANER
5GH-13440-20-00
Superseded by 5GH-13440-80-00
|
$14.99 | ||
|
Unavailable |
|||
|
#6
BOLT, UNION
90401-20145-00
Superseded by 90401-20007-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RELIEF VALVE ASSY
3KS-13490-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
STRAINER COVER ASSY
4S8-13417-00-00
Superseded by 4S8-13400-00-00
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, STRAIGHT SCREW
90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, STRAINER COVER
5VX-13414-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
91312-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90110-06169-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Unavailable |
|||
|
#15
CLAMP
90465-10030-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
