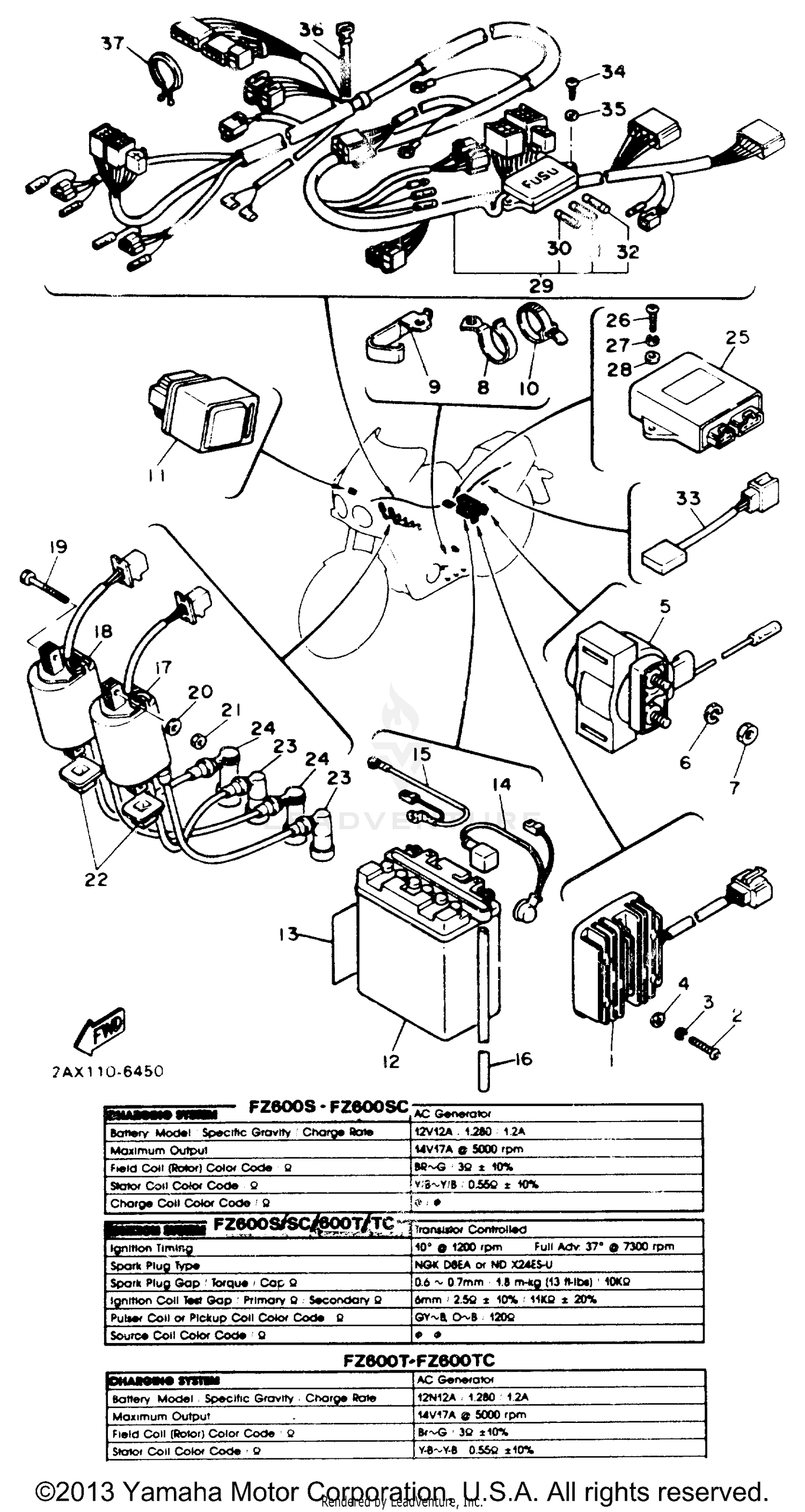

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER/REG ASSEMBLY
2XL-81960-A0-00
|
$202.49 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
STARTER RELAY ASSY
36Y-81940-00-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#7
NUT
95380-06700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
90462-08078-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90462-08087-00
|
$7.49 | ||
|
Unavailable |
|||
|
#10
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
RELAY ASSY
4U8-81950-02-00
Superseded by 4U8-81950-03-00
|
$83.99 | ||
|
Unavailable |
|||
|
#12
12N12A-4A-1 YUASA B
BTY-12N12-A4-A1
Superseded by 12N-12A4A-1Y-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LABEL, BATTERY
118-82141-09-00
Superseded by 40A-82141-G0-00
|
$0.85 | ||
|
Unavailable |
|||
|
#14
WIRE, PLUS LEAD
1UT-82115-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE, MINUS LEAD
2AX-82116-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#16
HOSE
90445-08380-00
|
$3.95 | ||
|
Unavailable |
|||
|
#17
IGNITION COIL ASY
33M-82310-60-00
Superseded by 1AA-82310-09-00
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
IGNITION COIL ASY
33M-82320-60-00
Superseded by 1AA-82310-09-00
|
$239.99 | ||
|
Unavailable |
|||
|
#19
BOLT, HEXAGON
97301-06065-00
|
$0.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#21
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER, IGNITION COIL
4U8-82317-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUG CAP ASSY
1UY-82370-20-00
Superseded by 3NS-82370-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG CAP ASSY
55X-82370-00-00
Superseded by 4BP-82370-01-00
|
$35.99 | ||
|
Unavailable |
|||
|
#25
IGNITOR UNIT ASSEMBLY 1
1UJ-82305-10-00
|
$623.99 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#29
WIRE HARNESS ASSEMBLY
2AX-82590-00-00
|
$209.99 | ||
|
Unavailable |
|||
|
#30
FUSE (12V-10A)
116-82151-00-00
Superseded by 1A0-82151-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
FUSE (12V-20A)
1A0-82161-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
FUSE (12V-30A)
2H7-82151-00-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#33
DIODE ASSY
4U8-81980-M0-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, TAPPING
97780-50612-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP
90464-23041-00
Superseded by 90464-25267-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
