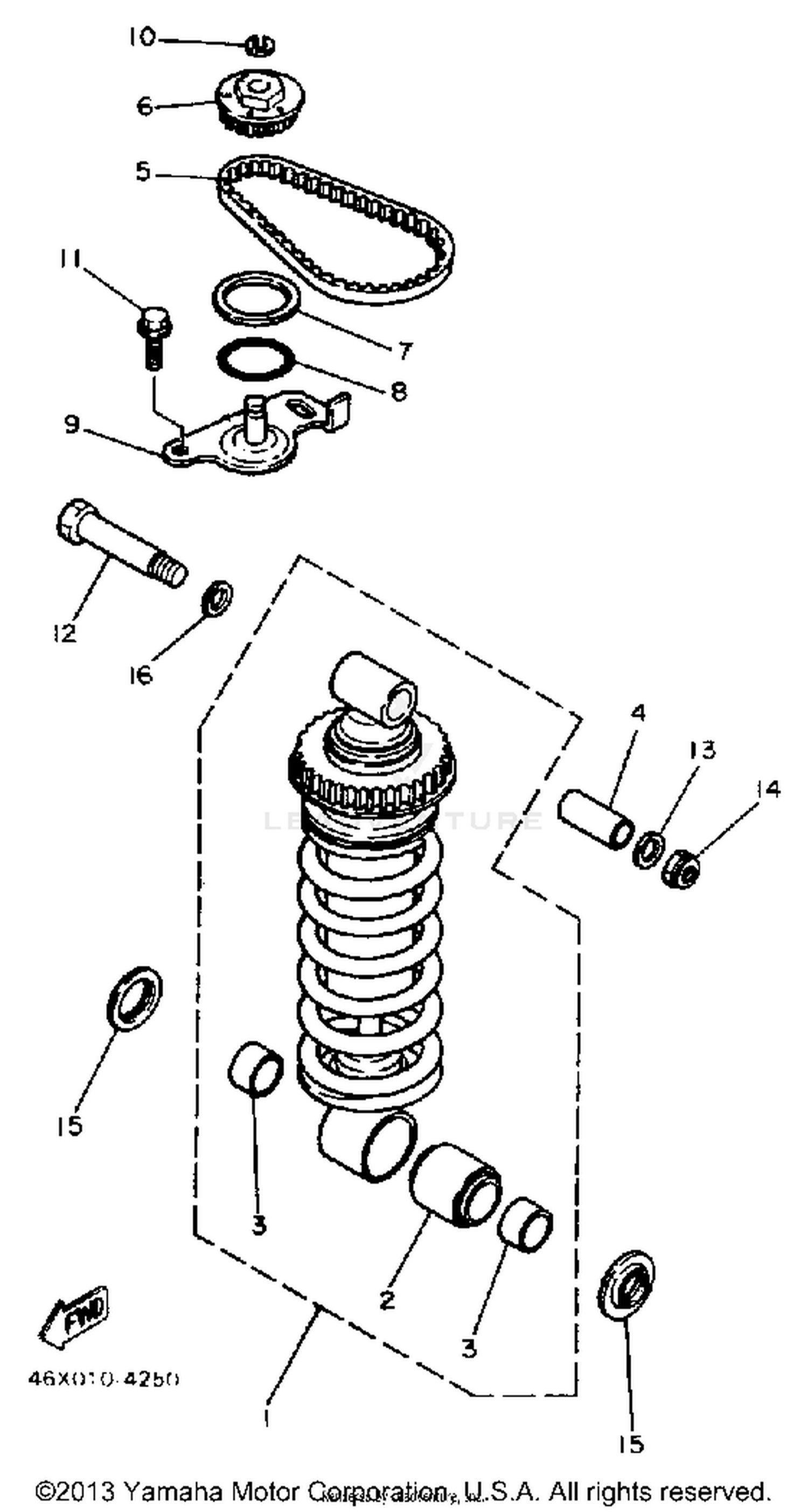

Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY, REAR
51J-22210-00-00
|
$577.09 | ||
|
Unavailable |
|||
|
#2
BUSH, RR SHOCK ABS
29L-22216-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#3
BUSH, FORMED
90383-20033-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-124T2-00
Superseded by 90387-1210W-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BELT, TIMING
29L-22266-01-00
|
$84.99 | ||
|
Unavailable |
|||
|
#6
PULLEY
29L-22267-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
90201-202H3-00
|
$5.49 | ||
|
Unavailable |
|||
|
#8
O-RING
93210-35389-00
Superseded by 93210-347A1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, PULLEY
46X-22268-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#10
CIRCLIP, OUTER
93440-10123-00
|
$1.90 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
95026-08020-00
Superseded by 95027-08020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90109-10554-00
Superseded by 90109-10453-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
UNAVAILABLE IN PRICE BOOK (9020
90201-10269-00
|
|||
|
Unavailable |
|||
|
#14
NUT, U
95601-10100-00
Superseded by 95617-10100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, DUST
29L-2217H-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-12729-00
Superseded by 90201-12047-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
