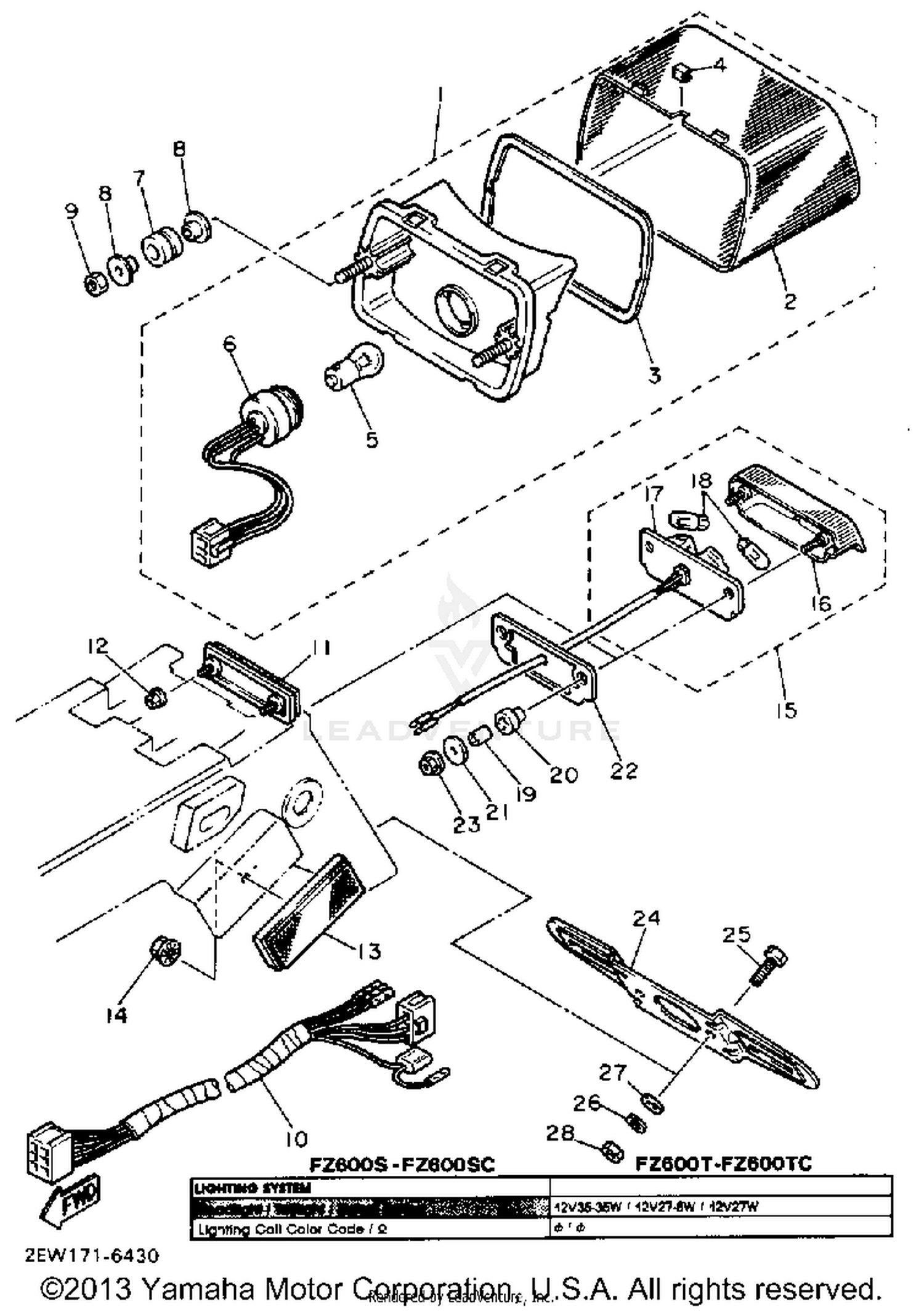

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
1UJ-84710-A0-00
|
$195.99 | ||
|
Unavailable |
|||
|
#2
LENS, TAILLIGHT
1FN-84721-E0-00
|
$41.99 | ||
|
Unavailable |
|||
|
#3
GASKET, TAIL LENS
47X-84723-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
1A2-84718-40-00
|
$6.99 | ||
|
Unavailable |
|||
|
#5
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CORD ASSEMBLY
1UJ-84735-A0-00
|
$34.99 | ||
|
Unavailable |
|||
|
#7
DAMPER (11H-83541-00)
16G-84736-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-07037-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
CORD, TAILLIGHT
2AX-84717-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#11
REAR REFLECTOR ASSY
1FK-85130-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
LICENSE LIGHT UNIT ASSY (4H3-8
2AX-84745-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#16
BODY, LICENSE LIGHT
2AX-84749-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#17
BASE, LICENSE LIGHT
2AX-84741-00-00
|
$14.18 | ||
|
Unavailable |
|||
|
#18
BULB, METER 12V 3.8W
3F9-84744-00-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
3F9-84757-00-00
Superseded by 90387-066H9-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER
3F9-84553-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPECIAL
3F9-84754-00-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAT, BASE
3F9-84742-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
BRACKET, LICENSE (36Y-84751-E1-
36Y-84751-E1-98
|
$90.99 | ||
|
Unavailable |
|||
|
#25
BOLT
97016-06016-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
